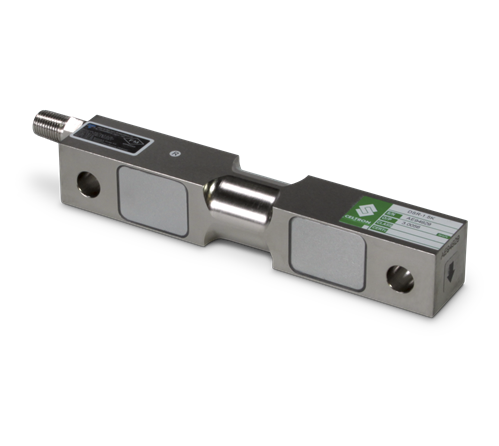

VPG® Celtron® DSR Alloy Steel, Double-Ended Beam Load Cell

Double-ended beam with center loading. Designed for tank, hopper and silo applications. Capacities range from 1,000 lb to 75,000 lb. Complete with 25 ft of load cell cable.

Request More Information

Approvals

Some approval documents are available to view by clicking the icons below.

WARNING: Cancer and Reproductive Harm California Proposition 65

rl-VPG-Celtron-DSR-double-ended-beam-load-cell

HD View

DSR Load Cell Specifications

Full Scale Output:
3.0 mV/V

Output Resistance:
700 (± 5) ohm

Input Resistance:
770 (± 10) ohm

Material/Finish:
High-alloy steel, nickel plated

Temperature:
Operating: 0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 15 VDC

Nonlinearity:
0.03% full scale

Hysteresis:
0.02% full scale

Insulation Resistance:
5,000 megohm

Deflection at Capacity:
1,000 to 3,000 lb: 0.01 in
5,000 lb: 0.015 in
10,000 to 20,000 lb: 0.022 in
25,000 lb: 0.036 in
50,000 lb: 0.052 in
75,000 lb: 0.07 in

Cable Length:
25 ft

Cable Diameter:
1,000 to 25,000 lb: 0.200 in
50,000 to 75,000 lb: 0.305 in
Polyurethane jacket

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

Warranty:
One-year limited

Approvals:
cFMus

DSR Load Cell Dimensions

Rated Capacity	A1	A2	C	D	E	F
lb/in
1,000 to 5,000	0.50	1.25	1.25	1.25	7.50	6.25
10,000 to 25,000	0.81	1.99	1.44	1.94	8.75	7.50
50,000	1.31	3.00	2.44	2.94	13.50	11.50
75,000*	1.31	—	2.44	2.94	13.50	11.50
*75,000lb capacity has a square center

Resources / Downloads

Catalogs

Title	Download	Email
Celtron DSR Load Cell Catalog Page	Download	Email

Manuals

Title	Version	Revision	Download	Email	Category	Archived
Load Cell and Weigh Module Handbook		D	Download	Email	Load Cells\|Weigh Modules	No

Sales Literature

Title	Collateral Wizard	Request	Download	Email	Category
Load Cell and Weigh Module Selection Guide		Request	Download	Email	Load Cells\|Weigh Modules

White Papers

Title	Download	Email	Category
Choosing Load Cells for Tough Applications	Download	Email	Load Cells

Parts

Part #	Description	List Price	Cart / Quote
30080	Load Cell,DEB DSR-1K 1,000 lb 25ft Celtron 3mV/V 700 OHM WW IP67	List Price: $525.00	View
30081	Load Cell,DEB DSR-1.5K- 1,500 lb 25ft Celtron 3mV/V 700 OHM WW IP67	List Price: $525.00	View
30088	Load Cell,DEB DSR-2K 2,000 lb 25ft Celtron 3mV/V 700 OHM WW IP67	List Price: $525.00	View
30089	Load Cell,DEB DSR-2.5K 2,500 lb 25ft 3mV/V 700 OHM WW IP67	List Price: $525.00	View
30091	Load Cell,DEB DSR-3K 3,000 lb 25ft 3mV/V 700 OHM WW IP67	List Price: $525.00	View
30094	Load Cell,DEB DSR-5K 5,000 lb 25ft Celtron 3mV/V 700 OHM WW IP67	List Price: $525.00	View
30095	Load Cell,DEB DSR-10K 10,000 lb 25ft Celtron 3mV/V 700 OHM WW IP67	List Price: $610.00	View
30096	Load Cell,DEB DSR-15K 15,000 lb 25ft Celtron 3mV/V 700 OHM WW IP67	List Price: $610.00	View
30097	Load Cell,DEB DSR-20K 20,000 lb 25ft Celtron 3mV/V 700 OHM WW IP67	List Price: $610.00	View
30098	Load Cell,DEB DSR-25K 25,000 lb 25ft Celtron 3mV/V 700 OHM WW IP67	List Price: $610.00	View
30099	Load Cell,DEB DSR-50K 50,000 lb 25ft Celtron 3mV/V 700 OHM WW IP67	List Price: $875.00	View
30100	Load Cell,DEB DSR-75K 75,000 lb 25ft 3mV/V 700 OHM WW IP67	List Price: $875.00	View
