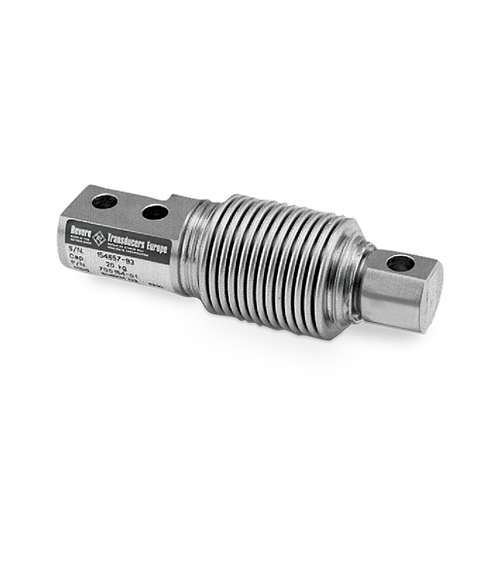

VPG Revere SHB Stainless Steel, Single-Ended Beam Load Cell

Constructed of stainless steel and features a welded seal for tough industrial environments where high accuracy and low profiles are required. Capacities range from 20 kg to 200 kg. Complete with 10 ft of load cell cable.

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO FM CUS

WARNING: Cancer and Reproductive Harm California Proposition 65

Full Scale Output:
2.0 mV/V

Output Resistance:
350 (±3.5) ohm

Input Resistance:
460 (±3.5) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated:
14 °F to 104 °F (-10 °C to 40 °C)
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Welded-seal, IP67

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.02% full scale (SHB-A3)

Non-repeatability:
0.01% full scale

Insulation Resistance:
5,000 megohm

Deflection at Capacity:
0.4 mm

Cable Length:
10 ft

Cable Color Code:
Green +Excitation
Black –Excitation
White +Signal
Red –Signal

Warranty:
One-year limited

Approvals:
cFMus
NTEP

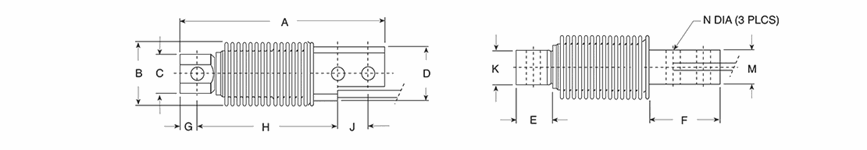

Rated Capacity A B C D E F G H J K M N
kg/mm
20 to 200 120.0 38.0 22.9 31.7 21.2 42.0 10.0 82.0 18.0 20.0 20.0 8.20





Resources / Downloads

Title Download Email
Revere SHB Load Cell Catalog Page Download Email

Title Version Revision Download Email Category Archived
Load Cell and Weigh Module Handbook D Download Email Load Cells|Weigh Modules No

Title Collateral Wizard Request Download Email Category
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules

Title Download Email Category
Choosing Load Cells for Tough Applications Download Email Load Cells

Parts

Part # Description List Price Cart / Quote
28801 Load Cell,SEB SHB-B10- 20kg-10P5 20kg 10ft RTI 2mV/V 350 OHM EW NTEP III/IIIL 3S/10M FM SST WS IP67

List Price: $455.00

28802 Load Cell,SEB SHB-B10- 50kg-10P5 50kg 10ft RTI 2mV/V 350 OHM EW NTEP III/IIIL 3S/10M FM SST WS IP67

List Price: $455.00

28803 Load Cell,SEB SHB-B10- 0.1t-10P5 100kg 10ft RTI 2mV/V 350 OHM EW NTEP III/IIL 3S/10M FM SST WS IP67

List Price: $455.00

28804 Load Cell,SEB SHB-B10- 0.2t-10P5 200kg 10ft RTI 2mV/V 350 OHM EW NTEP III/IIIL 3S10M FM FM SST WS IP67

List Price: $455.00
