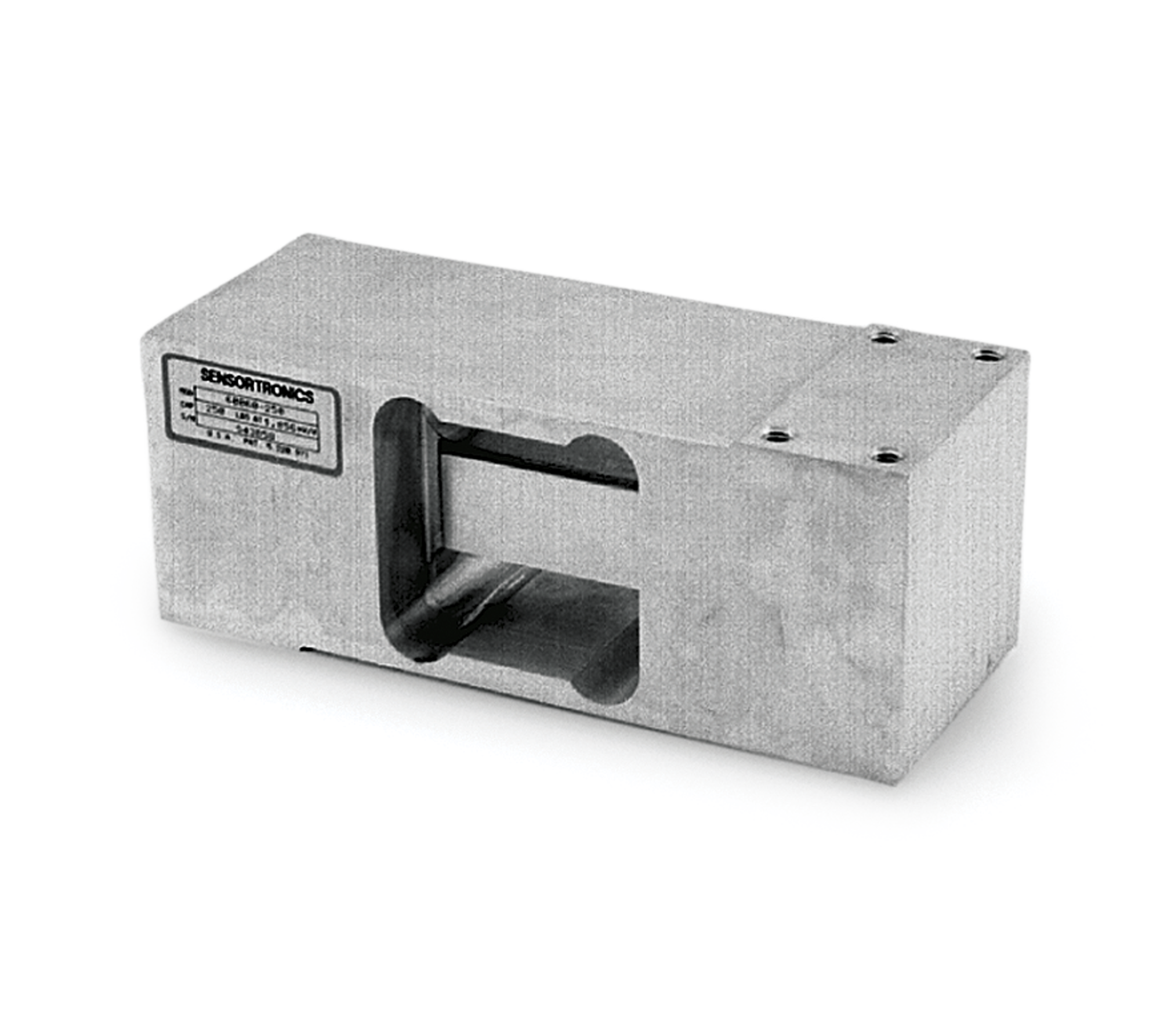

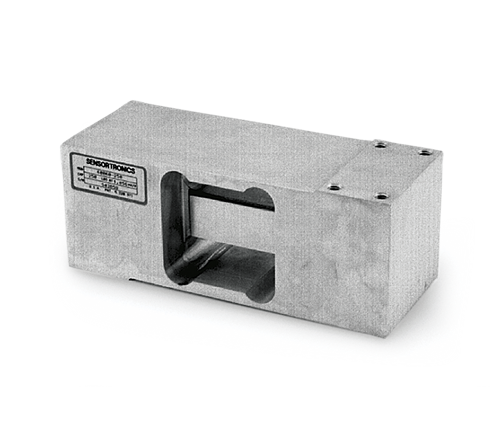

VPG Sensortronics 60060 Aluminum, Single Point Load Cell

Full Scale Output:
2.0 mV/V

Output Resistance:
349 to 355 ohm

Input Resistance:
400 nominal ohm

Material/Finish:
Aluminum, clear anodized

Temperature:
Compensated:
14 °F to 104 °F (-10 °C to 40 °C)
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 10 V DC (15 V maximum)

Combined Error:
0.02% full scale

Insulation Resistance:
5,000 megohm

Deflection at Capacity:
100 to 250 lb: 0.010 in
500 to 2,000 lb: 0.006 in

Cable Length:
10 ft

Cable Diameter:
0.200 in
Polyurethane jacket

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

Max Platform Size:
30 × 30 in

Warranty:
One-year limited

Approvals:
cFMus
NTEP
