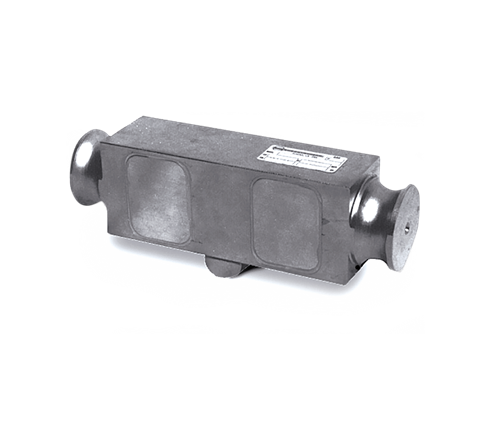

VPG Sensortronics 65040A Alloy Steel, Double-Ended Beam Load Cell

Nickel plated and environmentally protected with stainless steel side plates. Designed for center mounting and double link loading. Capacities range from 25,000 lb to 125,000 lb. Complete with 35 ft of load cell cable.

Request More Information

Approvals

Some approval documents are available to view by clicking the icons below.

WARNING: Cancer and Reproductive Harm California Proposition 65

rl-VPG-sensortronics-65040A-double-ended-beam-load-cell

HD View

65040A Load Cell Specifications

Full Scale Output:
3.0mV/V

Output Resistance:
686 to 714 ohm

Input Resistance:
699 to 707 ohm

Material/Finish:
High-alloy steel, nickel plated

Temperature:
Compensated:
14 °F to 104 °F (-10 °C to 40 °C)
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 10 V DC (15 V maximum)

Combined Error:
0.02% full scale

Insulation Resistance:
1,000 megohm

Cable Length:
35 ft

Cable Diameter:
25,000 lb: 0.200 in
50,000 to 125,000 lb: 0.305 in
Polyurethane jacket

Cable Coloring:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

Warranty:
One-year limited

Approvals:
cFMus
NTEP

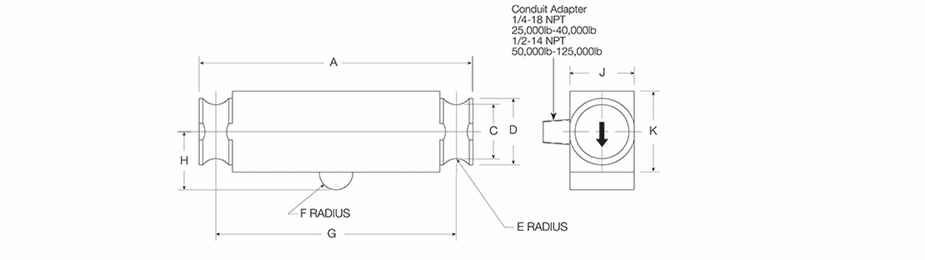

65040A Load Cell Dimensions

Rated Capacity	A	C	D	E	F	G	H	J	K
lb/in
25,000 to 50,000 SE	8.25	1.63	2.00	0.50	0.50	7.25	1.75	1.94	2.44
50,000 to 75,000	11.50	1.70	2.20	0.75	1.00	10.00	2.00	1.94	2.94
100,000 to 125,000	14.50	2.44	3.20	1.00	1.50	12.50	2.75	2.90	3.86

Resources / Downloads

Catalogs

Title	Download	Email
Sensortronics 65040A Load Cell Catalog Page	Download	Email

Manuals

Title	Version	Revision	Download	Email	Category	Archived
Load Cell and Weigh Module Handbook		D	Download	Email	Load Cells\|Weigh Modules	No

Sales Literature

Title	Collateral Wizard	Request	Download	Email	Category
Load Cell and Weigh Module Selection Guide		Request	Download	Email	Load Cells\|Weigh Modules

White Papers

Title	Download	Email	Category
Choosing Load Cells for Tough Applications	Download	Email	Load Cells

Parts

Part #	Description	List Price	Cart / Quote
21598	Load Cell,DEB 65040A25K- 1000 25,000lb 35ft 3mv/v 700 Ohm NTEP IIIL 10M FM WW IP67 SENSTRS	List Price: $673.00	View
21599	Load Cell,DEB 65040A40K- 1000 40,000lb 35ft 3mv/v 700 Ohm NTEP IIIL 10M FM WW IP67 SENSTRS	List Price: $805.00	View
69562	Load Cell,DEB 65040A50KSE 50,000lb 35ft 3mV/V 700 OHM WW NTEP IIIL 10M IP67	List Price: $805.00	View
21600	Load Cell,DEB 65040A50K- 1000 50,000lb 35ft 3mv/v 700 Ohm NTEP IIIL 10M FM WW IP67 SENSOTRONICS	List Price: $885.00	View
21601	Load Cell,DEB 65040A60K- 1000 60,000lb 35ft 3mv/v 700 Ohm NTEP IIIL 10M FM WW IP67 SENSOTRONICS	List Price: $885.00	View
21602	Load Cell,DEB 65040A75K- 1000 75,000lb 35ft 3mv/v 700 Ohm NTEP IIIL 10M FM WW IP67 SENSORTRONICS	List Price: $885.00	View
21603	Load Cell,DEB 65040A100K- 1000 100,000lb 35ft 3mv/v 700 Ohm NTEP IIIL 10M FM WW IP67 SENSTRS	List Price: $1,670.00	View
21604	Load Cell,DEB 65040A125K- 1000 125,000lb 35ft 3mv/v 700 Ohm NTEP IIIL 10M FM WW IP67 SENSTRS	List Price: $1,670.00	View

Related Products

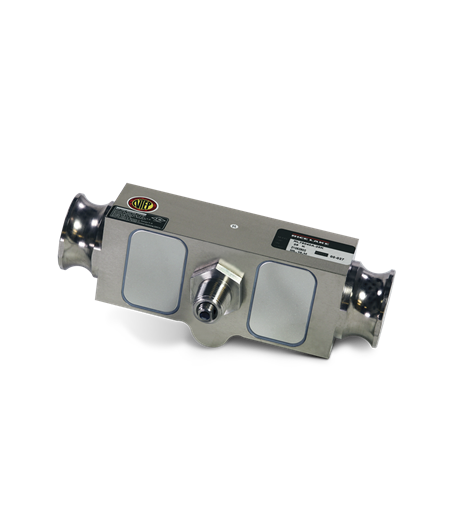

Rice Lake RL75040 Alloy Steel, Double-Ended Beam Load Cell
