VPG® Sensortronics® 65058S Stainless Steel, Double-Ended Beam Load Cell

As of: Saturday, November 23, 2024

rl-VPG-sensortronics-65058S-double-ended-beam-load-cell

Standard Features

The Vishay Sensortronics 65058S is a double-ended beam specifically designed for harsh environment vehicle weighing applications. This stainless steel, welded-seal load cell is an ideal substitute for traditional alloy steel, nickel plated units where corrosive or washdown conditions exist. This model is compatible with both the MVS and TSA mounts, and is available in capacities ranging from 20,000 lb to 125,000 lb. Each unit is provided with a standard 35 ft of load cell cable.

Approvals

WARNING: Cancer and Reproductive Harm California Proposition 65

65058S Load Cell Specifications

Full Scale Output:
3.0 mV/V

Output Resistance:
699 to 707 ohm

Input Resistance:
686 to 714 ohm

Material/Finish:
Stainless steel

Temperature:
Compensated:
14 °F to 104 °F (-10 °C to 40 °C)
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Welded-seal, IP67

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 10 V DC (15 V maximum)

Nonlinearity:
0.03% full scale

Hysteresis:
0.02% full scale

Insulation Resistance:
1,000 megohm

Cable Length:
35 ft
60 ft

Cable Diameter:
20,000 to 25,000 lb: 0.200 in
40,000 to 125,000 lb: 0.305 in Polyurethane jacket

Cable Coloring:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

Warranty:
One-year limited

Approvals:
cFMus
NTEP

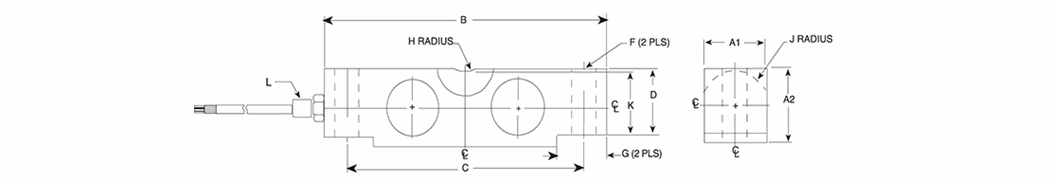

65058S Load Cell Dimensions

Rated Capacity	A1	A2	B	C	D	F	G	H	J	K	L
lb/in
20,000 to 25,000	1.69	1.94	7.75	6.50	1.70	0.68	1.38	0.75	0.90	1.63	1/4-18 NPT
40,000	1.94	2.44	10.25	8.50	2.10	0.81	1.93	1.00	1.12	2.00	1/4-18 NPT
50,000 to 75,000	2.44	2.94	10.25	8.50	2.65	1.06	1.93	1.00	1.37	2.54	1/2-14 NPT
100,000	2.44	3.44	10.25	8.50	2.65	1.06	1.93	1.00	1.37	2.54	1/2-14 NPT
125,000	2.90	3.86	15.25	12.75	3.43	1.62	3.13	1.50	1.80	3.30	1/2-14 NPT

Parts

Part #	Description
35 ft Cable
45475	Load Cell,DEB 65058S20K 1000 20000 lb 35ft SENSTRS 3mV/V 700 OHM WW NTEP IIIL 10M FM SST WS IP67
45476	Load Cell,DEB 65058S25K 1000 25000 lb 35ft SENSTRS 3mV/V 700 OHM WW NTEP IIIL 10M FM SST WS IP67
45477	Load Cell,DEB 65058S40K 1000 40000 lb 35ft SENSTRS 3mV/V 700 OHM WW NTEP IIIL 10M FM SST WS IP67
45478	Load Cell,DEB 65058S50K 1000 50000 lb 35ft SENSTRS 3mV/V 700 OHM WW NTEP IIIL 10M FM SST WS IP67
45479	Load Cell,DEB 65058S60K 1000 60000 lb 35ft SENSTRS 3mV/V 700 OHM WW NTEP IIIL 10M FM SST WS IP67
45480	Load Cell,DEB 65058S75K 1000 75000 lb 35ft SENSTRS 3mV/V 700 OHM WW NTEP IIIL 10M FM SST WS IP67
45481	Load Cell,DEB 65058S100K 1000 100000 lb 35ft SENSTRS 3mV/V 700 OHM WW NTEP IIIL 10M FM SST WS IP67
45482	Load Cell,DEB 65058S125K 1000 125000 lb 35ft SENSTRS 3mV/V 700 OHM WW NTEP IIIL 10M FM SST WS IP67
60 ft Cable
48698	Load Cell,DEB 65058S75K- 1000 75000lb 60ft Sensortronics 3mV/V 700 Ohm WW NTEP IIIL 10M FM WS IP67 SST
