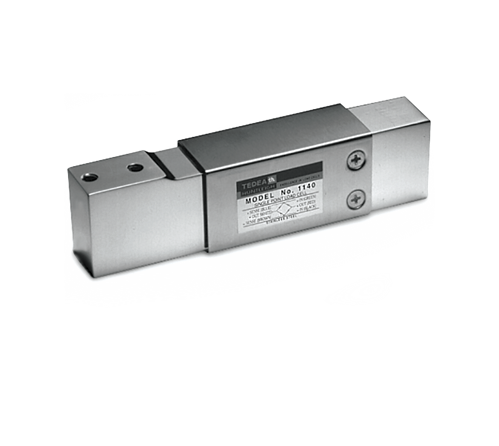

VPG Tedea-Huntleigh 1140 Stainless Steel, Potted Single-Point Load Cell

Low-profile, off-center loading load cell designed for direct mounting of weighing platforms, hanging scales and other low capacity beam applications. Stainless steel construction and a unique humidity-resistant protective coating provide long-term stability, even in harsh environments. Load cells are potted for improved performance in damp environments. Capacities range from 15 kg to 150 kg.

Request More Information

Approvals

Some approval documents are available to view by clicking the icons below.

LOGO FM CUS

WARNING: Cancer and Reproductive Harm California Proposition 65
rl-VPG-tedea-huntleigh-1140-load-cell

Full Scale Output:
2.0 mV/V

Output Resistance:
350 (±5) ohm

Input Resistance:
383 (±15) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated:
14 °F to 104 °F (-10 °C to 40 °C)
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP65

Safe Overload:
150% at center loading point, full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.02% full scale

Insulation Resistance:
2,000 megohm

Deflection at Capacity:
0.015 in

Cable Length:
10 ft

Cable Color Code:
Green +Excitation
Black –Excitation
Red +Signal
White –Signal
Blue +Sense
Brown –Sense

Max Platform Size:
15.75 × 15.75 in

Warranty:
One-year limited

Approvals:
cFMus

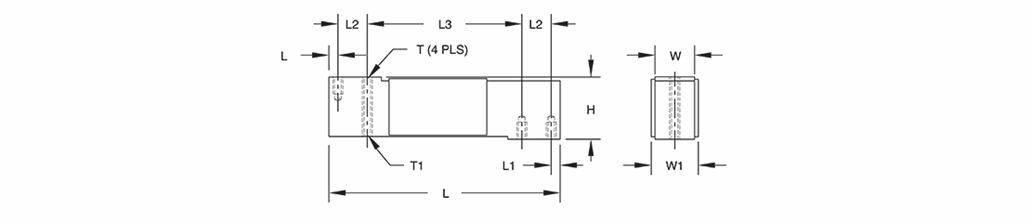

Rated Capacity H L L1 L2 L3 T T1 W W1
kg/mm
15 to 150 40.0 150.0 5.95 19.1 100.0 1/4-20 UNC x 10 DP 1/4-28 UNF x 10 DP 25.4 29.4





Resources / Downloads

Title Download Email
Tedea 1140 Load Cell Catalog Page Download Email

Title Version Revision Download Email Category Archived
Load Cell and Weigh Module Handbook D Download Email Load Cells|Weigh Modules No

Title Collateral Wizard Request Download Email Category
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules

Title Download Email Category
Choosing Load Cells for Tough Applications Download Email Load Cells

Parts

Part # Description List Price Cart / Quote
17451 Load Cell,SPT 1140-15kg 15kg 10ft 2mv/v 350 Ohm FM SST Class F Potted TH

List Price: $339.00
17452 Load Cell,SPT 1140-30kg 30kg 10ft 2mv/v 350 Ohm FM SST Class F Potted TH

List Price: $339.00
17468 Load Cell,SPT 1140-50kg 50kg 10ft 2mv/v 350 Ohm FM SST Class F Potted TH

List Price: $339.00
17485 Load Cell,SPT 1140-75kg 75kg 10ft 2mv/v 350 Ohm FM SST Class F Potted TH

List Price: $339.00
17453 Load Cell,SPT 1140-100kg 100kg 10ft 2mv/v 350 Ohm FM SST Class F Potted TH

List Price: $339.00
36466 Load Cell,SPT 1140-150kg 150kg 10ft TH 2mV/V 350 OHM Class F SST Potted FM

List Price: $339.00

Related Products

rl-RL1140-load-cell

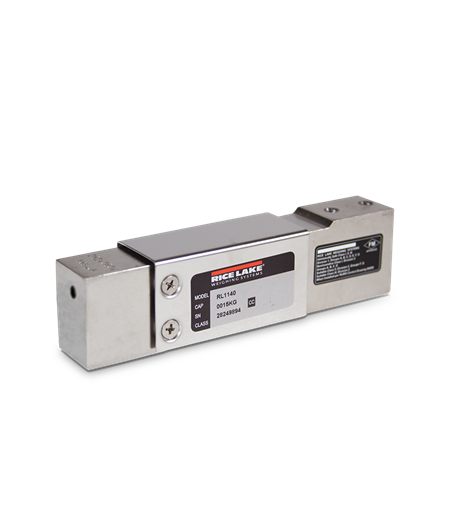

Rice Lake RL1140 Stainless Steel, Single Point Load Cell
