Weigh-n-Dimension Systems, iDimension Plus and BenchPro Package

Packages

  • Package 1 includes: iDimension Plus 1.5 m pole assembly, Rice Lake BenchPro shipping scale (150 lb)
  • Package 2 includes: iDimension Plus 4K 1.5 m pole assembly, Rice Lake BenchPro shipping scale (150 lb)
  • Package 3 includes: iDimension Plus 1.5 m pole assembly, Rice Lake BenchPro shipping scale (150 lb), kit for connection to shipping software, barcode scanner with four-port USB hub and computer cables
  • Package 4 includes: iDimension Plus 4K 1.5 m pole assembly, Rice Lake BenchPro shipping scale (150 lb), kit for connection to shipping software, barcode scanner with four-port USB hub and computer cables

iDimension Plus

  • Easy to assemble in 30 minutes or less
  • Displays dimensions in 0.2 seconds
  • No special package placement requirements
  • Includes touchscreen monitor
  • Capable to dimension opaque packaging
  • Measurement capabilities beyond Legal for Trade limits
  • Color camera included
  • High resolution color image, 2880 x 2160 pixels, available from iDimension Plus 4K
  • iDimension Desktop Wedge program available as free download from www.ricelake.com

BenchPro

  • Large six-digit backlight LCD display with 1-inch characters protected by heavy-duty tempered glass
  • USB HID interface
  • Powered through USB interface with dimensioner
Request More Information

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo OIML NMI (002)

WARNING: Cancer and Reproductive Harm California Proposition 65

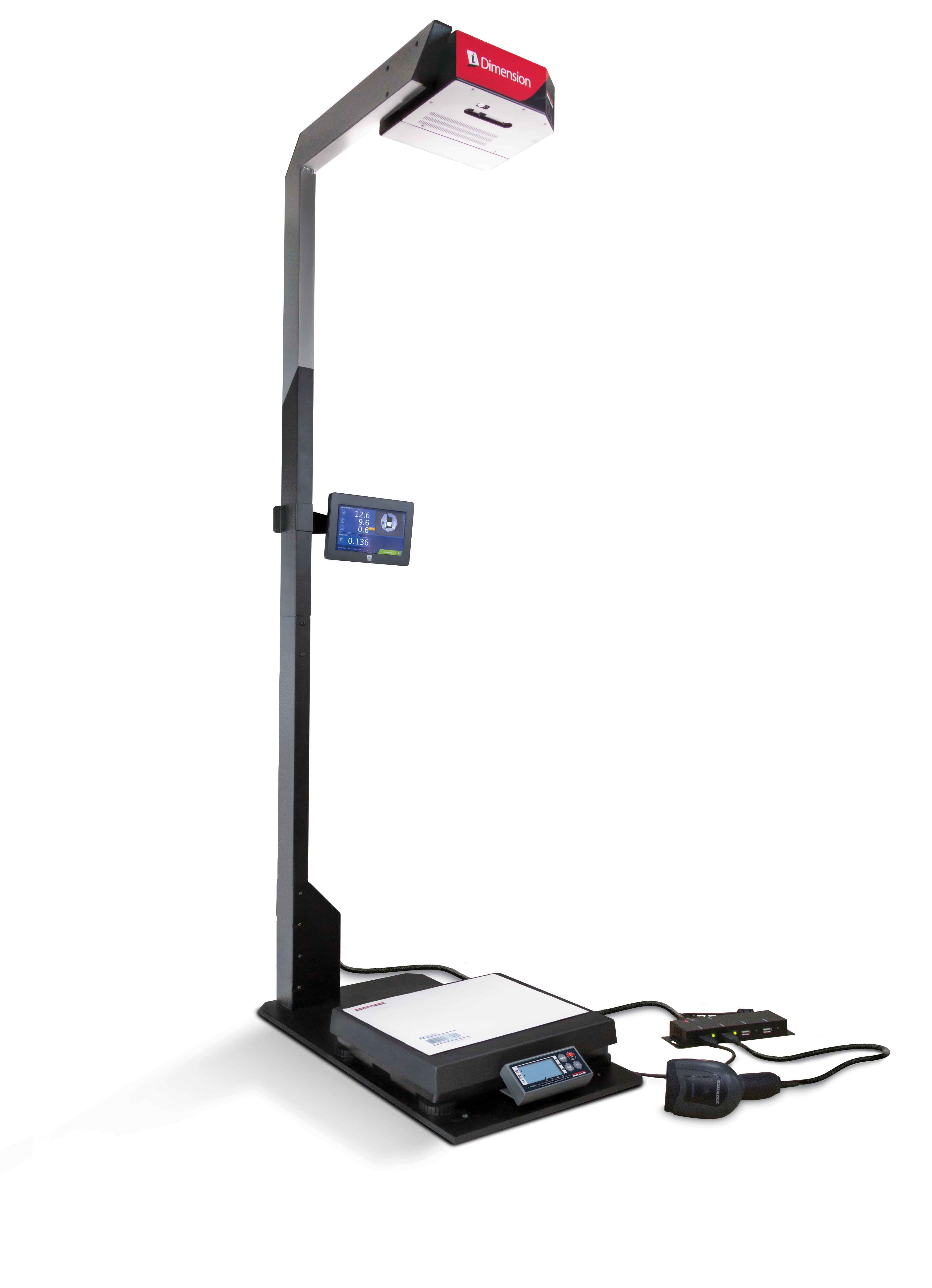

1 US Idim Package

Dimensioning and Weighing Systems that Check Shipments in Seconds

Through Rice Lake’s iDimension series, weighing and dimensioning packages can maintain efficiency without sacrificing accuracy. The Weigh-n-Dimension packages maximize the speed of the shipping process.

The iDimension Plus can be assembled in under an hour and calculates dimensions in 0.2 seconds. With industry-leading speeds, it cuts down on manual labor costs and provides greater accuracy. Combined with the BenchPro shipping scale, which provides a large six-digit display for visuals, operators can quickly calculate and view results. For facilities looking to upgrade shipping processes, the Weigh-n-Dimension package provides everything to update weighing and dimensioning methods.

Power Requirements:
110 to 240 V US power cord (included)

Communication Ports:
(1) USB A
(1) 10/100/1000 Base-T Ethernet

Display:
7 in (178 mm) touchscreen

Software Integration:
Simple API network integration through HTTP
requests, status checking and XML parsing

Temperature Range:
32 °F to 104 °F (0 °C to 40 °C)

Integration Tools:
Rest API
iDim Desktop Wedge with SDK (software developers kit)

Approvals:
NTEP 19-040A2
OIML R129/2000-A-NL1-20.05
NMI Certified
MID Certified
CE Marked

Warranty:
Two-year limited

Weigh Platter:
12 × 14 inch
150 × 0.05 lb / 75 × 0.02 kg capacity

Battery Power:
Four AA alkaline batteries, 6 V, with low battery indication at 4 V

Battery Life:
50 to 250 hrs depending on backlight and auto-shutdown settingws

Annunciators:
Six: zero, gross/brutto, net, W1/W2/W3 multi-range

Display:
Large six-digit backlight LCD display with 1-inch characters protected by heavy-duty tempered glass

Communication Port:
USB HID interface 2.0 full speed

Integration Tools:
Rest API
iDim Desktop Wedge with SDK (software developers kit)

Approvals:
NTEP 17-002
Measurement Canada AM-6050
CE Marked

Model 1.5 m
Platform Distance 60 in (1,500 mm)
Min/Max Min Max
Length 1.2 in (30 mm) 48 in (1,200 mm)
Width 1.2 in (30 mm) 32 in (800 mm)
Height 0 in (0 mm) 28 in (700 mm)
Division 0.2 in (5 mm)

Legal for Trade approved minimum and maximum measurements are available from the country specific certificate of approval.

Resources / Downloads

Title Download Email
Freight Dimensioner Installation Questionnaire Download Email
Rice Lake Software, End User License Agreement (EULA) Download Email
Rice Lake Software, Exhibit A to Annual EULA Download Email
Rice Lake Software, Third Party Agreement Download Email

Title View Download Email Category
ScaleTalk: Enabling Flat Detection on the iDimension Plus View Download Email Dimensioning
ScaleTalk: Connecting iDimension Plus to a 680 Indicator with USB View Download Email Dimensioning|Indicators / Controllers
ScaleTalk: Connecting iDimension Plus to a 680 Indicator with Serial RS-232 View Download Email Dimensioning|Indicators / Controllers
ScaleTalk: How to Add a BenchPro Scale to iDimension Plus View Download Email Bench Scales|Dimensioning|Packages and Parcels Dimensioning
Choosing the Best Dimensioner for Your Needs View Download Email Packages and Parcels Dimensioning|Pallets and Freight Dimensioning|Dimensioning

Parts

Package 1:

Part # Description List Price Cart / Quote
221294 iDim Plus kit, Package 1 iDim Plus 1.5m, Bench Pro 150lb shipping scale

List Price: $7,970.00

Package 2:

Package 3:

Package 4:

Options

Optional Factory Service and Support

Part # Description List Price Cart / Quote
202027 Support,Remote, Level 1 iDimension Plus configuration and scale setup

List Price: $250.00
Consult Optional Extended Warranty - two-year standard iDimension Plus additional one-year extended warranty

Consult
