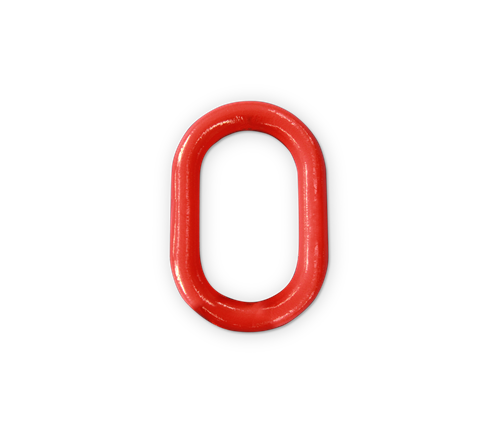

Weldless End Links
- Self-colored or hot-dip galvanized
- Forged carbon steel quenched and tempered
Weldless End Links Dimensions
| Part # | A | B | C | D | Safe Load* |
|---|---|---|---|---|---|
| F312L | 0.625 in | 1.00 in | 3.25 in | 2.32 in | 9,300 lb |
| 17810 | 0.875 in | 2.00 in | 5.13 in | 3.75 in | 12,000 lb |
| 21911 | 1.00 in | 2.25 in | 5.75 in | 4.25 in | 15,200 lb |
| 65430 | 1.25 in | 2.50 in | 7.00 in | 5.00 in | 26,400 lb |
| 21912 | 1.375 in | 2.75 in | 7.75 in | 5.50 in | 30,000 lb |
| *Do not exceed the safe load | |||||
Resources / Downloads
Parts
| Part # | Description | List Price | Cart / Quote |
|---|---|---|---|
| F312L | Link,5/8DIAx3-1/4ID |
List Price: $58.00 |
|
| 17810 | Link,Weldless 7/8x5-1/8 Inside Length 12,000 lb Alloy Steel Galvanized |
List Price: $175.00 |
|
| 21911 | Link,Weldless End 1 DIA Series G340 Dims: 2.25 X 5.75 ID 15,200 WLL Galvanized |
List Price: $344.00 |
|
| 65430 | Link,Forged 1-1/4 Dia x 7.00 Inside Length Machined Heat Treated Painted |
List Price: $159.00 |
|
| 21912 | Link,Weldless End 1-3/8 DIA Series G340 Dims: 2.75 X 7.75 ID 30,000 WLL Galvanized |
List Price: $488.00 |
