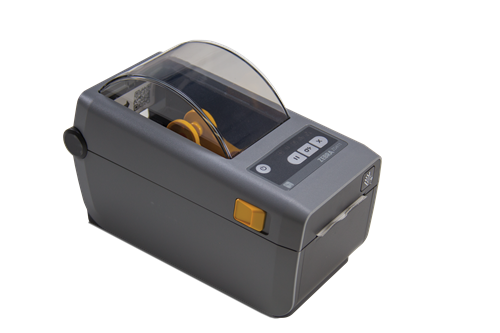

Zebra® ZD411 Label Printer

As of: Thursday, November 21, 2024

Save or Print to PDF

Standard Features

Open ACCESSTM design for easy media loading
Fully enclosed 5.0 in (127 mm) media compartment
Double-walled ABS case construction
EPL and ZPL® programming language, co-resident
32-bit RISC processor
8 MB SDRAM, 4 MB flash memory
Zebra E3 printhead energy control
Auto-calibration of media
Five resident expandable EPL2® fonts
Auto-switching 100 V and 240 V power supply
Linear and 2-D barcode symbologies
Transmissive and reflective media sensing
Head-up sensor
Tear-off mode
Certified Microsoft® Windows® drivers

Zebra ZD411 Specifications

Resolution:
203 dpi (8 dpmm)

Print Length:
0.005 to 39.0 in (0.125 to 991 mm)

Print Speed:
2 to 4 in per second (ips)

Media:
Width: 1.00 to 2.36 in (25 to 60 mm)

Interface:
USB, Ethernet, and Bluetooth (Serial Optional)

Label Length:
Minimum: 0.38 in (9.7 mm)
1.0 in with optional cutter
Maximum 39 in (991 mm)
Inner Core: 1.0 in
Max roll diameter: 5 in
Sensing: gap, black line, notch
Type: roll-fed, fan fold, die cut or continuous with or without black mark, tag stock

Bar Codes:
Code 11, Code 39, Code 93, Code 128, UPC-A, UPC-E, EAN-8, EAN-13, EAN-14, UPC-A and UPC-E with EAN 2 or 5 digit extensions, PLessey, POSTNET, Standard 2 of 5, Industrial 2 of 5, Interleaved 2 of 5, LOGMARS, MSI, Codabar, and GS1 DataBar (formerly RSS), PDF417, MicroPDF417, Code 49, Maxicode, Codablock, Data Matrix, QR code, Aztec

Power:
100 to 240 VAC, 50/60 Hz, US power cord

Temperature:
Operating:
-40 °F to 105 °F (-40 °C to 40.5 °C)

Dimensions:
8.5 × 4.5 × 6.0 in
(220 × 115 × 151 mm)

Warranty:
One-year limited

Parts

Part #	Description

216767	Printer, Label ZD411 203dpi, Direct Thermal, USB, US 120 VAC
219364	Printer, Label ZD411 203dpi, Thermal Transfer, USB,US 120 VAC

Options

Part #	Description

212815	Printer OPT, RS-232 ZD411 and ZD421 Series. Field Installable.
38941	Pen,Head Cleaning Box of 12 TLP2642,LP2242,LP2642,TLP3642,LP3642,TLP2046,TLP2242 TLP2044 Eltron
Label Stock/Ribbon
110346	Label,Direct 1.2x0.85IN 5IN DIA, 1IN Core, Perfed, Wound Out, 2710 LPR, High Grade Top Coated -10 Degree + Application Temperature
110347	Label,Direct 2.25x1.25IN 5IN DIA, 1IN Core, Perfed, Wound Out, 2100 LPR, High Grade Top Coated -10 Degree + Application Temperature
40332	Label,Roll DTL 2.25x2.00 5" Dia 1 in Core 1445 Per Roll Perfed Wound Out High Grade Top Coated -10 Degree + Application Temperature
110348	Label,Direct 2.25 x 3.0IN 5IN DIA, 1IN Core, Perfed, Wound Out, 950 LPR, High Grade Top Coated -10 Degree + Application Temperature
110349	Label,Direct 2.25x4.0IN 5IN DIA, 1IN Core, Perfed, Wound Out, 700 LPR, High Grade Top Coated -10 Degree + Application Temperature
65617	Label,Roll DTL 2.25x4.50 5" Dia 1 in Core 600 Per Roll Perfed Wound Out High Grade Top Coated - 10 Degree + Application Temperature
126092	Receipt Paper,DTL 2 in W x 574 ft L, 1 Ply, 5 in OD, 1 in Core, 2.4 mil DT2 or Zebra 1000D 6 RPC
207358	Ribbon,Thermal Transfer 2.25IN, 243FT, Wax, 1/2IN Core
Cables
41276	Cable Assy,DB9M To Blunt Male DB9 to blunt end cable 5 Feet PINOUT: Black Pin-5, Red Pin-3, Green Pin-2
79074	Cable, USB 6ft USB-A (male) to USB-B (male)
64794	Cable,Null Modem DB9F/M DB9F To DB9M, 6 feet
