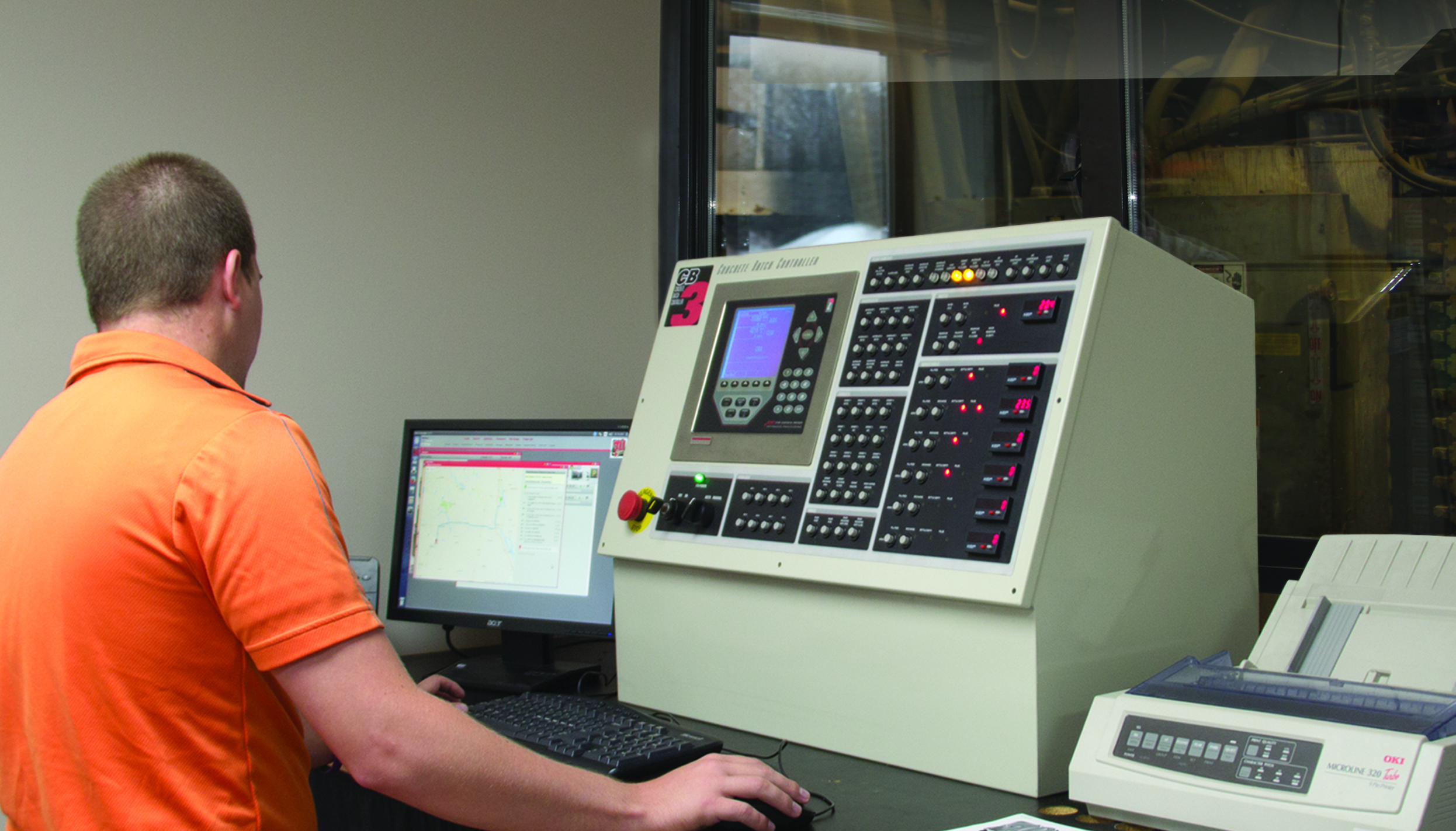

Get to Know the CB-3 Concrete Batch Controller
The CB-3 concrete batching controller is efficient and ideal for ready-mix and block plants. Everything from weighing raw material to automatic ticket printing and remote operations is controlled by the CB-3.
MSI Tension Link
The CB-3 concrete batching controller is efficient and ideal for ready-mix and block plants. Everything from weighing raw material to automatic ticket printing and remote operations is controlled by the CB-3. Built-in web servers allow users to control multiple processes from a remote workstation as long as they’re on the same network.
920I® HMI CONTROLLER
The 920i digital weight controller, providing accurate, high-speed weighing.
Power Control
- Keyed power switch
- Selectable auto/manual control
Auxiliary Control
- Up to 8 auxiliary controls
- All controls include status lights
Cement Control
- Choose 8 single speed or 4 dual speed gate controls
- Status lights on each gate
- Cement bin aeration on 4 bins
- Weigh hopper discharge, vibrator and aeration control
Aggregate Control
- Choose 8 single speed or 4 dual speed gate controls
- Status lights on each gate
- Weigh hopper discharge gate control
- Aggregate vibrator control
- Sand bin vibrator control
Plant Control
Comprehensive plant control includes status lights and manual override switches that can be configured in either momentary or maintain operation modes.
Manual Override Controls
- Dust collection system
- Alarm/horn
- Aggregate conveyor start/stop
- Air compressor start/stop
- Boot raise/lower
Status Lights
- Aggregate conveyor running
- Load complete
- Cement gate closed
- Aggregate gate closed
- Out of tolerance
- Air pressure OK
Water Control
The CB-3 supports both metered and weighed water with hot and cold feeds.
- Water controls with status lights
- Metered water pulse status light
- Reservoir discharge control and empty status light
- Adjustable tail water discharge in either manual or automatic mode
Admixture Control
Automated and manual control of admixtures
Pulse meters included, eliminating outboard control
Up to 6 admixtures or colors (option to go up to 10)
Fill/feed control and status lights
Discharge control and status lights
Bottle empty status lights
Mixer Control
Fully integrated mixer controls
Mixer start/stop controls
Mixer discharge control
Elevate Your Concrete Batch Control
The CB-3 easily integrates with concrete plant equipment, making it an ideal replacement for existing concrete batch controllers. A retrofit option is available to upgrade existing CB-2 systems to the CB-3 is the preferred solution for applications already familiar with automated concrete batching equipment.
