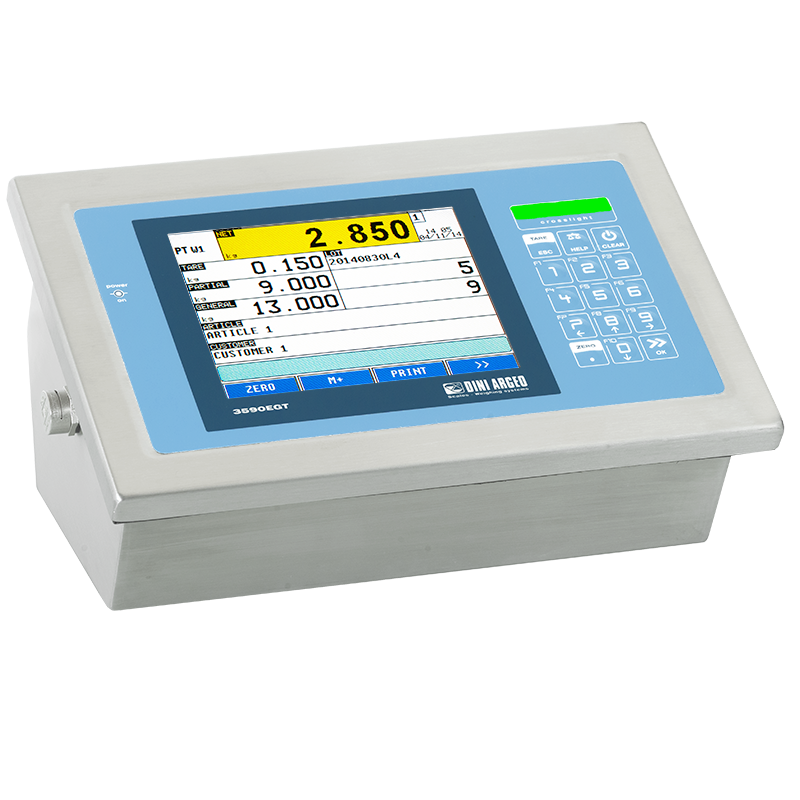

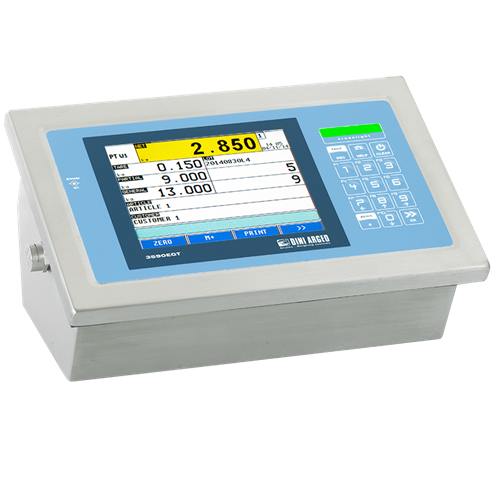

3590EGT 3GD Touchscreen Indicator for ATEX 2 and 22 Zones

5,7' colour touch screen display
Multilanguage software
15-key alphanumerical waterproof keyboard
3-way control light

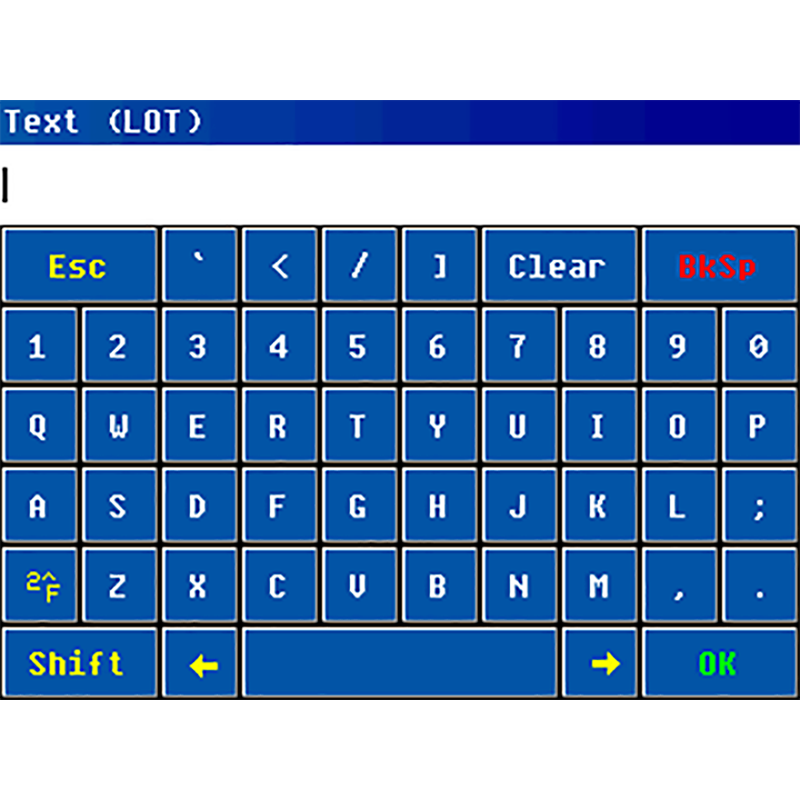

Selectable QWERTY, AZERTY o QWERTZ keyboard integrated in the touch screen
Stainless steel waterproof enclosure, with new IP68 protection system
Dimensions: 280x143x185mm
Suitable for use on the table, column or wall
Real time clock and permanent data storage
Fitted alibi memory, integrated on the motherboard
Slot for built-in micro SD for recording the configuration, logos, and customized screens (upon request)
Functions available with DINITOOLS utility
- Configuration, data entry and print formatting
- Recording and filing of all the information on PC
- Complete retrieval of the configuration
- Instrument calibration with numeric values
- Customization of the screens
24-bit A/D converter, 4 channels, up to 3200 conv./sec. and up to 8 signal linearisation points
4 independent analogue channels for reading of the weight
Connection with up to 16 analogue load cells of 350 Ohm (45 load cells of 1000 Ohm)
Up to 10.000e OIML or 3 x 3000e @ 0,3 µV/e CE-M legal for trade
Up to 1.000.000 displayable divisions for internal factory use, with internal resolution up to 3.000.000 points
Connectable to printers and labellers with free programmation of the printout formats
Power supply from 110-240Vac line or external rechargeable battery (recharge in safety zone).

3590EGT 3GD Touch Screen Indicator for ATEX 2 and 22 Zones

Weight indicator with a big touch screen display, for ATEX 2 & 22 areas classified at risk of explosion. Protection methods according to:

ATEX II 3G Ex nR IIB T6 Gc X for gases
ATEX II 3D Ex tc IIIC T85°C Dc IP68 X for dust.

Suitable for advanced industrial applications, it's fitted with 3 serial ports, configurable printouts and integrated alibi memory. CE-M approvable (OIML R-76 / EN 45501).

3590EGT 3GD Touch Screen Indicator for ATEX 2 and 22 Zones Specifications

I/O Section:

Two RS232 serial ports, for connection to printer, radio module, PC or PLC, badge reader or remote scale.
One RS485/RS232 serial port, for connection to printer, PC, PLC, or digital load cells.
4 optoisolated outputs, up to 16 with optional board.
2 optoisolated inputs, up to 8 with optional board.
Profibus or Modbus/TCP interface to install in safety zone (optional).
External Profinet, Ethernet/IP, EtherCAT, CANopen and DeviceNet interface to install in safety zone. (optional, only with standard AF01 weighing program).
Modbus RTU Interface.
Analog output DAC16O needs the expansion board IOEXPB.

Available Languages:

Menu selectable languages:IT, EN, FR, DE, ES, PT, PL*

* Polish available only on EGT-AF01, EGT-AF02, EGT-AF03, EGT-AF04, EGT-AF09, EGT-BATCH, EGT-BATCH1

Code pages available for the translation of messages and screens, using the Custom Language Tool program (downloadable in the Download section):
Windows 1252: EN, GA, IT, NO, PT, ES, SV, DE, FI, IS, FR, NL, SL
Windows 1250: PL, CS, SK, HU, SL, SH, RO, SQ, EN, DE
Windows 1251: RU, UK, BE, BG, SR, MK, EN
Windows 1253: EL, EN
Windows 1258: VI, EN, FR

Main Certifications:

EU Type Examination Certificate (45501:2015)
OIML R76
OIML R51 - MID
OIML R134 (AF09)
Australian legal for trade certificate of approval (NMI S788)

Application Software:

SUPPLIED AS STANDARD:
AF01: Totalization and formula weighing

OPTIONAL:
AF02: Pieces/quantity counting
AF03: Weighbridges - Input/Output vehicle
AF04: Statistical checking of prepackaged goods
AF05: Price compunting and industrial labelling
AF08: Wheel and axle static weighing with 2 or various platforms
AF09: Dynamic and static axle weighing with 2 platforms
BATCH1: Single product dosage systems in loading and unloading
BATCH: Multicomponent dosage systems in loading and unloading (IOEXPB board must be included)

Resources / Downloads

Articles

Title	View	Email	Category	Type
Inventory Weighing Solutions and Programmes		Email	Weight Indicators\|Bench Scales\|Pallet Truck Scales\|Floor Scales	Articles

Parts

Available versions

	Part #	Description	List Price	Cart / Quote
	3590EGTC3GD	Colour Touch Screen indicator, ATEX 3GD, with AF01 software. Stainless steel waterproof IP68 case. Protection degree: ATEX II 3G Ex nR IIB T6 Gc X for gases and ATEX II 3D Ex tc IIIC T85øC Dc IP68 X for dust. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).	Consult	View

Options

Optional power supply cords

	Part #	Description	List Price	Cart / Quote
	EXACB4	4x0.5 mmý armoured cable (suitable for Ex zones). PVC inner sheath. Armour: galvanised steel wire braid. Outer sheath PVC, diameter 7.3 mm. Temperature range: -30 / +80 øC. Minimum bending radius >/= 10 x O.D. _/m	Consult	View

Part #	Description	List Price	Cart / Quote
AF02	Software for piece/quantity counting.	Consult	View
AF03GT	Software for weighbridges, vehicle In/Out. For 3590 "TOUCH SCREEN" weight indicators.	Consult	View
AF04GT	Software for statistical checking of prepackaged goods. For 3590 "TOUCH SCREEN" weight indicators.	Consult	View
AF05	Software for price computing and industrial labelling.	Consult	View
AF08	Software for static wheel and axle weighing with 2 or more pads.	Consult	View
AF09	Software for dynamic and static axle weighing with 1 or 2 pads.	Consult	View
BATCH1	Software for single product dosage systems in loading and unloading.	Consult	View
BATCH	Software for multicomponent dosage systems in loading and unloading. NOTE: For 3590, IOEXPB expansion board is required.	Consult	View

Software to fill in the databases

	Part #	Description	List Price	Cart / Quote
	DBM	PC software for quick filling out of the databases. For 3590Exx and CPWExx instruments (the price is intended for the license to manage one scale).	Consult	View

Junction Box / Boards - Load Cell cables

Part #	Description	List Price	Cart / Quote
3590E4CH	Built-in board for multiple quick scale connection.	Consult	View
JB4QA	ATEX equalisation box made of ABS IP67, for up to 4 cells. 4 + 1 fairleads. Marking: ATEX II 2G Ex ib IIC T6 Gb for gases, ATEX II 2D Ex tb IIIC T115øC Db IP65 for dust. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).	Consult	View
JB4QAI	ATEX equalisation box made of stainless steel IP66 for up to 4 cells. 4 + 1 fairleads. Marking: ATEX II 2G Ex ib IIC T6 Gb for gases, ATEX II 2D Ex tb IIIC T115øC Db IP65 for dusts. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).	Consult	View
LCCB	Shielded cable 6x0.25 mmý (suitable for Ex zones). PVC inner sheath. Tinned copper braid shielding. PVC outer sheath, diameter 5.8 mm. Temperature range: -40 / +80 øC. Minimum bending radius >/= 6 x O.D. _/m	Consult	View
LCCBA	Armoured cable 6x0.25 mmý (suitable for Ex zones). PVC inner sheath, diameter 5mm. Iron-zinc alloy armour. Transparent PVC outer sheath, 8 mm diameter. Temperature range: -15 / +70 øC. Minimum bending radius >/= 5 x O.D. _/m	Consult	View

	Part #	Description	List Price	Cart / Quote
	KCEM	Plates and Welmec form for legal trade use of a scale. NET PRICE. Service available in combination with a Dini Argeo indicator.	Consult	View
	ECEM-AU	Single platform/scale legal-for-trade approval for Australia.	Consult	View

ATEX battery and battery charger

Part #	Description	List Price	Cart / Quote
BP6ESTATEX3GD	IP65 stainless steel, external ATEX battery pack, for 2 and 22 zones. Marking: ATEX II 3G Ex ec IIC T6 Gc X for gas and ATEX II 3D Ex tc IIIC T85øC Dc IP65 X for dust. For Dini Argeo ATEX 3GD instruments. ATTENTION: rechargeable in safe zone only, connectable and disconnectable from the weighing system also in hazardous area. (Battery charger not included).	Consult	View
BTCB3GD	Cable for BP6ESTATEX3GD battery connection.	Consult	View
BP6CB	Battery charger for safe area, for BP6ESTATEX3GD ATEX battery.	Consult	View

Declaration of ATEX conformity

	Part #	Description	List Price	Cart / Quote
	DCATEX3590E3GD	Declaration of ATEX conformity of the assembly. Ex II 3G IIB T6 Gc X and Ex II 3D IIIC T115øC Dc X system, with relative label of whole system, for ATEX certified (3590EGTC3GD) or NOT ATEX certified Dini Argeo indicator (in the latter case to be installed in a safe area) connected to a mechanical structure with ATEX load cells (each cell must be certified with CCATEX or CCATEX3GD option). Provided with descriptive document of the assembly and ATEX EU declaration of conformity of the assembly (EN, DE, FR, ES and IT).	Consult	View

Storing the weighs (only at time of order)

	Part #	Description	List Price	Cart / Quote
	SWM	"WeiMonitor" PC program to monitor and record in real time weighs performed on the connected scale (the price is intended for the license to manage one scale).	Consult	View

Part #	Description	List Price	Cart / Quote
OBRF2G4-USB	External 2.4 GHz radio frequency module, USB cable l=1m. Power supply directly from the USB port. Max. functioning distance, in appropriate environmental and installation conditions: 45 m indoors, 140 outdoors. 39 configurable channels.	Consult	View
ETHD	Built-in Ethernet interface. Speed from 10 to 100 Mbps, TCP, UDP, IP, ARP, ICMP, Ethernet Mac protocols.	Consult	View
OBWIFI3GD-4	WIFI module for ATEX zones, with ABS IP66 case, 3 m shielded cable, and power supply from indicator. Protection: ATEX II 3G Ex ec IIB T6 Gc X for gases and ATEX II 3D Ex tc IIIC T85øC Dc IP66 X for dust. Max. functioning distance, in appropriate environmental and installation conditions: 30m indoors, 70m outdoors. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR and IT).	Consult	View

Part #	Description	List Price	Cart / Quote
PROFINET1S	RS485 to ProfiNET interface, for DIN rail mounting. With UL marked PCB, Terminal block, plastic box and labels (if expected).	Consult	View
ETHERNETIP1S	RS485 to Ethernet IP interface, for DIN rail mounting. With UL marked PCB, Terminal block, plastic box and labels (if expected).	Consult	View
ETHERCAT1S	RS485 to EtherCAT interface, for DIN rail mounting. With UL marked PCB, Terminal block, plastic box and labels (if expected).	Consult	View
DEVICENET1S	RS485 to DeviceNET interface, for DIN rail mounting. With UL marked PCB, Terminal block, plastic box and labels (if expected).	Consult	View
CANOPEN1S	RS485 to CANOPEN interface, for DIN rail mounting. With UL marked PCB, Terminal block, plastic box and labels (if expected).	Consult	View
191750	Cable,Fieldbus option WE503	List Price: $26.00	View
FB1SINST	Installation, configuration and testing of Fieldbus Module 1S. NET PRICE.	Consult	View

	Part #	Description	List Price	Cart / Quote
	IOEXPB	Built-in board with 12 OUT and 6 IN (mounting and cable gland excluded). It includes expansion circuit of the power supply range of the indicator (8-40Vdc). NOT COMPATIBLE WITH 3590E4CH AND TPRXT. With UL marked PCB, Terminal block, plastic box and labels (if applicable).	Consult	View

	Part #	Description	List Price	Cart / Quote
	DAC16OSER	Built-in RS232 / RS485 optoisolated analog output, 0-4/20 mA, 0-10VDC . For DFW, 3590 Touch Screen. Output -10/+10VDC upon request, only at time of order.	Consult	View
	DAC16O-2	Built-in optoisolated analog output, 0-4/20 mA, 0-10VDC (cable gland excluded). For DFW, 3590 and CPW indicators. Output -10/+10VDC upon request, only at time of order. NOTE: For 3590, IOEXPB option board is required, available depending on the model.	Consult	View

ATEX 2GD Remote Button Control

	Part #	Description	List Price	Cart / Quote
	EXPHBN	EX 2GD hand control with 2 buttons and cable gland (optional connection cable). Protection II 2G Ex db eb IIC T6 Gb for gases, II 2D Ex tb IIIC T80øC Db for dust.	Consult	View
	EXACB4	4x0.5 mmý armoured cable (suitable for Ex zones). PVC inner sheath. Armour: galvanised steel wire braid. Outer sheath PVC, diameter 7.3 mm. Temperature range: -30 / +80 øC. Minimum bending radius >/= 10 x O.D. _/m	Consult	View

Printers/Labelers for safe zones

Part #	Description	List Price	Cart / Quote
OBTPRB	Table thermal printer. For weight indicator, with IP40 ABS case, 1,5 m connection cable and internal power supply. Thermal paper roll included as standard.	Consult	View
CODEPG	Service for loading a customised code-page on TPR printer (standard is PC437 - Central Europe, USA)	Consult	View
LP542TE	Thermal transfer or direct thermal labelling machine Supplied with standard peel mechanism. Maximum printing size 25400 x 108 mm. Maximum roll O 127 mm and width up to 112 mm. Label roll and ribbon not included.	Consult	View
SMTPLUS-1	Thermal transfer or direct termal labeller. Peel-off kit in option.	Consult	View
PRNSERV	Custom-made ticket (up to 4 layouts). NET price.	Consult	View
APRNSERV	Custom-made label (up to 4 layouts). NET price.	Consult	View

	Part #	Description	List Price	Cart / Quote
	RSCBTW	4-core twisted shielded cable (2x2x0.34 mmý), for RS485 communication or analogue output. Polyolefin inner sheath. Tinned copper braid shielding. Outer sheath PVC, diameter 7mm. Temperature range: -30 / +80 øC. Minimum bending radius >/= 6 x O.D. _/m	Consult	View
	ETHCBEX	Multi-core cable (4x2xAWG24) suitable for Ethernet connections in Ex-zones (connectors and cable gland only installed with S6 service). First shield: aluminium/polyester tape, second shield: tinned copper braid (coverage = 85% - EMC 89/336). Outer sheath: PVC, diameter 6.3mm. Temperature range: -30 / +80 øC. Minimum bending radius >/= 8 x O.D. Minimum length 10 m. _/m	Consult	View

Part #	Description	List Price	Cart / Quote
STFI-1	AISI 304 stainless steel fixing bracket. For weight indicator wall mounting.	Consult	View
STFR-1	AISI 304 stainless steel fixing bracket with adjustable inclination. For weight indicator wall mounting.	Consult	View
STFA12	Stainless steel bracket for mounting the ATEX battery on column. Compatible with "DFWBP76ATEX..", "IECEXB", "BP6ESTATEX3GD.." and "BP6V12A".	Consult	View
PANEL-ST	Bracket for mounting the indicator on the panel.	Consult	View
CSP38I-1	AISI 304 stainless steel column 450x450mm, h=917mm, O 38mm. For the indicators of the DINI ARGEO and SCALE HOUSE range.	Consult	View

Part #	Description	List Price	Cart / Quote
ZBA1S	Intrinsic protection three channel Zener barrier. Specific for connection to load cells, for mounting on DIN rail in a safe area, or in a flame-proof case. Marking: ATEX/IECEx II (1) GD [Ex ia Ga] IIC [Ex ia Da] IIIC. Manual and ATEX UE CONFORMITY DECLARATIONS (available in EN, DE, FR, ES and IT).	Consult	View
ZBINST	Installation of the ZBA1S / PFB485EX zener barrier inside the indicator case. Note: The cable (LCCB for barrier ZBA1S, RSCBTW for barrier PFB485EX) of the desired length must also be purchased. NET PRICE.	Consult	View
LCCB	Shielded cable 6x0.25 mmý (suitable for Ex zones). PVC inner sheath. Tinned copper braid shielding. PVC outer sheath, diameter 5.8 mm. Temperature range: -40 / +80 øC. Minimum bending radius >/= 6 x O.D. _/m	Consult	View
PFB485EX	Protection barrier for RS485, for direct connection in safe area. Max cable length: 200m.	Consult	View
RSCBTW	4-core twisted shielded cable (2x2x0.34 mmý), for RS485 communication or analogue output. Polyolefin inner sheath. Tinned copper braid shielding. Outer sheath PVC, diameter 7mm. Temperature range: -30 / +80 øC. Minimum bending radius >/= 6 x O.D. _/m	Consult	View
KMB4-1	Kit of 3 ATEX Zener barriers for load cells, in an ABS box. For up to 4 load cells of 350 ohm, for intrinsic protection weighing systems in a dangerous area. Marking of the whole box with three Zener barriers: ATEX II 3(1)G Ex nA [ia Ga] IIC T4 Gc (-20øC = Ta = +40øC) for gas, ATEX II 3(1)D Ex tb [ia Da] IIIC T130øC Dc IP65 (-20øC = Ta = +40øC) for dusts. Provided with safety instructions and the ATEX EU declaration of conformity (EN and IT).	Consult	View
KZBA-1	ATEX ABS housing kit with Zener Barrier ZBA1S for load cells. For intrinsically safe weighing systems in a dangerous zone. Dimensions 179x359x166,5mm. It can connect up to 8 350 Ohm load cells. Marking of housing + Zener Barrier ZBA1S: ATEX II 3(1)G Ex nA [ia Ga] IIC T4 Gc X for gas, ATEX II 3(1)D Ex tc [ia Da] IIIC T135øC Dc IP66 X for dust. Provided with safety instructions and the ATEX EU declaration of conformity (EN and IT).	Consult	View

	Part #	Description	List Price	Cart / Quote
	PG7EX	10 PG7 metallic cable gland set for ATEX indicators. Complete with ferrules and seals. Cable diameter: 3 to 6.5 mm.	Consult	View
	PG9EX	10 PG9 metallic cable gland set for ATEX indicators. Complete with ferrules and seals. Cable diameter: 4 to 8 mm.	Consult	View

	Part #	Description	List Price	Cart / Quote
	TECSUP	Technical assistance by telephone upon request.	Consult	View
	ECEMDOC	Printed EU declaration of conformity, EU certificate of verification, test certificate and metrological book (free download from our website, only for approved CE-M products). NET _.	Consult	View

Related Products

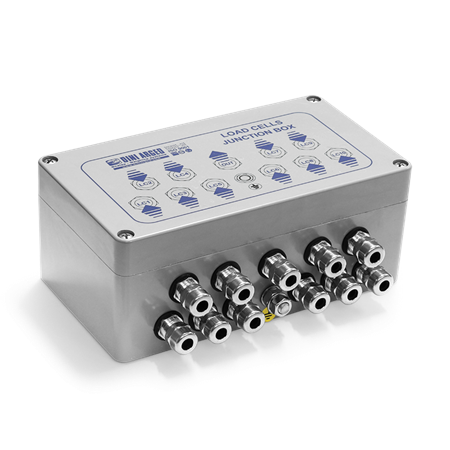

JB10Q Equalized Junction Box, with Up to 10 Load Cell
