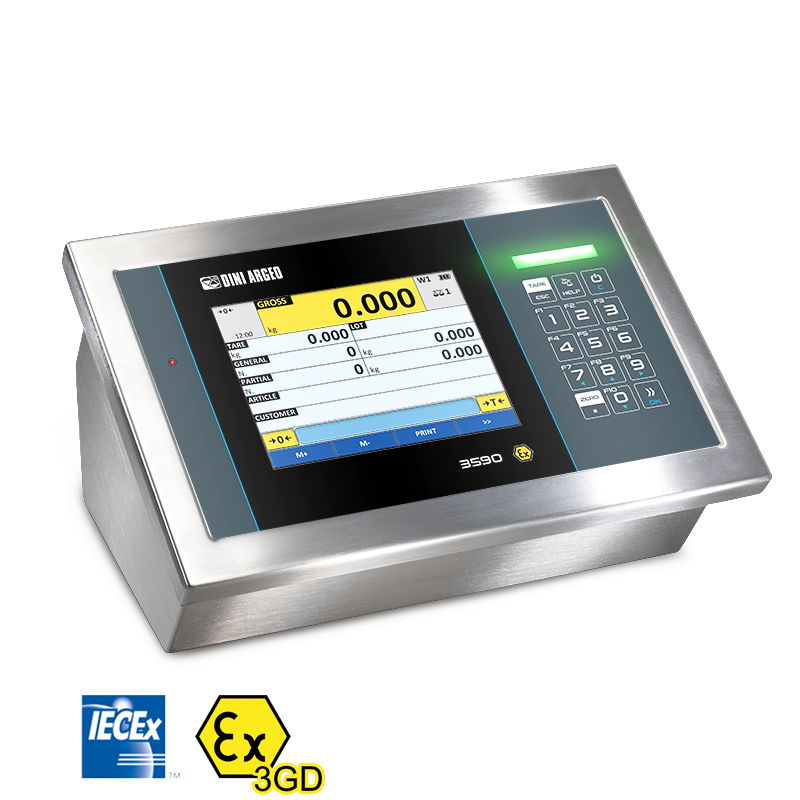

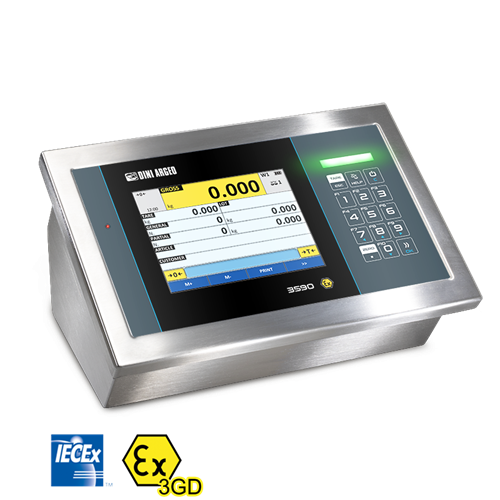

3590EGT-IECEX3GD Touchscreen Indicator for Ex 2 and 22 Zones

IECEx certification.
New enclosure with screwless front closure for easy cleaning of the indicator.

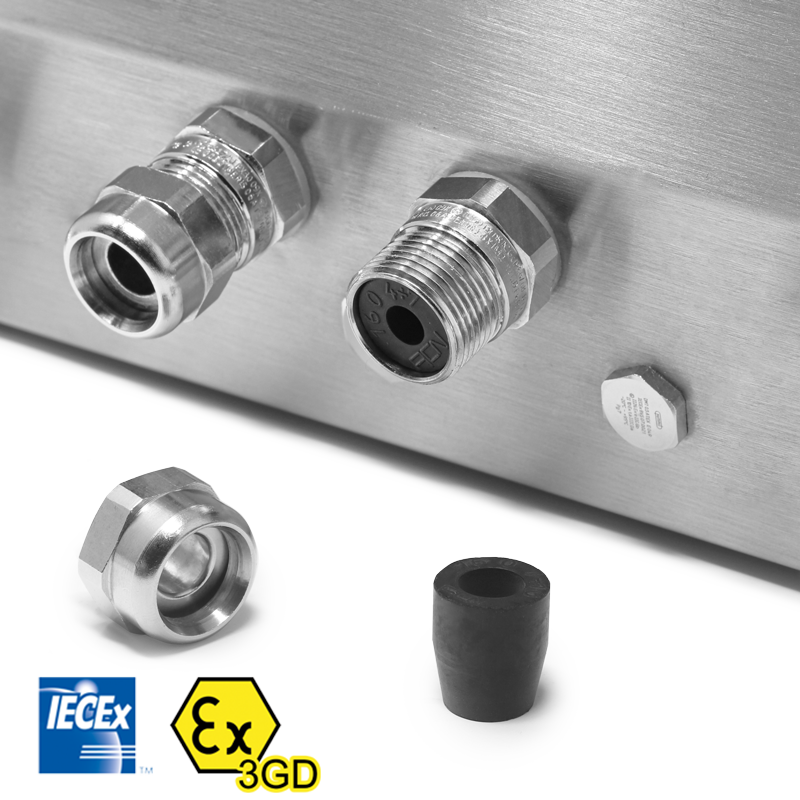

PG7 and PG9 cable glands with adapters for 4 to 7 mm and 7 to 10 mm cable routing. Equipped with anti-friction system that does not require additional external cable fixing, as required by the IECEx scheme and ATEX directives.
Available in specific version for direct connection to load cells installed in zone 1/21 and 0/20.
5,7' colour touch screen display.
Multilanguage software.
15-key alphanumerical waterproof keyboard.
3-way control light.
Selectable QWERTY, AZERTY or QWERTZ keyboard integrated in the touch screen.
Stainless steel waterproof enclosure, with new IP68 protection system.
Dimensions: 280x143x185mm.
Suitable for use on the table.
Real time clock and permanent data storage.
Alibi memory as standard, integrated on the motherboard.
Slot for built-in micro SD to record the configuration, logos, and customized screens (upon request).
Functions available with DINITOOLS utility
- Configuration, data entry and print formatting.
- Recording and filing of all the information on PC.
- Complete retrieval of the configuration.
- Instrument calibration with numeric values.
- Customization of the screens.
24-bit A/D converter, 4 channels, up to 3200 conv./sec. with automatic frequency selection and up to 8 signal linearisation points.
4 independent analogue channels for weight reading (up to 2 in E-AF03 version).
Connection with up to 16 analogue load cells of 350 Ohm (45 load cells of 1000 Ohm).
Up to 10.000e OIML or multi-range 3 x 3000e @ 0,3 µV/d CE-M legal for trade.
Up to 1.000.000 displayable divisions for internal factory use, with internal resolution up to 3.000.000 points.
Connectable to printers and labellers with free programming of the printout formats.
Power supply from 110-240Vac line or 12-24 Vdc Max. 25.2W.

Request More Information

Weight Indicator for Hazardous Areas

Weight indicator with a big touch screen display, for ATEX 2 & 22 hazardous zones.
ATEX/IECEX marking:

II 3G Ex nR IIC T6 Gc X (0°C<= Ta <=50°C) for gases
II 3D Ex tc IIIC T85°C Dc IP65 X (0°C<= Ta <=50°C) for dust.

ATEX/IECEX marking with intrinsically safe connection for load cells:

II 3G Ex nR [ia] IIC T6 Gc X (0°C<= Ta <=50°C) for gases.
II 3D Ex tc [ia] IIIC T85°C Dc IP65 X (0°C<= Ta <=50°C) for dust.

Suitable for advanced industrial applications, it's fitted with 3 serial ports, Ethernet communication port, configurable printouts and integrated alibi memory.
CE-M approvable (OIML R-76 / EN 45501).

3590EGT-IECEX3GD Touch Screen Indicator for Ex 2 and 22 Zones Specifications

I/O SECTION:

2 RS232 serial ports on terminals, for connection to printer, PC, radio module and optional interfaces.
1 RS485/RS232 serial port on terminals, for connection to weight repeater,remote scale, badge readers or digital load cells.
4 serial optoisolated outputs, up to 16 with optional board.
2 serial optoisolated inputs, up to 8 with optional board.
Profibus or Modbus/TCP interface to install in safety zone.
External Profinet, Ethernet/IP, EtherCAT, CANopen and DeviceNet interface to install in safety zone. (optional, only with standard AF01 weighing program).
Modbus RTU Interface.
Optional Bluetooth connection, for fast wireless programming of archives, via PC, tablet or smartphone.
Analog output DAC16O requires IOEXPB expansion board.

COMPLETE PROGRAMMABLITY FOR CUSTOMISED APPLICATIONS:

Thanks to the integrated development area, fully customised applications can be created independently:
- Specific weighing softwares according to customer requirements
- Tailor-made weighing softwares to replace terminals in existing installations
- Wizards, messaging for the operator
- Serial port management, protocol customization
- Complete digital I/O management
- Sequential or simultaneous automations
- Data entry, tailor-made archives

Dini Argeo also offers the service of software development (to be quoted).

Dini Argeo also offers the service of software development (to be quoted).

STANDARD APPLICATIONS:

SUPPLIED AS STANDARD:
AF01: Totalization and formula weighing

OPTIONAL:
AF02: Piece/quantity counting
AF03: Weighbridges - Vehicle In/Out
AF04: Statistical check of prepackaged goods
AF05: Price computing and industrial labelling
AF08: Static wheel and axle weighing with 2 or more pads
AF09: Software for dynamic or static axle weighing with 1 or 2 pads
BATCH1: Single product dosage systems in loading and unloading
BATCH: Software for multicomponent dosage systems in loading and unloading (requires IOEXPB expansion board)

MAIN CERTIFICATIONS:

EU Type Examination Certificate (45501:2015)
OIML R76
OIML R51 - MID
OIML R134 (AF09)
EN/IEC 60079-0
EN/IEC 60079-11 (ZB version)
EN/IEC 60079-15
EN/IEC 60079-31
Australian legal for trade certificate of approval (NMI S788)
Certification according to ATEX directive 2014/34/EU and in compliance with IECEx scheme, group II category 3GD according to EN/IEC 60079-0, EN/IEC 60079-11, EN/IEC 60079-15, EN/IEC 60079-31.

AVAILABLE LANGUAGES:

Menu selectable languages:IT, EN, FR, DE, ES, PT, PL*

* Polish available only on EGT-AF01, EGT-AF02, EGT-AF03, EGT-AF04, EGT-AF09, EGT-BATCH, EGT-BATCH1

Code pages available for the translation of messages and screens, using the Custom Language Tool program (downloadable in the Download section):
Windows 1252: EN, GA, IT, NO, PT, ES, SV, DE, FI, IS, FR, NL, SL
Windows 1250: PL, CS, SK, HU, SL, SH, RO, SQ, EN, DE
Windows 1251: RU, UK, BE, BG, SR, MK, EN
Windows 1253: EL, EN
Windows 1258: VI, EN, FR
AVAILABLE ON ESTIMATE
Power supply 24 Vdc.
PG13,5 anti-friction cable glands with adapters for the passage of cables from 5,5 to 8 mm and from 10,5 to 13 mm.

Resources / Downloads

Articles

Title	View	Email	Category	Type
Inventory Weighing Solutions and Programmes		Email	Weight Indicators\|Bench Scales\|Pallet Truck Scales\|Floor Scales	Articles

Parts

Available versions

	Part #	Description	List Price	Cart / Quote
	3590EGT-IECEX3GD	Ex colour Touch Screen indicator for zone 2/22 with AF01 software. IP68 stainless steel enclosure. ATEX/IECEX II 3G Ex nR IIC T6 Gc X (0øC<= Ta <=50øC) for gas and II 3D Ex tc IIIC T85øC Dc IP65 X (0øC<= Ta <=50øC) for dust. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).	Consult	View
	3590EGT-IECEX3GDZB	Ex colour Touch Screen indicator for zone 2/22 with AF01 software, connectable directly to load cells installed in zone 1/21 and 0/20. IP68 stainless steel enclosure. ATEX/IECEX marking: II 3G Ex nR [ia] IIC T6 Gc X (0øC<= Ta <=50øC) for gas and II 3D Ex tc [ia] IIIC T85øC Dc IP65 X (0øC<= Ta <=50øC) for dust. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).	Consult	View

Options

Available firmwares

Part #	Description	List Price	Cart / Quote
AF02	Software for piece/quantity counting.	Consult	View
AF03GT	Software for weighbridges, vehicle In/Out. For 3590 "TOUCH SCREEN" weight indicators.	Consult	View
AF04GT	Software for statistical checking of prepackaged goods. For 3590 "TOUCH SCREEN" weight indicators.	Consult	View
AF05	Software for price computing and industrial labelling.	Consult	View
AF08	Software for static wheel and axle weighing with 2 or more pads.	Consult	View
AF09	Software for dynamic and static axle weighing with 1 or 2 pads.	Consult	View
BATCH1	Software for single product dosage systems in loading and unloading.	Consult	View
BATCH	Software for multicomponent dosage systems in loading and unloading. NOTE: For 3590, IOEXPB expansion board is required.	Consult	View

Optional power supply cords

	Part #	Description	List Price	Cart / Quote
	EXACB4	4x0.5 mmý armoured cable (suitable for Ex zones). PVC inner sheath. Armour: galvanised steel wire braid. Outer sheath PVC, diameter 7.3 mm. Temperature range: -30 / +80 øC. Minimum bending radius >/= 10 x O.D. _/m	Consult	View

Declaration of ATEX conformity

	Part #	Description	List Price	Cart / Quote
	DCATEX3GD	Declaration of ATEX conformity of whole. Ex II 3G IIC T6 Gc X and Ex II 3D IIIC T115øC Dc X system, with relative label of whole system, for ATEX certified or NOT ATEX certified Dini Argeo indicator (in the latter case to be installed in a safe area) connected to a mechanical structure with ATEX load cells (each load cell must be certified with CCATEX or CCATEX3GD option). Provided with descriptive document of the assembly and ATEX EU declaration of conformity of the assembly (EN, DE, FR, ES and IT).	Consult	View
	DCATEXMB4	ATEX declaration for the whole system with Dini Argeo Zener barriers. Ex II 2G IIC T6 Gb X e Ex II 2D IIIC T125øC Db X system, with label of the whole system, for weight indicator connected to Dini Argeo zener barriers, connected to a mechanical structure with ATEX load cells (each cell must be certified with CCATEX option). Provided with descriptive document of the assembly and ATEX EU declaration of conformity of the assembly (EN and IT).	Consult	View

Approval for sale to third parties

Part #	Description	List Price	Cart / Quote
KCEM	Plates and Welmec form for legal trade use of a scale. NET PRICE. Service available in combination with a Dini Argeo indicator.	Consult	View
ECEMDOC	Printed EU declaration of conformity, EU certificate of verification, test certificate and metrological book (free download from our website, only for approved CE-M products). NET _.	Consult	View
ECEM-AU	Single platform/scale legal-for-trade approval for Australia.	Consult	View

Printers/Labelers for safe zones

Part #	Description	List Price	Cart / Quote
OBTPRB	Table thermal printer. For weight indicator, with IP40 ABS case, 1,5 m connection cable and internal power supply. Thermal paper roll included as standard.	Consult	View
CODEPG	Service for loading a customised code-page on TPR printer (standard is PC437 - Central Europe, USA)	Consult	View
LP542TE	Thermal transfer or direct thermal labelling machine Supplied with standard peel mechanism. Maximum printing size 25400 x 108 mm. Maximum roll O 127 mm and width up to 112 mm. Label roll and ribbon not included.	Consult	View
SMTPLUS-1	Thermal transfer or direct termal labeller. Peel-off kit in option.	Consult	View
SMTRPK-1	Label peel-off and rewind kit for SMTPLUS-1 labeller.	Consult	View
PRNSERV	Custom-made ticket (up to 4 layouts). NET price.	Consult	View
APRNSERV	Custom-made label (up to 4 layouts). NET price.	Consult	View

Connection cables

	Part #	Description	List Price	Cart / Quote
	RSCBTW	4-core twisted shielded cable (2x2x0.34 mmý), for RS485 communication or analogue output. Polyolefin inner sheath. Tinned copper braid shielding. Outer sheath PVC, diameter 7mm. Temperature range: -30 / +80 øC. Minimum bending radius >/= 6 x O.D. _/m	Consult	View
	ETHCBEX	Multi-core cable (4x2xAWG24) suitable for Ethernet connections in Ex-zones (connectors and cable gland only installed with S6 service). First shield: aluminium/polyester tape, second shield: tinned copper braid (coverage = 85% - EMC 89/336). Outer sheath: PVC, diameter 6.3mm. Temperature range: -30 / +80 øC. Minimum bending radius >/= 8 x O.D. Minimum length 10 m. _/m	Consult	View

Support brackets

Part #	Description	List Price	Cart / Quote
EXSTFR	AISI 304 stainless steel bracket, adjustable inclination. For mounting IECEX weight indicators on the wall.	Consult	View
EXSTFI	AISI 304 stainless steel wall bracket. For mounting IECEX weight indicators.	Consult	View
PANEL-ST	Bracket for mounting the indicator on the panel.	Consult	View

Storing the weighs

	Part #	Description	List Price	Cart / Quote
	SWM	"WeiMonitor" PC program to monitor and record in real time weighs performed on the connected scale (the price is intended for the license to manage one scale).	Consult	View

Software for display customisation

	Part #	Description	List Price	Cart / Quote
	DDT	Software for the quick customisation of the touchscreen display. For 3590ET and 3590EGT series indicators.	Consult	View

Communication Interfaces

Part #	Description	List Price	Cart / Quote
RF2G4	Built-in 2.4 GHz radiofrequency module. Max. functioning distance in appropriate environmental and installation conditions: 45m indoors, 140m outdoors. Up to 39 configurable channels. (RF2G4 must be combined with another radio module).	Consult	View
PROFI232-1	External RS232/RS485/PROFIBUS interface for DIN bar. Connectable to the indicators with Profibus protocol with PCB, terminal blocks, plastic box and UL-marked labels (if applicable).	Consult	View
BLTH-3	Built-in bluetooth interface. For wireless connection of the scale to tablets, smartphones, laptops or barcode scanners. Attention: this interface is not suitable for Master-Slave systems.	Consult	View
ETHD	Built-in Ethernet interface. Speed from 10 to 100 Mbps, TCP, UDP, IP, ARP, ICMP, Ethernet Mac protocols.	Consult	View

Fieldbus interfaces

Part #	Description	List Price	Cart / Quote
PROFINET1S	RS485 to ProfiNET interface, for DIN rail mounting. With UL marked PCB, Terminal block, plastic box and labels (if expected).	Consult	View
ETHERNETIP1S	RS485 to Ethernet IP interface, for DIN rail mounting. With UL marked PCB, Terminal block, plastic box and labels (if expected).	Consult	View
ETHERCAT1S	RS485 to EtherCAT interface, for DIN rail mounting. With UL marked PCB, Terminal block, plastic box and labels (if expected).	Consult	View
DEVICENET1S	RS485 to DeviceNET interface, for DIN rail mounting. With UL marked PCB, Terminal block, plastic box and labels (if expected).	Consult	View
CANOPEN1S	RS485 to CANOPEN interface, for DIN rail mounting. With UL marked PCB, Terminal block, plastic box and labels (if expected).	Consult	View
191750	Cable,Fieldbus option WE503	List Price: $26.00	View
FB1SINST	Installation, configuration and testing of Fieldbus Module 1S. NET PRICE.	Consult	View

Display customization

	Part #	Description	List Price	Cart / Quote
	GTMEM	10 memories set for display customization with logos and images.	Consult	View

Digital Input / Output

	Part #	Description	List Price	Cart / Quote
	IOEXPB	Built-in board with 12 OUT and 6 IN (mounting and cable gland excluded). It includes expansion circuit of the power supply range of the indicator (8-40Vdc). NOT COMPATIBLE WITH 3590E4CH AND TPRXT. With UL marked PCB, Terminal block, plastic box and labels (if applicable).	Consult	View

Analog Ouput

	Part #	Description	List Price	Cart / Quote
	DAC16OSER	Built-in RS232 / RS485 optoisolated analog output, 0-4/20 mA, 0-10VDC . For DFW, 3590 Touch Screen. Output -10/+10VDC upon request, only at time of order.	Consult	View
	DAC16O-2	Built-in optoisolated analog output, 0-4/20 mA, 0-10VDC (cable gland excluded). For DFW, 3590 and CPW indicators. Output -10/+10VDC upon request, only at time of order. NOTE: For 3590, IOEXPB option board is required, available depending on the model.	Consult	View

PG cable glands

Part #	Description	List Price	Cart / Quote
PG7-IECEX	PG7 Cable Gland for DFW and 3590 IECEx Series Cable diameter: 4 to 7 mm.	Consult	View
PG9-IECEX	PG9 Cable Gland for DFW and 3590 IECEx Series Complete with ferrules and seals. Cable diameter: 4 to 7 mm or 7 to 10 mm.	Consult	View
PG13-IECEX	PG13 Cable Gland for DFW and 3590 IECEx Series Complete with ferrules and seals. Cable diameter: 5,5 to 8 mm, 8 to 10,5 mm or 10,5 to 13 mm.	Consult	View

Other options

Part #	Description	List Price	Cart / Quote
TECSUP	Technical assistance by telephone upon request.	Consult	View
