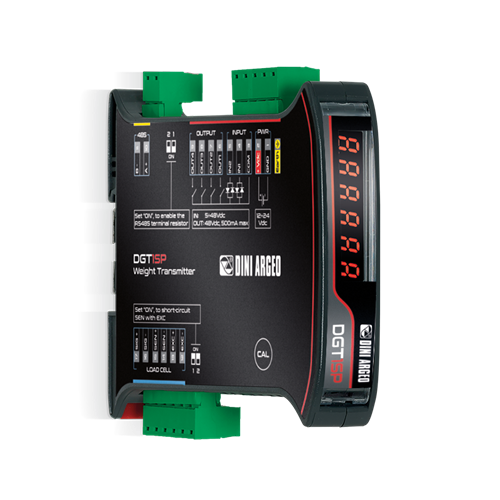

DGT1S PLUS: Multifunction Digital Weight Transmitter

Compact multifunction weight transmitter, for DIN rail mounting. It allows the direct reading and diagnostics of the connected weighing system. The wide range of available interfaces makes the integration of the weighing in any automation system easier and safer.

Request More Information

HD View

Approvals
CE-M EN 45501, OIML R-76, OIML R-61 (MID), OIML R-51 (MID)

On board Web Server
Integrated WebServer as standard, for configuration, diagnostics and data backup.

Specifications

Number of scales/channels:
1

Calibration:

Theoretical (mV\V)
With sample weights
Via Web server

Conversion rate:
Up to 400 Hz

Maximum number of load cells:
Up to 16x350Ω

Minimum sensitivity:

High resolution 0,01 µV/d
Legal for trade 0,3 µV/e

Number of legal-for-trade divisions:
Up to 10,000e or multi-field 2x3,000e

Load cell excitation voltage:
5 V

Communication ports:

1 micro-USB port (device) (Mod. with fieldbus)
1 RS485 port (Mod. DGT1SP / DGT1SP-AN)

Communication protocols:
Modbus RTU, ASCII or fieldbus

Communication rate:

On serial port up to 325 Hz
On Fieldbus up to 16 Hz

PC programs for configuration:
DiniTools

Display:
Red LED 8 mm, 6 characters

Keyboard:
5-key mechanical

Housing:
ABS

Power supply:
12÷24 Vdc, 5 W

Operating temperature range:
For internal use -20°C ÷ +60°C
Approved -10°C ÷ +40°C

Max. humidity:
85%.

INPUTS/OUTPUTS:

Analogue output: 16 bit (Model DGT1SP-AN)
4÷20mA - 0÷10Vdc
Digital outputs: n. 4 OUT, configurable
Digital inputs: n. 2 IN, configurable

CERTIFICATIONS:

2014/30/EU EMC
2014/35/EU LVD
2011/65/EU RoHS
OIML R61 - MID
OIML R51 - MID
OIML R76
EU Type Examination Certificate (2014/31/EU)

Parts

Available Versions

Part #	Description	List Price	Cart / Quote
DGT1SP	Weight transmitter on DIN rail, with 2 INPUTS and 4 OUTPUTS. Fitted with 5-key keypad and LED display. Multifunction weighing program.	Consult	View
DGT1SP-AN	Weight transmitter on DIN rail, with 2 INPUT, 4 OUTPUT and analog output. Fitted with 5-key keypad and LED display. Multifunction weighing program.	Consult	View
DGT1SP-PRONET	Weight transmitter on DIN rail, with 2 IN, 4 OUT and PROFINET port. Fitted with 5-key keypad and LED display. Multifunction weighing program.	Consult	View
DGT1SP-ETHIP	Weight transmitter on DIN rail, with 2 IN, 4 OUT and EtherNet/IP port. EtherNet/IP. Fitted with 5-key keypad and LED display. Multifunction weighing program.	Consult	View
DGT1SP-MODTCP	Weight transmitter on DIN rail, with 2 IN, 4 OUT and Modbus/TCP port. Fitted with 5-key keypad and LED display. Multifunction weighing program.	Consult	View
DGT1SP-ETHCAT	Weight transmitter on DIN rail, with 2 IN, 4 OUT and EtherCAT port. Fitted with 5-key keypad and LED display. Multifunction weighing program.	Consult	View
DGT1SP-PB	Weight transmitter on DIN rail, with 2 IN, 4 OUT and Profibus port. Fitted with 5-key keypad and LED display. Multifunction weighing program.	Consult	View
DGT1SP-DEVNET	Weight transmitter on DIN rail, with 2 IN, 4 OUT and DeviceNet port. Fitted with 5-key keypad and LED display. Multifunction weighing program.	Consult	View

Options

RS485 lightning and surge protection

Part #	Description	List Price	Cart / Quote
RS485PDIN	Protection circuit for port 485, with enclosure for DIN rail installation. Protection according to IEC 1000-4-5/D (IEC 801-5/D).	Consult	View

Approval for sale to third parties

	Part #	Description	List Price	Cart / Quote
	KCEM	Plates and Welmec form for legal trade use of a scale. NET PRICE. Service available in combination with a Dini Argeo indicator.	Consult	View
	ECEM-AU	Single platform/scale legal-for-trade approval for Australia.	Consult	View

Clock Calendar / Alibi Memory for type-approved communication

	Part #	Description	List Price	Cart / Quote
	ALMEM3V3-1	Alibi memory (fiscal memory, max 120.000 weighs) for approved weight transmission to PC/PLC or data recording on MMC/USB. Built-in real time clock to print the date/time with PCB, screw terminal, plastic box (it requires FW 05.00.02 or higher).	Consult	View
	DFCLK3V3-1	Real time clock for printing/displaying of date and time. .	Consult	View

PC Softwares

Part #	Description	List Price	Cart / Quote
D-LEGAL	Legal for trade approved software for recording weighing results to a PC (virtual alibi function) with an integrated API library for interfacing with other software.	Consult	View
D-API	Software for recording weighing results to a PC (for internal use) with an integrated API library for interfacing with other software.	Consult	View

Power supplier for DIN bar

	Part #	Description	List Price	Cart / Quote
	MDR2012	12Vdc power unit for DIN bar. 110/240Vac input. CE and UL certified. Not compatible with BOX2121S.	Consult	View

Communication Interfaces

	Part #	Description	List Price	Cart / Quote
	SETHDIN-1	RS232 / RS485 / Ethernet converter. Modbus RTU / Modbus TCP/IP (if applicable). Connectable to all Dini Argeo weight indicators via the serial port. ABS housing for DIN rail. With PCB, screw terminals, plastic box and UL marked labels (if applicable).	Consult	View

Options for ATEX version

Part #	Description	List Price	Cart / Quote
ZBA1S	Intrinsic protection three channel Zener barrier. Specific for connection to load cells, for mounting on DIN rail in a safe area, or in a flame-proof case. Marking: ATEX/IECEx II (1) GD [Ex ia Ga] IIC [Ex ia Da] IIIC. Manual and ATEX UE CONFORMITY DECLARATIONS (available in EN, DE, FR, ES and IT).	Consult	View
KZBA-1	ATEX ABS housing kit with Zener Barrier ZBA1S for load cells. For intrinsically safe weighing systems in a dangerous zone. Dimensions 179x359x166,5mm. It can connect up to 8 350 Ohm load cells. Marking of housing + Zener Barrier ZBA1S: ATEX II 3(1)G Ex nA [ia Ga] IIC T4 Gc X for gas, ATEX II 3(1)D Ex tc [ia Da] IIIC T135øC Dc IP66 X for dust. Provided with safety instructions and the ATEX EU declaration of conformity (EN and IT).	Consult	View
KMB4-1	Kit of 3 ATEX Zener barriers for load cells, in an ABS box. For up to 4 load cells of 350 ohm, for intrinsic protection weighing systems in a dangerous area. Marking of the whole box with three Zener barriers: ATEX II 3(1)G Ex nA [ia Ga] IIC T4 Gc (-20øC = Ta = +40øC) for gas, ATEX II 3(1)D Ex tb [ia Da] IIIC T130øC Dc IP65 (-20øC = Ta = +40øC) for dusts. Provided with safety instructions and the ATEX EU declaration of conformity (EN and IT).	Consult	View
DCATEXMB4	ATEX declaration for the whole system with Dini Argeo Zener barriers. Ex II 2G IIC T6 Gb X e Ex II 2D IIIC T125øC Db X system, with label of the whole system, for weight indicator connected to Dini Argeo zener barriers, connected to a mechanical structure with ATEX load cells (each cell must be certified with CCATEX option). Provided with descriptive document of the assembly and ATEX EU declaration of conformity of the assembly (EN and IT).	Consult	View
JB4QA	ATEX equalisation box made of ABS IP67, for up to 4 cells. 4 + 1 fairleads. Marking: ATEX II 2G Ex ib IIC T6 Gb for gases, ATEX II 2D Ex tb IIIC T115øC Db IP65 for dust. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).	Consult	View
JB4QAI	ATEX equalisation box made of stainless steel IP66 for up to 4 cells. 4 + 1 fairleads. Marking: ATEX II 2G Ex ib IIC T6 Gb for gases, ATEX II 2D Ex tb IIIC T115øC Db IP65 for dusts. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).	Consult	View
EXCB6	Blue shielded cable 6x0.22 mmý, only for EX i (2GD) assemblies. PVC inner sheath. Tinned copper braid shielding. Polyurethane outer sheath, diameter 5.8 mm. Temperature range: -40 / +80 øC. Minimum bending radius >/= 7 x O.D. _/m	Consult	View

Other accessories / options

Part #	Description	List Price	Cart / Quote
UMAN	Printed user manual (Free download from the website).	Consult	View
TECMAN	Printed technical manual (Free download from the website).	Consult	View
TECSUP	Technical assistance by telephone upon request.	Consult	View
ECEMDOC	Printed EU declaration of conformity, EU certificate of verification, test certificate and metrological book (free download from our website, only for approved CE-M products). NET _.	Consult	View

Related Products

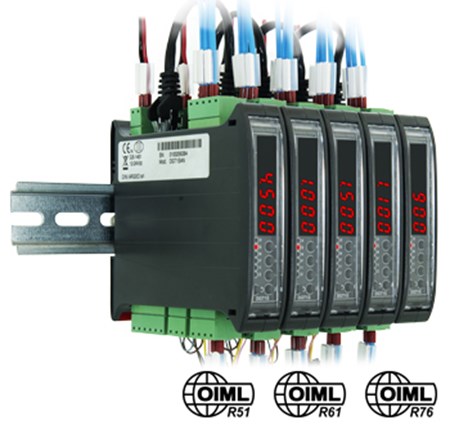

DGT1S Multifunction, Digital Weight Transmitter/Indicator

Compact, multifunction weight transmitter/indicator, for panel mounting on DIN bar. It allows the direct reading and diagnostics of the connected weighing system. The wide range of available interfaces makes it easy to integrate the weighing with any automation system.

DGT1: Multifunction, Digital Weight Transmitter/Indicator

Compact, multifunction weight transmitter / indicator, for panel mounting on DIN bar. It allows the direct reading and diagnostics of the connected weighing system. The wide range of available interfaces, makes it easy to integrate the weighing with any automation system.

DGT1P Panel Digital Weight Transmitter/Indicator

Panel weight transmitter/indicator with aluminum case. Ideal as microcontroller in industrial weighing and dosing systems, it makes it easier and safer to integrate the weighing into any automation system. Up to 2 programmable digital inputs and 6 outputs.

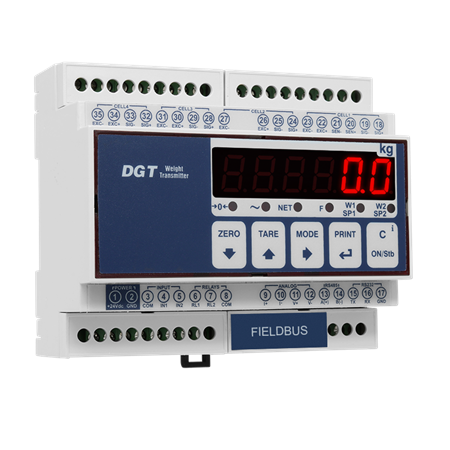

DGT4 - 4-Channel Weight Transmitter

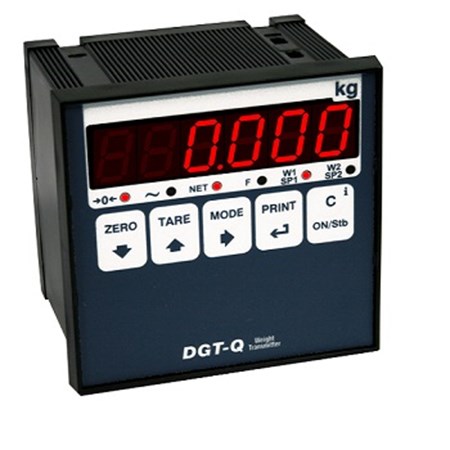

DGTQ: Digital Weight Transmitter/Indicator

Multipurpose weight indicator/transmitter for panel mounting, 4 dependent or independent channels for direct reading and diagnostics of each connected load cell. The wide range of available interfaces, makes it easy to integrate the weighing with any automation system.

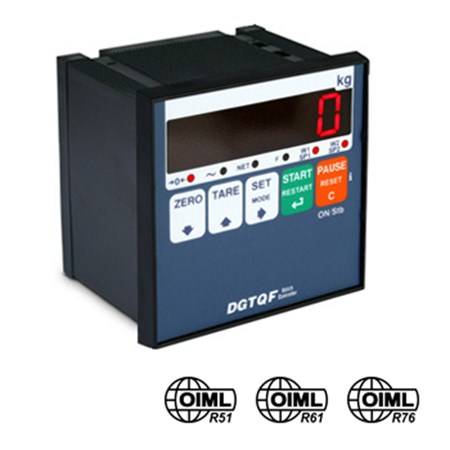

DGTQF: Microcontroller for Industrial Dosing Systems

High performing microcontroller which, through the simple programming of the parameters, offers the possibility to manage single product dosage systems in loading or in unloading, or multiproduct dosages and mixtures.

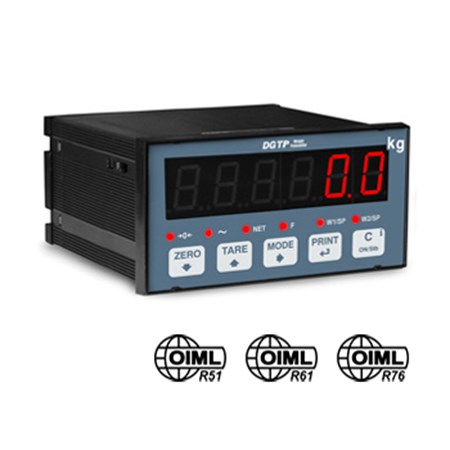

DGTP: Panel Digital Weight Transmitter/Indicator

Multipurpose weight transmitter for panel mounting. Ideal as a microcontroller in industrial weighing and dosage systems making an easier and safer integration of the weighing to any automation system. Fitted with 4 inputs and 6 outputs, programmable. Wide range of available interfaces.

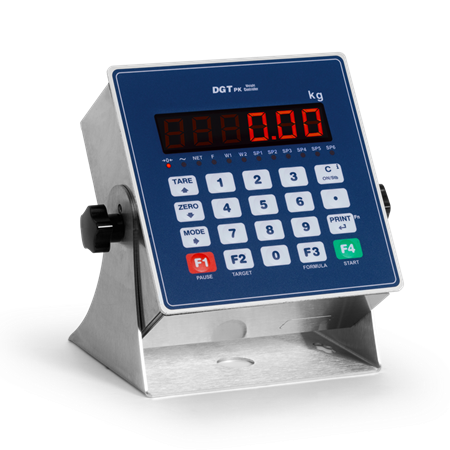

DGTPK: Digital Weight Transmitter/Indicator with Extended Keyboard

Multifunction weight transmitter for table or panel mounting. Ideal as a microcontroller in industrial weighing and dosage systems, making an easier and safer integration of the weighing to any automation system. Fitted with 4 inputs and 6 outputs, programmable. Numerical keyboard for the quick entry of the setpoint and the tare.

DGTPF: Microcontroller for Industrial Dosing Systems

High performing microcontroller for panel mounting; through simple programming of the parameters, it offers the possibility to manage single product dosage systems in loading or in unloading, or multiproduct dosages and mixtures.

DGTPKF: Microcontroller for Industrial Dosage Systems with Extended Keyboard

High performing microcontroller, for table or panel mounting; through simple programming of the parameters, it offers the possibility to manage single product dosage systems in loading or in unloading, or multiproduct dosages and mixtures.

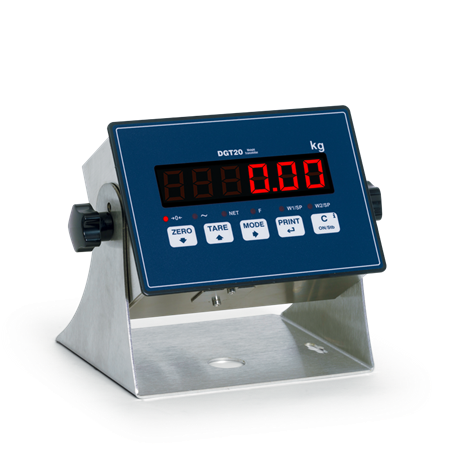

DGT20: Bench Digital Weight Transmitter/Indicator
