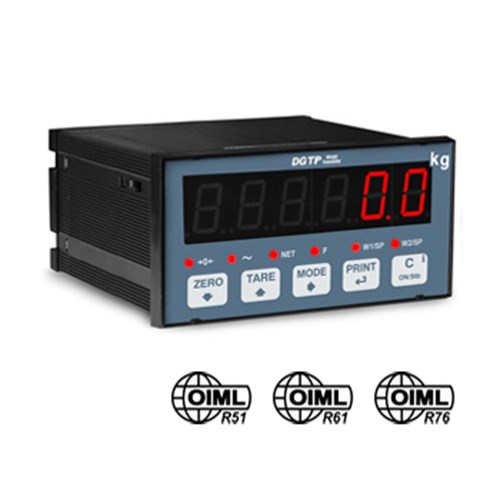

DGTP: Panel Digital Weight Transmitter/Indicator

Easy to use 5-key waterproof keyboard.
Highly efficient red LED display with 6 20-mm digits and 6 LEDs for showing active functions.
Case for panel mounting. Dimensions: 143,5 x 72 x 129mm(lxhxw). Panel cutout: 136,5 x 67,5 x 140mm (lxhxw).
A/D 24-bit sigma-delta conversion, up to 400 conv./sec. autoselect.
Management of a digitally equalised 4-cell weighing system or management of 4 independent weighing systems.
Connectable with up to 16 analogue load cells with 350 Ohm input resistance.
Up to 800.000 displayable divisions with internal resolution up to 3.000.000 points.
Calibration, Set-Up parameters, configurable from keyboard or from PC with DINI TOOLS.
Up to 8 signal linearization points with DINITOOLS (3 from keypad).
Fitted real time clock.
From 12 Vdc to 24 Vdc power supply.

Request More Information

Australian National Measurement Institute

HD View

Multipurpose weight transmitter for panel mounting. Ideal as a microcontroller in industrial weighing and dosage systems making an easier and safer integration of the weighing to any automation system. Fitted with 4 inputs and 6 outputs, programmable. Wide range of available interfaces.

Approvals:
CE-M EN 45501, OIML R-76, OIML R-61 (MID), OIML R-51 (MID), Australian approval

Specifications

Transmitter / Indicator: Functions

Through Keyboard
Zeroing; Semi automatic and presettable tare, print and/or data transmission; ON/Stand-by.

Selectable
High Resolution Weighing x 10; Lb/kg conversion; Approved transmission of the weight to PC/PLC (with ALMEM Alibi memory option) e Peak.

Available in 7.15 firmware version:
Net/Gross; Weighs totalisation; Formulation; Counting; In/Out Truck weighing and Hold.

External Input
Simulation of key pressure; Keyboard lock.

Mosfet Output
Set Point Control on the weight, either positive (in loading) or negative (in unloading), or on the pieces (counting mode), with programmable enabling/disabling thresholds, as direct check or upon weight stability.

Serial Ports

On all models: Reading of the net, gross, and tare weights; Clearing; Semi automatic and presettable tare; Scale switch; Setting of outputs activation thresholds; Reading/Writing of Alibi Memory.
DGTP and DGTPAN models: Reading of microvolts or ADC converter for all the channels; Message display; Printing; Setting of APW in counting mode; Simulation of key pressure; MODBUS serial protocol.

Through 16 bit Analogue Output (DGTPAN):
Analogue output proportional to the net or gross weight, either positive (in loading) or negative (in unloading).

Master/Repeater Option (MSTSLV code):
Specific program for use of the indicator as a universal weight repeater or as a multi-scale repeater (MASTER) in combination with DFW/DGT/MCW.

Functioning Modes:

Multi-scale repeater (MASTER) function which allows to repeat up to 32 independent scales, with the possibility of managing their functions, or displaying and printing the sum of the weighs of all the scales.

UNIVERSAL weight repeater
function which allows to repeat the weight of any scales, through the configuration of the input string.

I/O Section:
- 1 RS232/C or RS485 bidirectional port configurable for connection to PC or external units.
- 1 RS232/C bidirectional port configurable for connection to printer.
- PROFIBUS serial interface (DGTPPB model).
- 6 photomosfet outputs: 150 mA 48 Vac / 150 mA 60 Vdc (NO), with configurable functions.
- 4 optoisolator photocouplers inputs: 12÷24 Vdc, 5 mA min - 20 mA max, with configurable functions.
- 16-bit analogue output (DGTPAN model) 4-20mA / 0-5Vdc / 0-10Vdc at choice. Maximum load applicable on the output current: 300Ohm. Minimum load applicable on the output voltage: 1kOhm.

CERTIFICATIONS:
CE-M EN 45501
OIML R76
OIML R61 - MID
OIML R51 - MID
Australian legal for trade certificate of approval (NMI S788)

Parts

Available Versions

Part #	Description	List Price	Cart
DGTP	Indicator for panel mounting with 4 IN and 6 OUT. 5-key keypad, LED display, and standard weighing program.	Call for price	View Cart
DGTPAN	Indicator for panel mounting with 4 IN, 6 OUT, analogue output. 5-key keypad, LED display, and standard weighing program.	Call for price	View Cart
DGTPPB-1	Indicator for panel mounting with 4 IN, 6 OUT, Profibus. 5-key keypad, LED display, and standard weighing program.	Call for price	View Cart

Options

RS485 lightning and surge protection

Part #	Description	List Price	Cart
RS485PDIN	Protection circuit for port 485, with enclosure for DIN rail installation. Protection according to IEC 1000-4-5/D (IEC 801-5/D).	Call for price	View Cart

Approval for sale to third parties

	Part #	Description	List Price	Cart
	KCEM	Plates and Welmec form for legal trade use of a scale. NET PRICE. Service available in combination with a Dini Argeo indicator.	Call for price	View Cart
	ECEM-AU	Single platform/scale legal-for-trade approval for Australia.	Call for price	View Cart

Storing the weighs

	Part #	Description	List Price	Cart
	SWM	"WeiMonitor" PC program to monitor and record in real time weighs performed on the connected scale (the price is intended for the license to manage one scale).	Call for price	View Cart

PC software for managing weighbridges

	Part #	Description	List Price	Cart
	WEITRUCK-1	PC software for vehicle weighing. Combinable with DFW, DGT and 3590 series' weight indicators. Databases for storing the customer, material, and vehicle data, management of the totals and programmable printouts. Requires an Alibi Memory.	Call for price	View Cart

Weight repeater software

	Part #	Description	List Price	Cart
	MSTSLV	Program for using the indicator as a repeater. It must be combined with the DFW and DGT weight indicators.	Call for price	View Cart

Printers/Labelers

	Part #	Description	List Price	Cart
	TPRP	Panel thermal printer. Fitted with connection cable, 5Vdc power supply (power adapter not included).	Call for price	View Cart
	TPRPCAL	5Vdc power supply unit.	Call for price	View Cart

Communication Interfaces

	Part #	Description	List Price	Cart
	ALMEM-1	Alibi memory (fiscal memory, max 120.000 weighs) for approved weight transmission to PC/PLC or data recording on MMC/USB. Built-in real time clock to print the date/time with PCB, screw terminal, plastic box and UL-marked labels (if applicable).	Call for price	View Cart
	SETHDIN-1	RS232 / RS485 / Ethernet converter. Modbus RTU / Modbus TCP/IP (if applicable). Connectable to all Dini Argeo weight indicators via the serial port. ABS housing for DIN rail. With PCB, screw terminals, plastic box and UL marked labels (if applicable).	Call for price	View Cart

Power supply

	Part #	Description	List Price	Cart
	MDR2012	12Vdc power unit for DIN bar. 110/240Vac input. CE and UL certified. Not compatible with BOX2121S.	Call for price	View Cart
	DR1512	12Vdc power unit for DIN bar. 110/240Vac input.	Call for price	View Cart

Options for ATEX version

Part #	Description	List Price	Cart
ZBA1S	Intrinsic protection three channel Zener barrier. Specific for connection to load cells, for mounting on DIN rail in a safe area, or in a flame-proof case. Marking: ATEX/IECEx II (1) GD [Ex ia Ga] IIC [Ex ia Da] IIIC. Manual and ATEX UE CONFORMITY DECLARATIONS (available in EN, DE, FR, ES and IT).	Call for price	View Cart
KZBA-1	ATEX ABS housing kit with Zener Barrier ZBA1S for load cells. For intrinsically safe weighing systems in a dangerous zone. Dimensions 179x359x166,5mm. It can connect up to 8 350 Ohm load cells. Marking of housing + Zener Barrier ZBA1S: ATEX II 3(1)G Ex nA [ia Ga] IIC T4 Gc X for gas, ATEX II 3(1)D Ex tc [ia Da] IIIC T135øC Dc IP66 X for dust. Provided with safety instructions and the ATEX EU declaration of conformity (EN and IT).	Call for price	View Cart
DCATEXMB4	ATEX declaration for the whole system with Dini Argeo Zener barriers. Ex II 2G IIC T6 Gb X e Ex II 2D IIIC T125øC Db X system, with label of the whole system, for weight indicator connected to Dini Argeo zener barriers, connected to a mechanical structure with ATEX load cells (each cell must be certified with CCATEX option). Provided with descriptive document of the assembly and ATEX EU declaration of conformity of the assembly (EN and IT).	Call for price	View Cart
KMB4-1	Kit of 3 ATEX Zener barriers for load cells, in an ABS box. For up to 4 load cells of 350 ohm, for intrinsic protection weighing systems in a dangerous area. Marking of the whole box with three Zener barriers: ATEX II 3(1)G Ex nA [ia Ga] IIC T4 Gc (-20øC = Ta = +40øC) for gas, ATEX II 3(1)D Ex tb [ia Da] IIIC T130øC Dc IP65 (-20øC = Ta = +40øC) for dusts. Provided with safety instructions and the ATEX EU declaration of conformity (EN and IT).	Call for price	View Cart

Other options

Part #	Description	List Price	Cart
TECSUP	Technical assistance by telephone upon request.	Call for price	View Cart
TECMAN	Printed technical manual (Free download from the website).	Call for price	View Cart
UMAN	Printed user manual (Free download from the website).	Call for price	View Cart
ECEMDOC	Printed EU declaration of conformity, EU certificate of verification, test certificate and metrological book (free download from our website, only for approved CE-M products). NET _.	Call for price	View Cart
