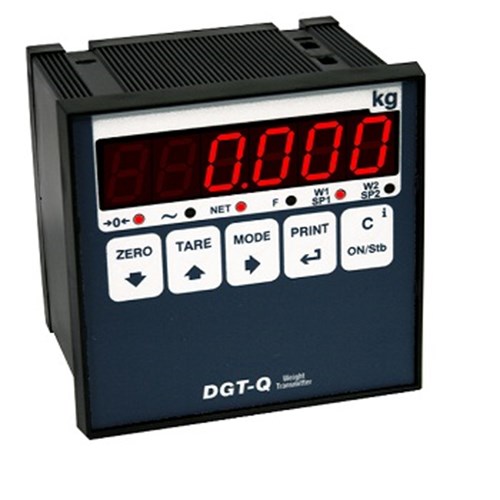

DGTQ: Digital Weight Transmitter/Indicator

Transmitter / Indicator: Functions

Keyboard
Zeroing; Semi automatic and presettable tare, print and/or data transmission; ON/Stand-by.

Selectable
High Resolution Weighing x 10; Lb/kg conversion; Approved transmission of the weight to PC/PLC (with ALMEM Alibi memory option) e Peak.

Available in 7.15 firmware version : Net/Gross; Weighs totalization; Formulation; Counting; In/Out Truck weighing and Hold.

External Input
Simulation of key pressure; Keyboard lock.

Mosfet Output
Set Point Control on the weight, either positive (in loading) or negative (in unloading), or on the pieces (counting mode), with programmable enabling/disabling thresholds, as direct check or upon weight stability.

Serial Ports

• On all models: Reading of the net, gross, and tare weights; Clearing; Semi automatic and presettable tare; Scale switch; Setting of outputs activation thresholds; Reading/Writing of Alibi Memory.
• DGTQ and DGTQAN models: Reading of microvolts or ADC converter for all the channels; Message display; Printing; Setting of APW in counting mode; Simulation of key pressure; MODBUS serial protocol.

16 but Analogue Output
Analogue output proportional to the net or gross weight, either positive (in loading) or negative (in unloading).

 Master/Repeater Options:
Specific programme for use of the indicator as a universal weight repeater or as a multi-scale repeater (MASTER) in combination with DFW/DGT/MCW.

Functioning Modes:
Multi-scale repeater (MASTER) function which allows to repeat up to 32 independent scales, with the possibility of managing their functions, or displaying and printing the sum of the weighs of all the scales.

UNIVERSAL weight repeater
function which allows to repeat the weight of any scales, through the configuration of the input string.

I/O Section:
- RS232/C bidirectional port configurable for connection with external units.
- RS485 or RS232/C bi-directional port configurable for network connection.
- PROFIBUS serial interface (DGTQPB model).
- 2 photomosfet outputs, expandable to 6 through the C4OUT option: 150 mA 48 Vac / 150 mA 60 Vdc (NO), with configurable functions.
- 2 optoisolator photocoupler inputs: 12÷24 Vdc, 5 mA min - 20 mA max, with configurable functions.
- 16-bit analogue output (DGTQAN model) 4-20mA / 0-5Vdc / 0-10Vdc at choice. Maximum load applicable on the output current: 300Ohm. Minimum load applicable on the output voltage: 1kOhm.

Certifications:
CE-M EN 45501
OIML R76
OIML R61 - MID
OIML R51
Australian legal for trade certificate of approval (NMI S788)
