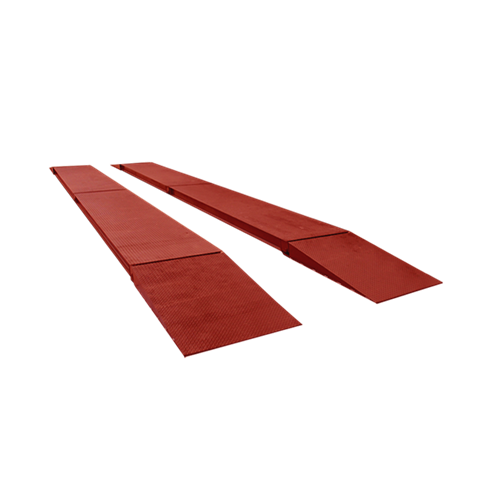

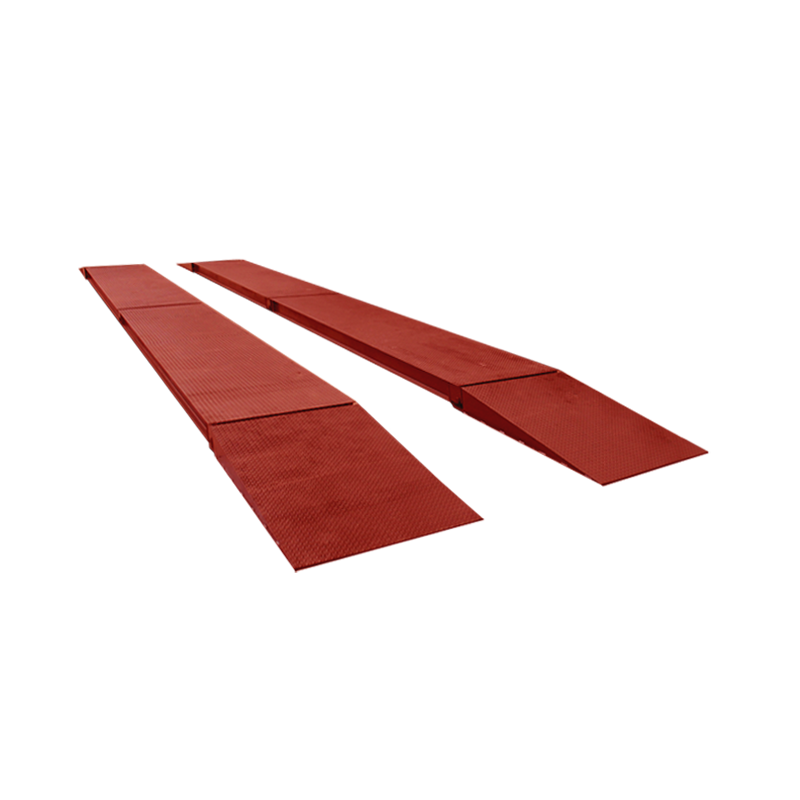

DTW Dual Track Vehicle Weighing Series

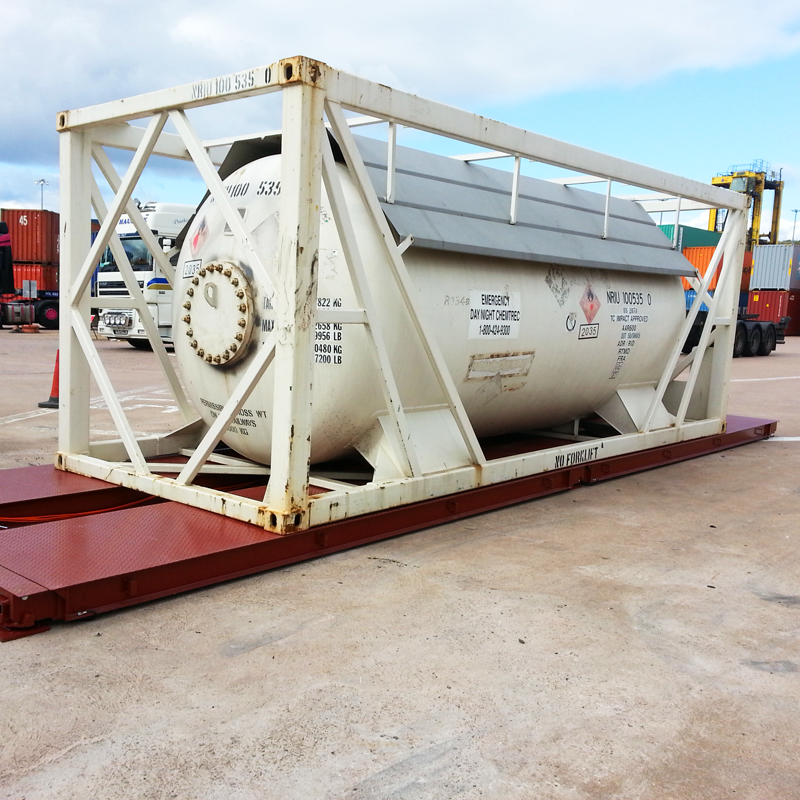

- Precise and versatile platforms, suitable for all kinds of applications; ideal for modern industries, farms, work yards, landfills, ports, etc, in which one can save space or change the logistical stations
- Extremely compact: only 22 cm high. Takes up little space if installed on the street surface, reduced masonry if installed flush floor to the road surface
- The load capacity complies with the 96/53/EC Directive which defines the maximum axle load for the vehicles transiting in Europe (version for higher loads is available upon request)
- Sturdy loading surface in striated sheet steel
- Sandblasting and varnishing with bi-component epoxy coating, highly resistant to corrosion

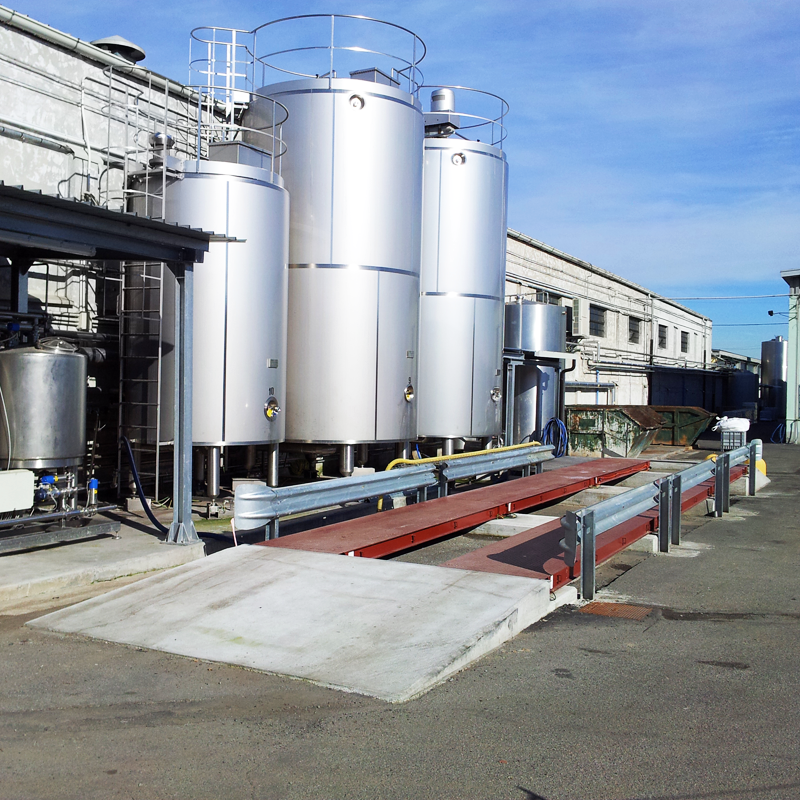

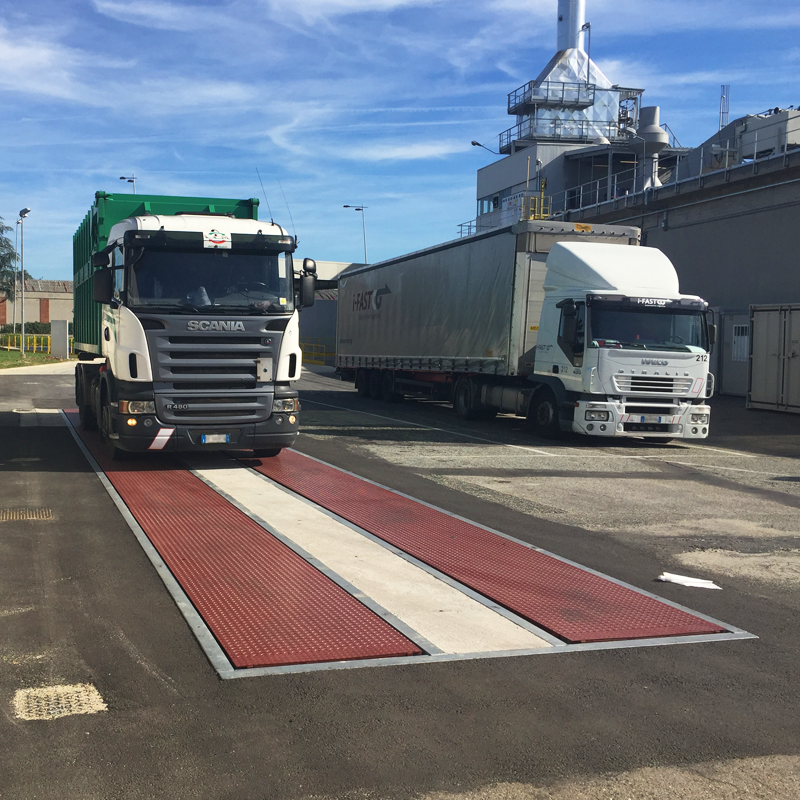

- Installable above, as well as flush floor to the street surface
- Reinforced on and off ramps, for mobile or fixed installation (optional)
- Weight detection system through oscillating load bars (patented system) with integrated brake / acceleration compensating limits and anti-slip rubber resting plates
- Load cells protected from dust and water
- Fitted with approval, carried out in factory (to be combined with Dini Argeo indicator)
- Dust and waterproof wirings and connections, easy to connect and disconnect
- Modularity: by adding or removing pairs of modules, the weighbridges can have these lengths: 4,5 m - 9 m - 13,5 m - 18 m - 22,5 (up to 36m by price estimate)
- Wide range of connectable weight indicators, also functioning with rechargeable battery, which allow to use the weighbridge also without an electrical power supply
- 30m long connection cable between DTW and indicators
- Spray paint can RAL 3009 of 400ml included as standard, for post-installation finishing.
- To facilitate maintenance and avoid prolonged immersion of the junction box, the use of the STCAB street cabinet is recommended.
Options and Accessories:
- Available upon request with special capacities and divisions.
- Transport (upon price estimate).
- Kit of on/off mobile ramps.
- Angles of crest kit for flush floor installation or for concrete on/off ramps.
- Dual range CE-M 3000 + 3000e approved (upon price estimate).
Innovative vehicle weighing dual track weighbridge, easily transportable and installable thanks to the reduced height and weight. Designed and built with vey high quality materials, this represents the most efficient solution for saving time, space, and money in comparison to the classic weighbridges currently available on the market. The standard version is fitted with CE-M 3000e APPROVAL, for legal for trade use.
Available versions
| Code | l x w x h (m) |
Max (kg) |
 (kg) |
2R (kg) |
Notes |
|---|---|---|---|---|---|
| DTW515A-9 | 2x (4,50x1,00x0,22) | 15000 | 5 | -- | 2 bridges - 4 weighing bars |
| DTW530A-9 | 2x (4,50x1,00x0,22) | 30000 | 10 | 5/10(**) | 2 bridges - 4 weighing bars |
| DTW930A-9 | 2x (9,00x1,00x0,22) | 30000 | 10 | 5/10(**) | 4 bridges - 6 weighing bars |
| DTW960A-9 | 2x (9,00x1,00x0,22) | 60000 | 20 | 10/20(**) | 4 bridges - 6 weighing bars |
| DTW1430A-9 | 2x (13,50x1,00x0,22) | 30000 | 10 | 5/10(**) | 6 bridges - 8 weighing bars |
| DTW1460A-9 | 2x (13,50x1,00x0,22) | 60000 | 20 | 10/20(**) | 6 bridges - 8 weighing bars |
| DTW1860A-9 | 2x (18,00x1,00x0,22) | 60000 | 20 | 10/20(**) | 8 bridges - 10 weighing bars |
| DTW1880A-9 | 2x (18,00x1,00x0,22) | 80000 | 50 | 20/50(**) | 8 bridges - 10 weighing bars |
| DTW2280A-9 | 2x (22,50x1,00x0,22) | 80000 | 50 | 20/50(**) | 10 bridges - 12 weighing bars |
(*)NET PRICES: please contact the sales department for further information.
WARNING: the product requires special transport, with quote.
(**) Fitted with CE-M 3000e approval. The dual range CE-M 3000 + 3000e approval is optional, upon price estimated.
Resources / Downloads
Articles
| Title | View | Category | Type | |
|---|---|---|---|---|
| SOLAS: Solutions for Weighing Containers |  Email |
Axle Weighing Scales|Weighing Axle Platforms and Indicators|In-Motion Axle Scales|Dynamic Axle Weighing|Crane Scales|Weighing Forks | Articles |
Parts
Available versions
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
DTW515A-9 | Dual track mobile approved weigh bridge with 15000 kg capacity, 5 kg division, striated sheet steel loading surface 4,50x1 m, h= 0,22 m, painted steel structure. The load capacity complies with the 96/53/EC Directive which defines the maximum axle load for the vehicles transiting in Europe. NET PRICE |
Consult |
|
|
|
DTW530A-9 | Dual track mobile approved weigh bridge with 30000 kg capacity, 10 kg division, striated sheet steel loading surface 4,50x1 m, h= 0,22 m, painted steel structure. The load capacity complies with the 96/53/EC Directive which defines the maximum axle load for the vehicles transiting in Europe. NET PRICE |
Consult |
|
|
|
DTW930A-9 | Dual track mobile approved weigh bridge with 30000 kg capacity, 10 kg division, striated sheet steel loading surface 9x1 m, h= 0,22 m, painted steel structure. The load capacity complies with the 96/53/EC Directive which defines the maximum axle load for the vehicles transiting in Europe. NET PRICE |
Consult |
|
|
|
DTW960A-9 | Dual track mobile approved weigh bridge with 60000 kg capacity, 20 kg division, striated sheet steel loading surface 9x1 m, h= 0,22 m, painted steel structure. The load capacity complies with the 96/53/EC Directive which defines the maximum axle load for the vehicles transiting in Europe. NET PRICE |
Consult |
|
|
|
DTW1430A-9 | Dual track mobile approved weigh bridge with 30000 kg capacity, 10 kg division, striated sheet steel loading surface 13,50x1 m, h= 0,22 m, painted steel structure. The load capacity complies with the 96/53/EC Directive which defines the maximum axle load for the vehicles transiting in Europe. NET PRICE |
Consult |
|
|
|
DTW1460A-9 | Dual track mobile approved weigh bridge with 60000 kg capacity, 20 kg division, striated sheet steel loading surface 13,50x1 m, h= 0,22 m, painted steel structure. The load capacity complies with the 96/53/EC Directive which defines the maximum axle load for the vehicles transiting in Europe. NET PRICE |
Consult |
|
|
|
DTW1860A-9 | Dual track mobile approved weigh bridge with 60000 kg capacity, 20 kg division, striated sheet steel loading surface 18x1 m, h= 0,22 m, painted steel structure. The load capacity complies with the 96/53/EC Directive which defines the maximum axle load for the vehicles transiting in Europe. NET PRICE |
Consult |
|
|
|
DTW1880A-9 | Dual track mobile approved weigh bridge with 80000 kg capacity, 50 kg division, striated sheet steel loading surface 18x1 m, h= 0,22 m, painted steel structure. The load capacity complies with the 96/53/EC Directive which defines the maximum axle load for the vehicles transiting in Europe. NET PRICE |
Consult |
|
|
|
DTW2280A-9 | Dual track mobile approved weigh bridge with 80000 kg capacity, 50 kg division, striated sheet steel loading surface 22,5x1 m, h= 0,22 m, painted steel structure. The load capacity complies with the 96/53/EC Directive which defines the maximum axle load for the vehicles transiting in Europe. NET PRICE |
Consult |
Options
Transport and installation
| Part # | Description | List Price | Cart / Quote |
|---|---|---|---|
| WBTRASP1 | Weighing system transport costs. Ask for price estimate. |
Consult |
Calibration service with Dini Argeo indicator (only at time of order)
Accessories for post-installation finishing
Protection for junction box/electronic circuits
Kit for installing above the street surface
Frame for flush floor installation

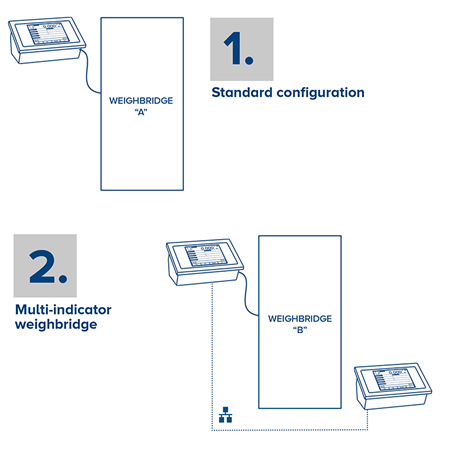

Main connectable indicators
Weight repeaters
Printers/Labelers
Related Products
6116EVO Industrial Touchscreen PC with Integrated Scale Input
6116EVO is the new version of the Dini Argeo industrial PC, designed for harsh industrial environments and equipped with a capacitive touch screen.

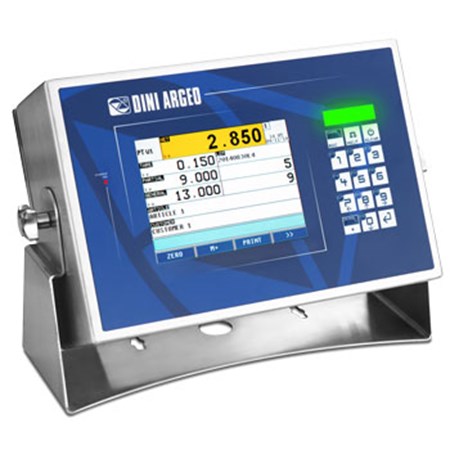

3590EGTT Touchscreen Weight Indicator for Industrial Applications
Totally configurable touch screen weight indicator for advanced weighing systems. The 3590EGTT indicator, other than the chosen weighing programme, has an area for the development of specific application programmes, integrated debuggers and programming tools for PCs.

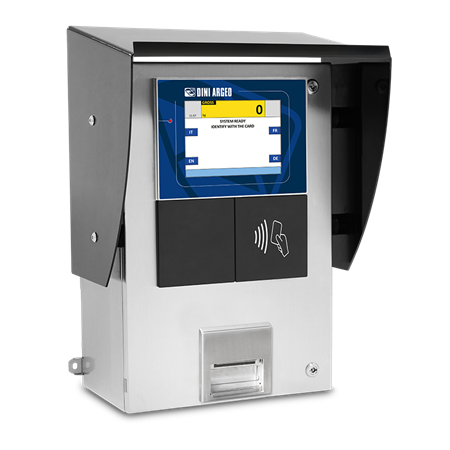

3590EGTBOX8 Kiosk with Weight Indicator for Self-Service Systems and Weighbridges with 8" Touch-Screen
Stainless steel kiosk with 8" touchscreen weight indicator, perfect for self-service weighbridges management. Fitted with thermal printer and RFID reader or coin acceptor. Open to CE-M type-approval.

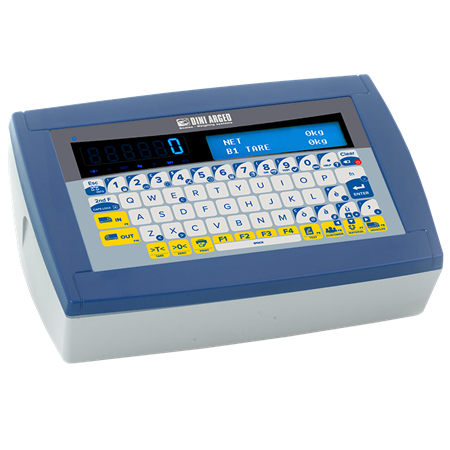

3590EQ Qwerty Evolved Weight Indicator with Integrated Qwerty Keyboard
The high performing 3590EQ digital weight indicator is integrated with the QWERTY keyboard to help simplifies text and archive compilation.

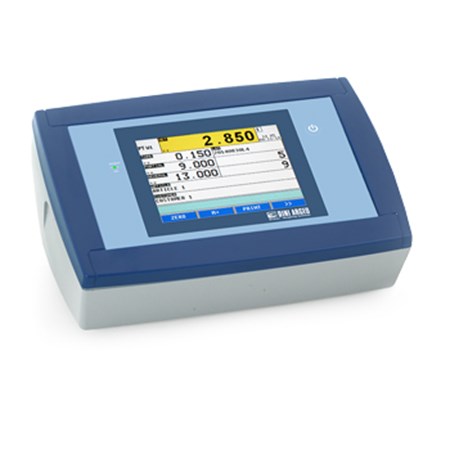

3590ET Touch: Touchscreen Weight Indicator for Industrial Applications
Digital weight indicator with a big touch screen display, suitable for advanced industrial applications. It allows the visualization of all the weighing data and the customization of the screens, simplifying the user operations. Fitted with 3 serial ports, transmission protocols for data communication, completely configurable printouts, integrated alibi memory, and port for connection to barcode/badge reader. CE-M approvable (OIML R-76 / EN 45501).

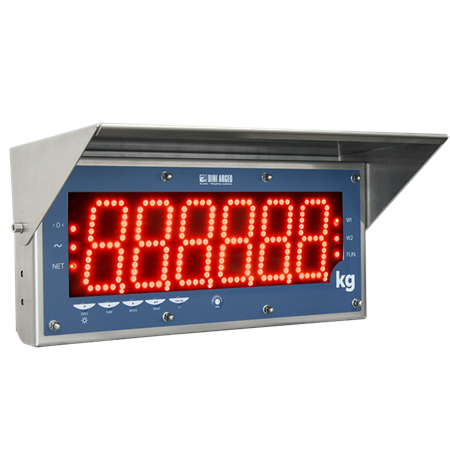

DGT100 Maxi Weight Indicator/Universal Repeater
Weight indicator/ repeater with large matrix display composed of very intense bright LEDs. Particularly suitable for outdoor uses, it is clearly visible even in full sunlight and where it's necessary to view from a distance at any angle. Case completely in IP68 stainless steel.
AF03 GT Weighbridge Program for 3590 Touch Screen Weight Indicators
Specific program for 3590ET/3590EGT series weight indicators with touch screen display, it offers every main function required in the collection of data when weighing vehicles with weighbridges either in manual mode with operator or automatic/self-service.

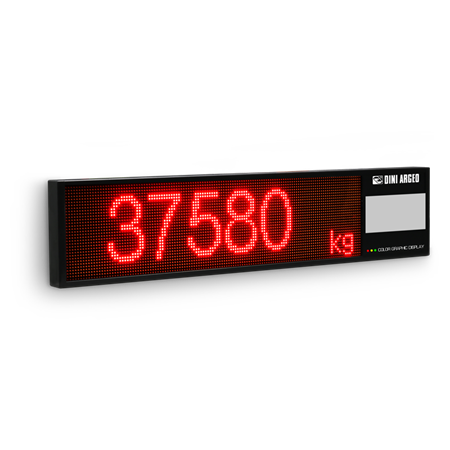

Alphanumeric Repeater GLR100
Alphanumeric graphic repeater with RGB HIGH LUMINOSITY LED matrix, ideal for displaying weight and operational messages.

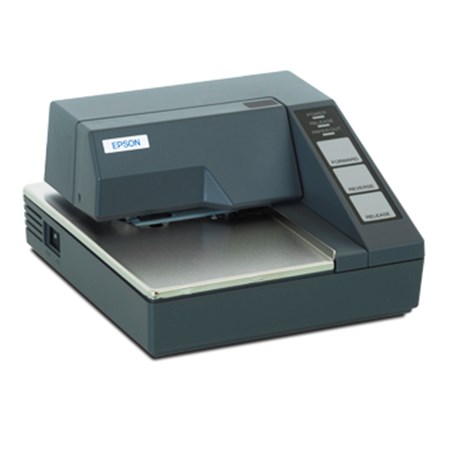

DOT Matrix TM295 Impact Printer
Dot matrix impact printer connectable to weight indicators, designed for the universal printout of delivery notes, labels and tickets. Its compactness and solid structure makes it useful to use in any industrial environment. Furthermore, thanks to its lateral side opening it is possible to use any paper size.

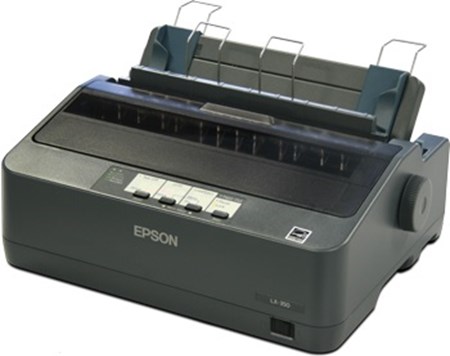

LX300PRO Dot Matrix Printer
