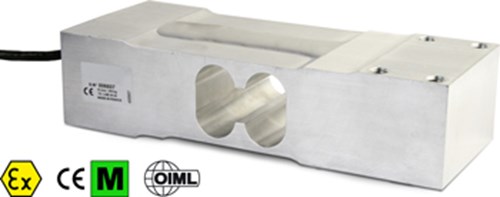

SPBC Series Off-Center Load Cells

  • C3 precision class
  • Off center load compensated
  • Made in aluminium alloy
  • IP65 protection
  • capacities from 100 to 630kg
  • For platforms with dimensions up to 700 x 700 mm
  • Shielded connection cable
  • OIML certificate available upon request
  • Test certificate available upon request
Request More Information
SPBC

CAPACITIES (kg): 100, 200, 300, 500, 630.

OIML R60. C3 precision class.

Aluminium alloy. IP65 protection.

Load cells for off center loads, suitable for example to build CE-M approved scales with a single load cell with maximum dimensions of 700x700 mm.

Minimum load cell verification interval:
 Vmin = EMax / 10.000

Maximum number of verification intervals:
nLC = 3000

Full Scale Output:
2mV/V +/- 10%

Combined error:
 0,017% of Full Scale Output (F.S.)

Temperature effect on zero:
 0,0014% /°C

Temperature effect on full scale output:
0,0014% /°C

Compensated Temperature Range:
 -10°C/+40°C

Operating Temperature Range:
 -20°C/+60°C

Creep error after 30 minutes:
0,025% F.S.

Maximum tolerated excitation voltage:
 15 VDC

Input Resistance:
410 ± 20 Ohm

Output Resistance:
350 ± 5 Ohm

Zero Balance:
 +/-10% F.S.

Insulation Resistance:
 >1000 MOhm

Safe Overload:
 150% F.S.

Ultimate Overload:
200% F.S.

Nominal displacement:
 < 1mm

Shielded cable:
SPBC 6-wire shielded cable, 3m long, 5mm diameter

SPBC Wiring Code
Colour
Function
  --
SHIELD
YELLOW
OUTPUT +
GREY
SENSE +
BROWN
INPUT +
WHITE
OUTPUT -
GREEN
INPUT -
PINK
SENSE -

The CCATEX certificate makes the load cell suitable for use in hazardous areas with protection methods according to:

ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga
ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65.

The certificate includes the manual and the ATEX CE conformity declaration (available in EN, DE, FR, and IT).

IMPORTANT: the certificate refers to the single load cell. For systems with more load cells, it is necessary to order one certificate for each load cell.

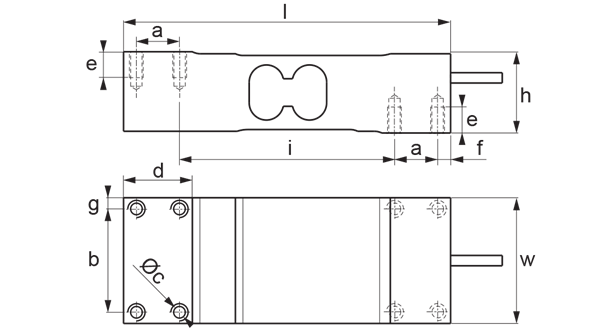

Code Max
(kg)		 Plate
Max
(mm)
 l
(mm)		 w
(mm)		 h
(mm)

a
(mm)

 b
(mm)		 c Ø
(mm)		 d
(mm)		 e
(mm)		 f
(mm)		 g
(mm)
SPBC100 100 700 x 700 190 73 47 25 60 N°8 x M8 40 15 7,5 6,5
SPBC200 200 700 x 700 190 73 47 25 60 N°8 x M8 40 15 7,5 6,5
SPBC300 300 700 x 700 190 73 47 25 60 N°8 x M8 40 15 7,5 6,5
SPBC500 500 700 x 700 190 73 47 25 60 N°8 x M8 40 15 7,5 6,5
SPBC630 630 700 x 700 190 73 47 25 60 N°8 x M8 40 15 7,5 6,5

Resources/Downloads

Title View Email Category Type
All Around Dini Argeo Weighing Solutions for Logistics and Warehouses Email Pallet Truck Scales|Pallet Scales|Pallet Weighers|Electric Pallet Truck Scales|Hygienic Pallet Truck Scales|Pallet Weighing|Weighing Forks|Hydraulic Weighing Kits|Counting Scales|Bench Scales|Axle Weighing Scales|In-Motion Axle Scales|Dynamic Axle Weighing|Weighing Platforms and Indicators|High Resolution Load Cells|Off Center Load Cells|Bending Beam Load Cells|Shear Beam Load Cells|Double Shear Beam Load Cells|Compression Load Cells|Tension Load Cells|Column Load Cells|Mounting Kits|Hygienic Load Cells Articles

Parts

Available Versions

Part # Description List Price Cart/Quote
SPBC100 Single point approved load cell, C3, Max=100kg. Aluminium alloy, IP65 protection degree, 350 Ohm output resistance.

Consult
SPBC200 Single point approved load cell, C3, Max=200kg. Aluminium alloy, IP65 protection degree, 350 Ohm output resistance.

Consult
SPBC300 Single point approved load cell, C3, Max=300kg. Aluminium alloy, IP65 protection degree, 350 Ohm output resistance.

Consult
SPBC500 Single point approved load cell in aluminium alloy, IP65 protection degree, 500 kg capacity, C3 precision class, 350 Ohm output resistance.

Consult
SPBC630 Single point approved load cell, C3, Max=630kg. Aluminium alloy, IP65 protection degree, 350 Ohm output resistance.

Consult

Options

Options for ATEX version

Part # Description List Price Cart/Quote
LCCB Shielded cable 6x0.25 mm² (suitable for Ex zones). PVC inner sheath. Tinned copper braid shielding. PVC outer sheath, diameter 5.8 mm. Temperature range: -40 / +80 °C. Minimum bending radius >/= 6 x O.D. €/m. Maximum orderable length: 100 m (longer lengths available only upon request).

Consult
LCCBA Armoured cable 6x0.25 mm² (suitable for Ex zones). PVC inner sheath, diameter 5mm. Iron-zinc alloy armour. Transparent PVC outer sheath, 8 mm diameter. Temperature range: -15 / +70 °C. Minimum bending radius >/= 5 x O.D. €/m. Maximum orderable length: 100 m (longer lengths available only upon request).

Consult
EXCB6 Blue shielded cable 6x0.22 mm², only for EX i (2GD) assemblies. PVC inner sheath. Tinned copper braid shielding. Polyurethane outer sheath, diameter 5.8 mm. Temperature range: -40 / +80 °C. Minimum bending radius >/= 7 x O.D. €/m. Maximum orderable length: 100 m (longer lengths available only upon request).

Consult
CCATEX-1 Optional ATEX version for single load cell. Marking: ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga and ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).

Consult
CCATEX3GD ATEX certificate for each load cell. Marking: ATEX II 3G Ex nA IIC T6 Gc for gas and ATEX II 3D Ex tc IIIC T115°C Dc IP65 for dusts. Complete with manual and ATEX CE conformity declaration (available in EN, DE, FR and IT).

Consult
