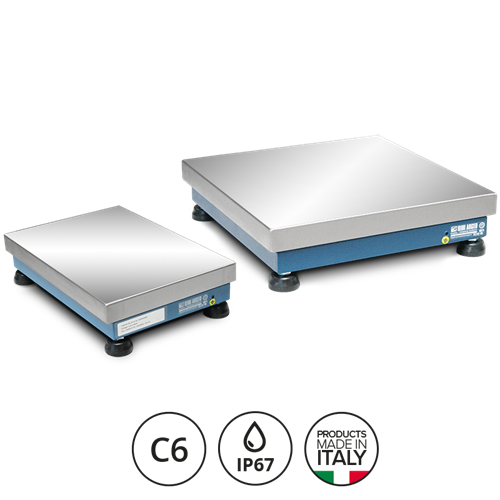

T C6 Series Single-Cell Platforms
- Functions with a C6 6000e approved aluminium “single point” load cell according to OIML R60 standards with protection against dust and water splashes according to IP67 standards (350 Ohm input resistance).
- Steel tubular structure, oven-fire painted blue, with adjustable resting feet and level.
- Fitted with AISI 304 satin finish stainless steel loading surface.
- Up to 15 Vdc power supply.
- Shielded 3m connection cable with connectors (IP65) for connection to the indicator.
- Special sizes and capacities (upon estimate).
Painted Steel. Load cell in Aluminium. IP67 protection rating.
Precision class C3MI, C6, C6MR.
Small and medium capacity electronic platforms with a AISI304 stainless steel surface.
- Up to 30000d resolution.
- OIML R60 C6.
- IP67 protection.
Specifications
|
Multi Interval Version "-MI" The T and TE series scales are available in a 2x3000e multi-range approved version, the best combination of accuracy and ease of use for a class C3 approved weighing instrument. Compared to the more common multi-range type approval, the multi-interval type approval offers ADAPTIVE measurement resolution, which automatically varies by adjusting to the weight being measured. NOTE: Multi-interval models are distinguished by the final "-MI" abbreviation and must be paired with a DFW or 3590 series Dini Argeo indicator, DiniCal calibration service and ECEM2MI approval service. |
Options for ATEX Version CCATEX: ATEX certificate for each load cell. DCATEX2GD: Declaration of ATEX conformity of whole PLATFORM + ATEX 2GD DINI ARGEO INDICATOR. DCATEX3GD: Declaration of ATEX conformity of whole PLATFORM + ATEX 3GD DINI ARGEO INDICATOR. |
Available Upon Price Estimate Belt and roller units to be applied on the loading Surface. Special sizes and capacities. |
Available Versions
| Code | l x w x h (mm) | Max (kg) | d (g) | M (g*) | d HR (g)* |
|---|---|---|---|---|---|
| TS3C6 | 230x330x93 | 3 | 0,5 | See table below | 0,1 |
| TS3C6-MI | 230x330x93 | 3 | -- | 0,5/1 (Multi interval) | -- |
| TS6C6 | 230x330x93 | 6 | 1 | See table below | 0,2 |
| TS6C6-MI | 230x330x93 | 6 | -- | 1/2 (Multi interval) | -- |
| TS12C6 | 230x330x93 | 12 | 2 | See table below | 0,5 |
| TS12C6-MI | 230x330x93 | 12 | -- | 2/5 (Multi interval) | -- |
| TT6C6 | 330x330x93 | 6 | 1 | See table below | 0,2 |
| TT6C6-MI | 330x330x93 | 6 | -- | 1/2 (Multi interval) | - |
| TT12C6 | 330x330x93 | 12 | 2 | See table below | 0,5 |
| TT12C6-MI | 330x330x93 | 12 | -- | 2/5 (Multi interval) | -- |
| TT30C6 | 330x330x93 | 30 | 5 | See table below | 1 |
| TT30C6-MI | 330x330x93 | 30 | -- | 5/10 (Multi interval) | -- |
| TQ12C6 | 400x400x115 | 12 | 5 | See table below | -- |
| TQ12C6-MI | 400x400x115 | 12 | -- | 2/5 (Multi interval) | -- |
| TQ30C6 | 400x400x115 | 30 | 5 | See table below | 1 |
| TQ30C6-MI | 400x400x115 | 30 | -- | 5/10 (Multi interval) | -- |
| TQ60C6 | 400x400x115 | 60 | 10 | See table below | 2 |
| TQ60C6-MI | 400x400x115 | 60 | -- | 10/20 (Multi interval) | -- |
(*) Divisions obtainable only with the relative options, in combination with Dini Argeo weight indicator.
Multi-interval Versions
| C3 | C6 | |||||
|---|---|---|---|---|---|---|
| ECEM2 MI 2x3000e |
ECEM-C6 6000e |
ECEM2-C6 6000+6000e |
||||
| Max (kg) | e (g) | Max (kg) | e (g) | Max (kg) | e (g) | |
| TS 230x330x90mm |
3 | 0,5/1 | 3 | 0,5 | -- | -- |
| 6 | 1/2 | 6 | 1 | 3/6 | 0,5/1 | |
| 12 | 2/5 | -- | -- | -- | -- | |
| -- | -- | 12 | 2 | 6/12 | 1/2 | |
| TT 330x330x90mm |
6 | 1/2 | 6 | 1 | 3/6 | 0,5/1 |
| 12 | 2/5 | -- | -- | -- | -- | |
| -- | -- | 12 | 2 | 6/12 | 1/2 | |
| 30 | 5/10 | 30 | 5 | 12/30 | 2/5 | |
|
TQ |
12 | 2/5 | -- | -- | -- | -- |
| -- | -- | 12 | 2 | 6/12 | 1/2 | |
| 30 | 5/10 | 30 | 5 | 12/30 | 2/5 | |
| 60 | 10/20 | 60 | 10 | 30/60 | 5/10 | |
Parts
Available Versions
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
TS3C6 | Platform made of painted steel, IP67, Max=3kg, d=0,5g, 230x330mm loading surface made of AISI304 stainless steel. 3m shielded cable. Aluminium load cell in C6 class. Optional calibration and approval services. |
Consult |
|
|
|
TS6C6 | Platform made of painted steel, IP67, Max=6kg, d=1g, 230x330mm loading surface made of AISI304 stainless steel. 3m shielded cable. Aluminium load cell in C6 class. Optional calibration and approval services. |
Consult |
|
|
|
TS12C6 | Platform made of painted steel, IP67, Max=12kg, d=2g, 230x330mm loading surface made of AISI304 stainless steel. 3m shielded cable. Aluminium load cell in C6 class. Optional calibration and approval services. |
Consult |
|
|
TT6C6 | Platform made of painted steel, IP67, Max=6kg, d=1g, 330x330mm loading surface made of AISI304 stainless steel. 3m shielded cable. Aluminium load cell in C6 class. Optional calibration and approval services. |
Consult |
|
|
|
TT12C6 | Platform made of painted steel, IP67, Max=12kg, d=2g, 330x330mm loading surface made of AISI304 stainless steel. 3m shielded cable. Aluminium load cell in C6 class. Optional calibration and approval services. |
Consult |
|
|
|
TT30C6 | Platform made of painted steel, IP67, Max=30kg, d=5g, 330x330mm loading surface made of AISI304 stainless steel. 3m shielded cable. Aluminium load cell in C6 class. Optional calibration and approval services. |
Consult |
|
|
|
TQ30C6 | Platform made of painted steel, IP67, Max=30kg, d=5g, 400x400mm loading surface made of AISI304 stainless steel. 3m shielded cable. Aluminium load cell in C6 class. Optional calibration and approval services. |
Consult |
|
|
|
TQ60C6 | Platform made of painted steel, IP67, Max=60kg, d=10g, 400x400mm loading surface made of AISI304 stainless steel. 3m shielded cable. Aluminium load cell in C6 class. Optional calibration and approval services. |
Consult |
Options
Calibration service with weight indicator
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
DINICAL | Connection to a Dini Argeo indicator and calibration. NET PRICE (*). |
Consult |
|
|
|
DINICAL-DRC | Connection to a Dini Argeo indicator and calibration. NET PRICE. |
Consult |
Legal for trade approval , class III or IIII, with Dini Argeo indicator (only at time of order)
HR calibration (high resolution) with Dini Argeo indicator (only at time of order)
Connection cables
Options for ATEX version (only at time of order)
IP68 protection

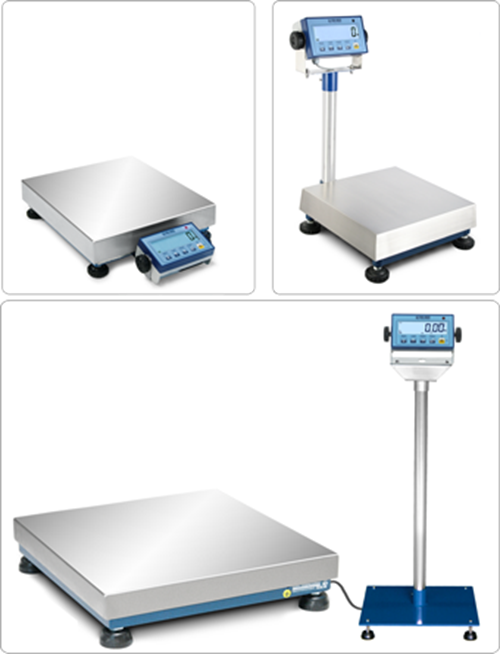

Columns, supports brackets, visors
Charts for mobile weighing applications
Raising Frame
Calibration service with Dini Argeo indicator (only at time of order)
Related Products

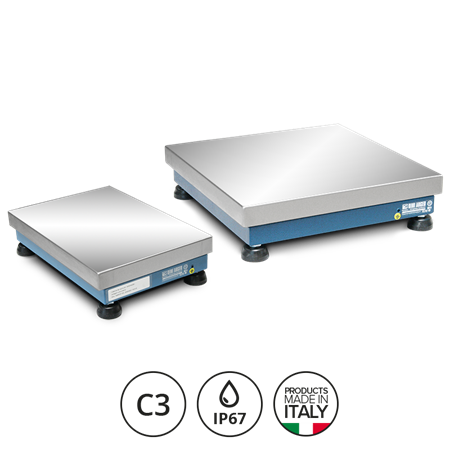

T Series Single Cell Platforms
Small and medium capacity electronic platforms with a AISI304 stainless steel surface.

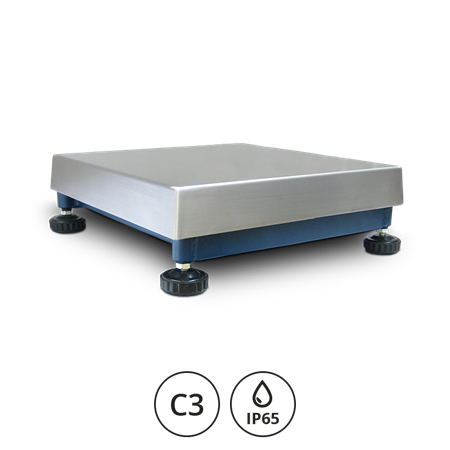

PB SERIES SINGLE-CELL PLATFORMS
Small and medium capacity electronic platforms with a stainless steel surface having a precise and sturdy structure.

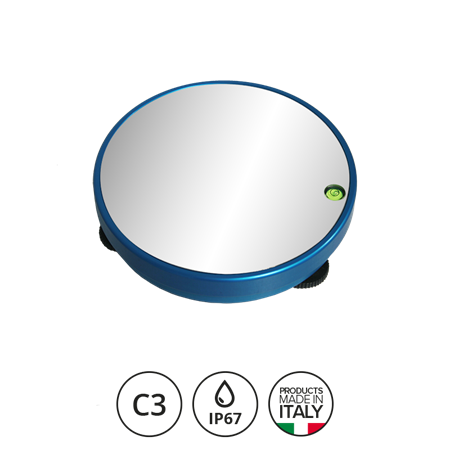

RPLC Series Single Cell Round Platforms
