Product PDF

5 kg Calibration Weight Set, ASTM Class 5

  • Stainless steel weights designed to meet NIST Handbook 44 and ASTM E617-23
  • Class 5 tolerances
  • Sealing cavity for adjustment for most weights
  • Serial numbers may be stamped on weights (option)
  • Nominal value marked on weights
Request More Information

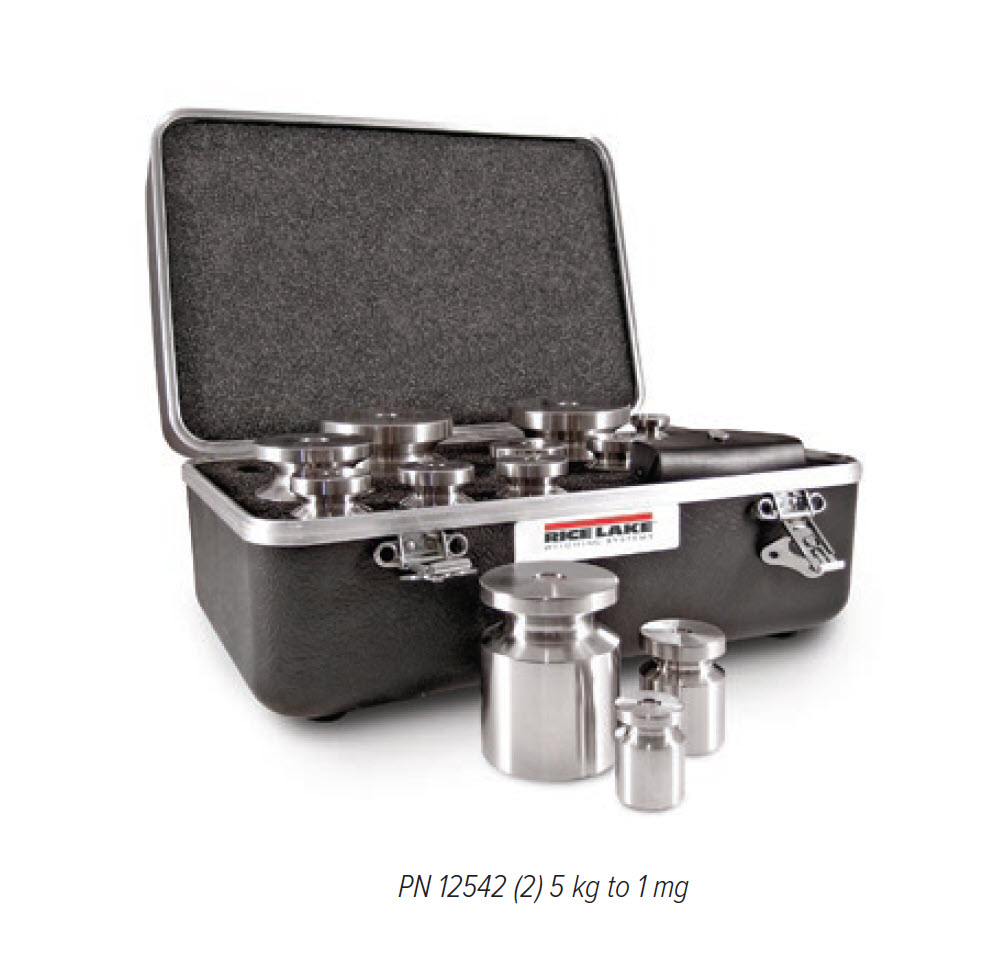

PN 12542 Calibration Weight Set 5Kg To 1Mg

Applications:

5 kg - 1 mg (2) 5 kg - 1 mg 5 kg - 10 mg (2) 5 kg - 10 mg 5 kg - 1 g (2) 5 kg - 1 g (3) 5 kg
1 - 5 kg 2 - 5 kg 1 - 5 kg 2 - 5 kg 1 - 5 kg 2 - 5 kg 3 - 5 kg
2 - 2 kg 2 - 2 kg 2 - 2 kg 2 - 2 kg 2 - 2 kg 2 - 2 kg
1 - 1 kg 1 - 1 kg 1 - 1 kg 1 - 1 kg 1 - 1 kg 1 - 1 kg
1 - 500 g 5 - 500 g 1 - 500 g 5 - 500 g 1 - 500 g 5 - 500 g
2 - 200 g 2 - 200 g 2 - 200 g 2 - 200 g 2 - 200 g 2 - 200 g
1 - 100 g 1 - 100 g 1 - 100 g 1 - 100 g 1 - 100 g 1 - 100 g
1 - 50 g 1 - 50 g 1 - 50 g 1 - 50 g 1 - 50 g 1 - 50 g
2 - 20 g 2 - 20 g 2 - 20 g 2 - 20 g 2 - 20 g 2 - 20 g
1 - 10 g 1 - 10 g 1 - 10 g 1 - 10 g 1 - 10 g 1 - 10 g
1 - 5 g 1 - 5 g 1 - 5 g 1 - 5 g 1 - 5 g 1 - 5 g
2 - 2 g 2 - 2 g 2 - 2 g 2 - 2 g 2 - 2 g 2 - 2 g
1 - 1 g 1 - 1 g 1 - 1 g 1 - 1 g 1 - 1 g 1 - 1 g
1 - 500 mg 1 - 500 mg 1 - 500 mg 1 - 500 mg
2 - 200 mg 2 - 200 mg 2 - 200 mg 2 - 200 mg
1 - 100 mg 1 - 100 mg 1 - 100 mg 1 - 100 mg
1 - 50 mg 1 - 50 mg 1 - 50 mg 1 - 50 mg
2 - 20 mg 2 - 20 mg 2 - 20 mg 2 - 20 mg
1 - 10 mg 1 - 10 mg 1 - 10 mg 1 - 10 mg
1 - 5 mg 1 - 5 mg
2 - 2 mg 2 - 2 mg
1 - 1 mg 1 - 1 mg
Piece Count
28 33 24 29 16 21 3
Total Weight
11.11 kg 18.11 kg 11.1111 kg 18.1111 kg 11.11 kg 18.110 kg 15 kg
Part # Part # Part # Part # Part # Part # Part #
12537 12542 12536 12539 12535 12538 12562

Resources / Downloads

Title View Email Category Type
Class F Calibration Weights No Longer Sold for Legal Metrology Use Starting January 2020 View Email Calibration Weights/Services|Test / Calibration Weights|Calibration Services Articles
How to Pack Your Weights in 5 Steps Email Calibration Weights/Services|Calibration Services Articles
Are All Calibrations The Same? Email Calibration Services|Calibration Weights/Services|Test / Calibration Weights Articles

Title Download Email
Stainless Filed Weights 5 kg Metric Sets Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
Calibration Weights ASTM and NIST Classification Request Download Email Calibration Weights

Title View Download Email Category
Know Your Classification for Accuracy View Email Precision Measurement

Parts

Part # Description List Price Cart / Quote
12537 Weight Set,5kg-1mg ASTM Class 5 SST Satin (5221) 11.11111kg Kit

List Price: $935.00
12542 Weight Set,5kg-1mg ASTM Class 5 SST Satin 18.11111kg Kit

List Price: $1,390.00
12536 Weight Set,5kg-10mg ASTM Class 5 SST Satin (5221) 11.1111kg Kit

List Price: $870.00
12539 Weight Set,5kg-10mg ASTM NIST Class 5 SST Satin 18.1111kg Kit

List Price: $1,220.00
12535 Weight Set,5kg-1g ASTM Class 5 SST Satin (5221) 11.11kg Kit

List Price: $825.00
12538 Weight Set,5kg-1g ASTM Class 5 SST Satin 18.11kg Kit

List Price: $1,190.00
12562 Weight Set,5kg ASTM Class 5 SST Satin 15kg Kit

List Price: $1,050.00

Options

Accessories

Part # Description List Price Cart / Quote
36092 Form,Statement of Accuracy

List Price: $47.50
11758 Cover,Al Disk

List Price: $45.50
65640 Forceps,Weight 3-1/8 Long Metal SST

List Price: $22.25
25836 Serial Number

List Price: $17.00
152414 Tweezers,Curved Tip 130 mm, Tips made of nylon.

List Price: $45.50

Replacement Cases

Secondary Leatherette Case

Case Inserts (leaf weight cover not included)
