Condec REGulator Series

  • Same quality Regulator as used in our Portable Pressure Calibrators
  • Low Torque required by operator for pressure adjustment
  • Single Stage, Venting Type with spring controlled piston
  • Integral inlet filter used to promote long life when used in clean systems

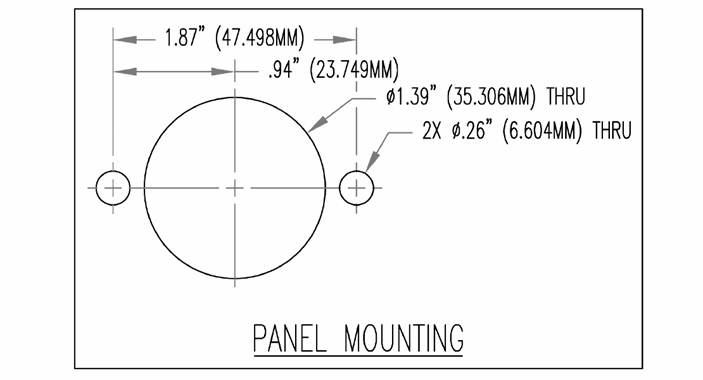

  • Adjustable Panel Mounting, see diagram on next page for dimensional requirements
  • May be integrated with one of our Burst Discs and/or Pressure Relief Valves for FAIL SAFE operator safety when installing in a system. When integrated with one of our CONDEC patented fingertip-adjustable Orion Series or MPV Needle Valves, you will have the advantages of proper regulation of your source, as well as precise finger-tip adjustment of your downstream system output
Request More Information
Portals 0 Products 9Aefbb601b894f9592ee099d4c5b12d8 Orig

Condec's REGulator Series may be integrated with one of our burst discs and/or pressure relief valves for fail safe operator safety when installing in a system. When integrated with one of our CONDEC patented fingertip-adjustable Orion Series or MPV needle valves, you will have the advantages of proper regulation of your source, as well as precise fingertip adjustment of your downstream system output.

Data:
Maximum Primary (inlet) Pressure:
3000 psig (206.9 Bar)
4 Ports Standard:
2 Inlet Ports - 1/4-18 NPT
2 Outlet Ports - 1/4-18 NPT
Operating Temperature:
0ºF to +140ºF (-18ºC to +60ºC)

Materials:
Body: Aluminum
Cartridge Valve: Teflon, Brass, Stainless Steel
Seals: Nitrile

 Dimensions:
Height: Approximately 7-1/2 inches (190 mm) when fully opened
Body Diameter: 2 inches (50.8 mm)
Port Dimensions From Bottom of Base: 13/32 in. (10.3 mm)
Panel Mount Adjustment (from bottom of regulator base to rear surface of panel): 3 to 4 inches
(76.2 mm to 101.6 mm)

Resources / Downloads

Title Download Email
Condec REGulator Catalog Page Download Email

Parts

Part # Description List Price Cart / Quote
115811 Regulator, REG 500 Pressure Rating 3000 PSIG/206.9 Bar Input 500 PSIG/34.5 Bar Output 2 Inlet Ports - 1/4-18 NPT, 2 Outlet Ports - 1/4-18 NPT Panel Mount Adjustment (from bottom of regulator base to rear surface of panel) 3in to 4in (76.2mm to 101.6mm)

Consult
106061 Regulator, REG 1000 Press Rating 3000 PSIG/206.9 Bar Input, 1000 PSIG/68.96 Bar Output 2 Inlet Ports - 1/4-18 NPT, 2 Outlet Ports - 1/4-18 NPT Panel Mount Adjustment (from bottom of regulator base to rear surface of panel) 3in to 4in (76.2mm to 101.6mm)

Consult
106062 Regulator, REG 2000 Press Rating 3000 PSIG/206.9 Bar Input, 2000 PSIG/137.93 Bar Output 2 Inlet Ports - 1/4-18 NPT, 2 Outlet Ports - 1/4-18 NPT Panel Mount Adjustment (from bottom of regulator base to rear surface of panel) 3in to 4in (76.2mm to 101.6mm)

Consult
104793 Regulator, REG 3000 Press Rating 3000 PSIG/206.9 Bar Input, 3000 PSIG/206.9 Bar Output 2 Inlet Ports - 1/4-18 NPT, 2 Outlet Ports - 1/4-18 NPT Panel Mount Adjustment (from bottom of regulator base to rear surface of panel) 3in to 4in (76.2mm to 101.6mm)

Consult
