Product PDF

Digital Baby Scale - Suspended Infant

  • Hold function
  • Units of measure lb/lb, oz/kg
  • Adjustable automatic shut-off
  • Ergonomic handheld design
  • Battery operated, two AA batteries (included)
  • Carrying case and top s-hook (included)
  • Captured lower hook, removable upper hook (both hooks included)

Same-day Shipping Available

Request Quote

Approvals

Some approval documents are available to view by clicking the icons below.

CE Mark

WARNING: Cancer and Reproductive Harm California Proposition 65

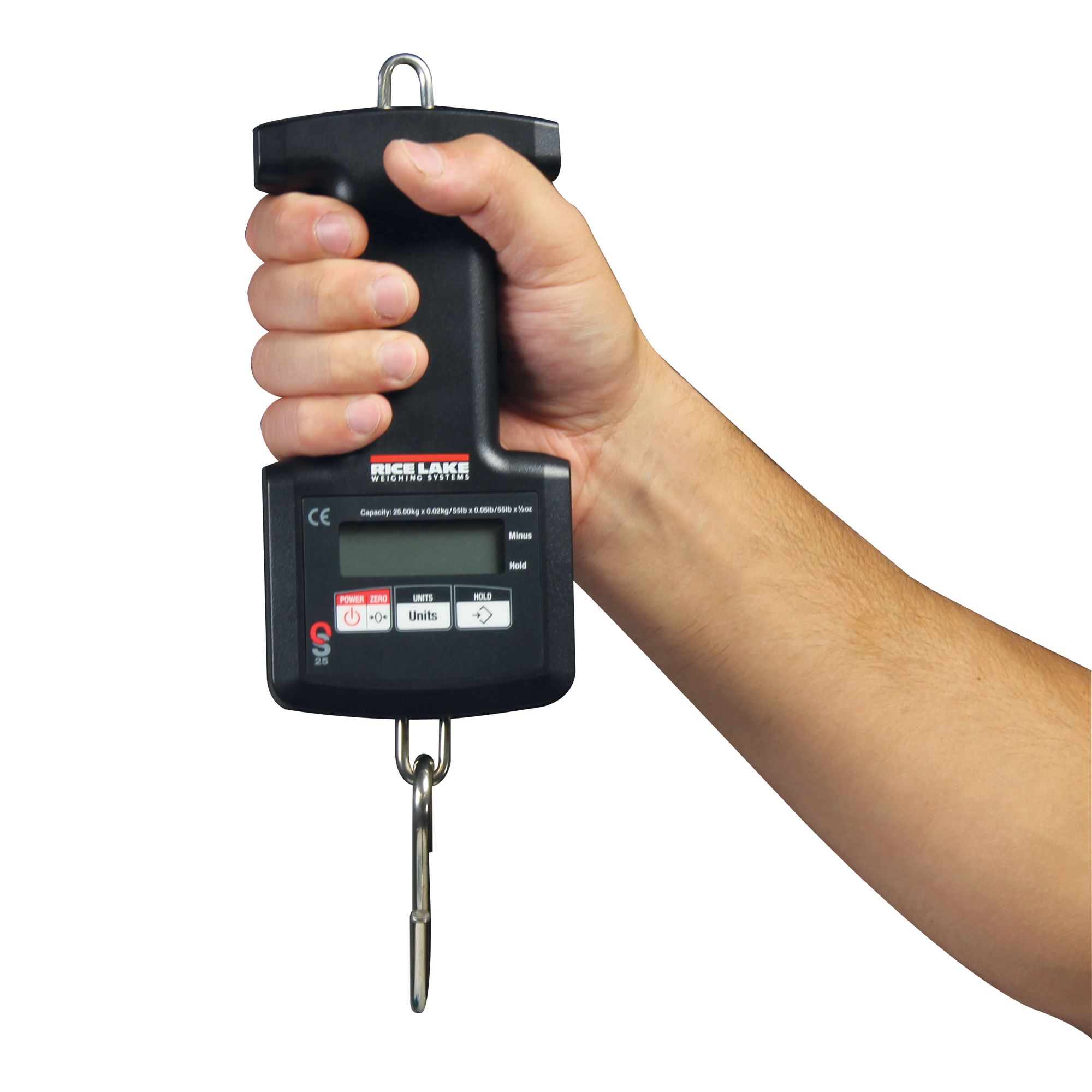

Digital Baby Scale - Suspended Infant with S hook

Easy, On-site Weighing

The OS-10/OS-25/OS-45 suspended infant scale is a portable device for the safe, accurate weighing of infants and toddlers up to 99 lbs (45 kgs). Designed for use in any health environment, the OS-10/OS-25/OS-45 suspended infant scale is easily transported and powered by two AA batteries. Conveniently lift the infant using the sturdy steel s-hook attached to the optional canvas trousers. This pediatric scale is versatile in its applications, and the innovative weighing technique captures vital information safely and accurately.

Capacity:
OS-10:
22 lb × 0.02 lb
22 lb × 0.25 oz
10 kg × 0.01 kg
OS-25:
55 lb × 0.05 lb
55 lb × 0.5 oz
25 kg × 0.02 kg
OS-45:
99 lb × 0.1 lb
99 lb × 1 oz
45 kg × 0.05 kg

Power:
Two AA batteries (included)

Operating Temperature:
32 °F to 104 °F (0 °C to 40 °C)

Warranty:
One-year limited

Approvals:
CE Approved

Dimensions
  Inches Centimeters
A 14.3 36.3
B 3.6 9.2
C 1.3 3.2
D 11.6 29.4





Shipping Weight
Part # Model # L (in) W (in) H (in) Package Wgt. (lb) Dim Wgt. (lb) Shipping Wgt. (lb)
130292 OS-10 10 5 3 2 2 2
130293 OS-25 10 5 3 2 2 2
130294 OS-45 10 5 3 2 2 2





Resources / Downloads

Title Download Email
Digital Baby Scale - Suspended Infant Scale Catalog Page Download Email

Title Version Revision Download Email Category Archived
OS-10/OS-25/OS-45 Hanging Scale Operator Guide (Multilingual) C Download Email Overhead Weighing Systems|Hanging Scales No

Title Collateral Wizard Request Download Email Category
Digital Baby Scale, Suspended Sling OS-10/25/45 Request Download Email Health Scales|Pediatric Scales

Title View Download Email Category
Health Scale Product Line Overview View Download Email Health Scales|Wheelchair Scales|Chair Scales|Pediatric Scales|Mechanical Health Scales|Home Health Scales
Accurate Patient Weighing With Rice Lake View Download Email Health Scales
Proper Patient Weighing for Rice Lake Pediatric Scales View Download Email Health Scales|Pediatric Scales

Title Download Email Category
Digital Baby Scale - Suspended Infant Scale Warranty Download Email Health Scales

Title Download Email Category
Prescription Dosing Depends on Weight Download Email Health Scales

Parts

Part # Description List Price Cart / Quote
130292 Scale, Hanging OS-10 10kg x 0.01kg/22lb x 0.02lb/22lb x 1/4oz Includes carrying case, 2 AA size Alkaline Batteries, manual Bottom hook fully attached, top hook removable

List Price: $95.00
130293 Scale, Hanging OS-25 25kg x 0.02kg/55lb x 0.05lb/55lb x 1/2oz Includes carrying case, 2 AA size Alkaline Batteries, manual Bottom hook fully attached, top hook removable

List Price: $95.00
130294 Scale, Hanging OS-45 45kg x 0.05kg/99lb x 0.1lb/99lb x 1oz Includes carrying case, 2 AA size Alkaline Batteries, manual Bottom hook fully attached, top hook removable

List Price: $95.00

Options

Part # Description List Price Cart / Quote

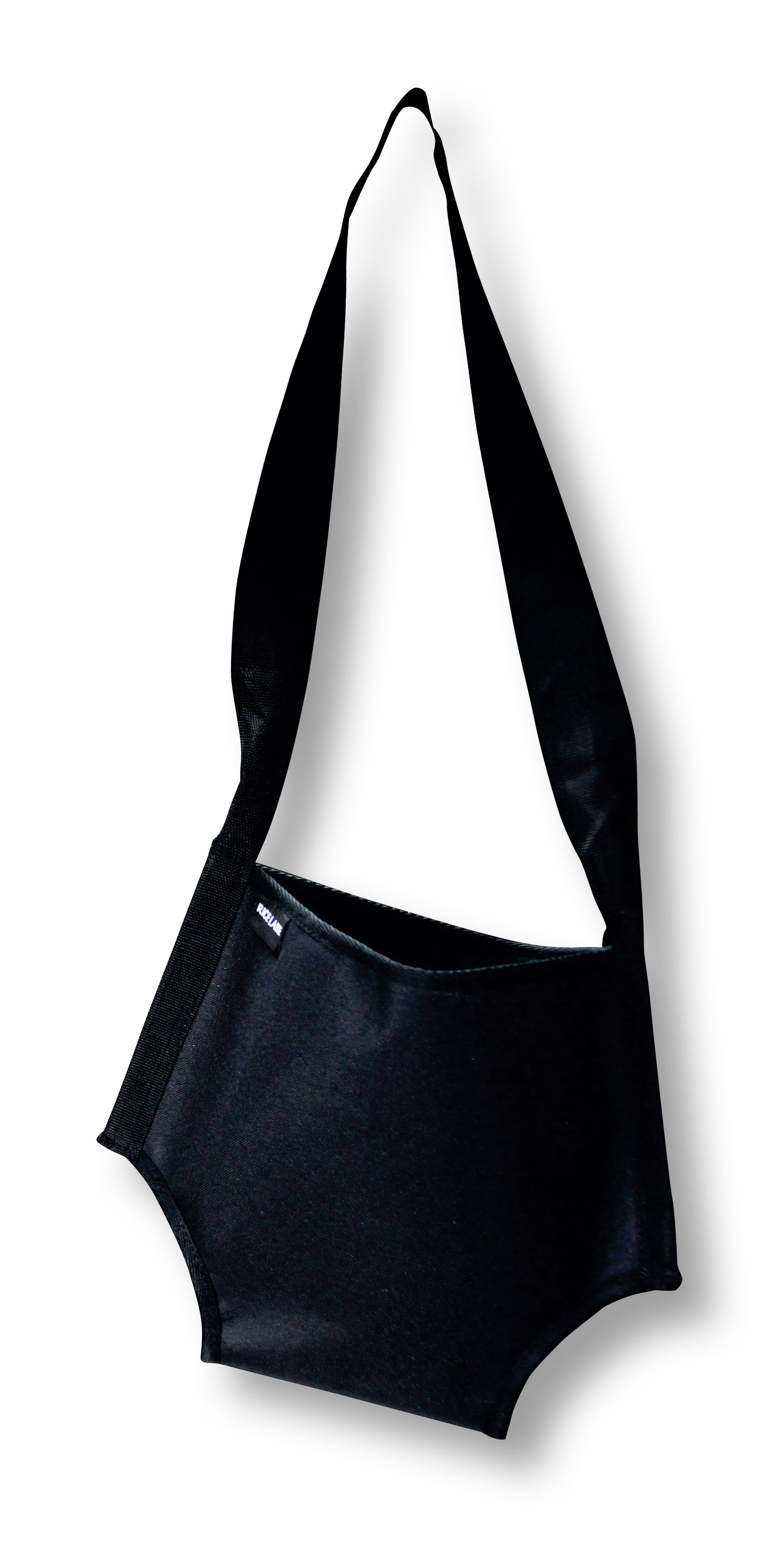

141444 Sling Seat, Suspended Infant Scale Option for OS-10, OS-25, OS-45

List Price: $6.00
