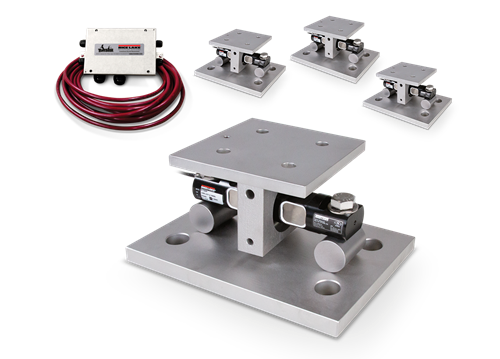

EZ Mount 1 Weigh Module with MLC Coated RL72020 Load Cell

Complete Kit Includes

  • Three or four EZ Mount 1 stainless steel compression mounts with coated RL72020 MLC Coated NTEP Certified double-ended shear beam load cells
  • One JB4SS NEMA Type 4X stainless steel signal trim junction box
  • 25 ft of hostile environment EL147HE SURVIVOR® load cell cable

Standard Features

  • Capacities (per module): 5,000 to 150,000 lb
  • Unique sliding pin design compensates for thermal expansion/contraction
  • Stainless steel construction (mount)
  • Self-checking
  • Easy load cell replacement
  • Simplified design allows bolting directly to tank and floor
  • Center-loaded double-ended shear beam design
  • Low-profile design

Applications

  • Medium to heavy capacity tank and fertilizer hopper weighing applications

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO FM CUS

WARNING: Cancer and Reproductive Harm California Proposition 65

Accurate and Dependable Weigh Module

The EZ Mount 1 Series weigh module utilizes the double-ended beam design with an articulating top plate to provide superior accuracy in any loading condition. The double-ended beam design means there is less cumbersome hardware and each module has a lower profile than modules of different configurations. NTEP Certified and FM approved coated RL72020 load cells give you accuracy and dependability in many applications, including intrinsically safe and explosion proof areas.

Rated Capacity C C1 H H1 H2 L L1 L2 L3 L4 T W W1 W2 W3
lb/in
5,000 to 20,000 0.56 1.06 5.31 0.75 0.50 11.00 8.00 3.00 6.00 6.87 5/8-18 UNF 7.50 4.00 3.00 6.00
30,000 to 60,000 0.68 1.19 8.43 1.00 0.75 15.00 11.50 5.12 8.00 8.50 1-14 UNS 10.00 6.00 5.12 8.00
100,000 to 150,000 0.81 1.38 10.37 1.25 1.25 18.00 14.00 7.50 10.00 9.50 1-14 UNS 12.00 9.00 7.50 10.00

Resources / Downloads

Title Download Email
EZ Mount 1 with Coated RL72020P Catalog Page Download Email

Title Version Revision Download Email Category Archived
EZ Mount Load Cell Mounting Kit Installation Manual (Archived) E Download Email Weigh Modules|Rice Lake Weigh Modules Yes
Load Cell and Weigh Module Handbook D Download Email Load Cells|Weigh Modules No
EZ Mount Load Cell Mounting Kit Installation Manual F Download Email Rice Lake Weigh Modules|Weigh Modules No

Title Download Email
Weigh Module Application Download Email

Title Collateral Wizard Request Download Email Category
MLC Load Cell Kits Download Email Load Cells|Single-Ended Beam Load Cells|Double-Ended Beam Load Cells
EZ Mount 1 Medium to Heavy Capacity Mount Assembly Request Download Email Weigh Modules
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules
Load Cell Selection Guide Request Download Email Load Cells|Weigh Modules

Title View Download Email Category
Custom Weigh Modules and Load Cell Mounts View Download Email Weigh Modules|Load Cells|Load Cell Hardware|Hardware

Title Download Email Category
Properly Welding on Structures with Load Cells Download Email Load Cells

Parts

Single Module (Does NOT Include Load Cell)

Part # Description List Price Cart / Quote
17943 Mount,EZ Mount 1 5,000- 20,000 lb SST Compression No Cell

List Price: $885.00

17944 Mount,EZ Mount 1 30,000- 60,000 lb SST Compression No Cell

List Price: $2,450.00

17945 Mount,EZ Mount 1 100,000 lb SST Compression No Cell

List Price: $4,480.00

29011 Mount,EZ Mount 1 150,000 lb SST Compression No Cell

List Price: $4,480.00

3-Module Kit

4-Module Kit

Options

Dummy Load Cells (Mild Steel)

Part # Description List Price Cart / Quote
33749 Dummy Load Cell, RL72020/RL70000 series 5K-20K Mild Steel

List Price: $90.00

74016 Dummy Load Cell RL72020/RL70000 series 30K-60K Mild Steel

List Price: $122.00

94175 Dummy Load Cell RL72020/RL70000 series 100K Mild Steel

List Price: $265.00

158715 Dummy Load Cell RL72020/RL70000 series 150K Mild Steel

List Price: $265.00

Grounding Kit

Related Products

rl-RL72020P-load-cell

Rice Lake RL72020 MLC Coated Alloy Steel, Double-Ended Beam Load Cell

Ideal for fertilizer, tank and hopper applications, the RL72020 is a coated alloy steel, double-ended beam load cell. Capacities range from 5,000 lb to 250,000 lb and the RL7020P comes with 30 ft of load cell cable.
