LaserLT-60 and LaserLT-100 Large-Display Weight Indicators

  • LED Display
  • Integrated five-key waterproof keypad
  • Includes removable back wall mount bracket
  • Up to four independent scales or four load cell inputs
  • Quick menu for real and theoretical calibration
  • Up to three calibration linearization points
  • Semi-automatic and presettable tare
  • Two digital outputs for 13 setpoint types with timers to enable on and delay period
  • Two digital inputs for operating keys remotely
Request More Information

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO Measurementcanada Approved BW CE Mark

WARNING: Cancer and Reproductive Harm California Proposition 65

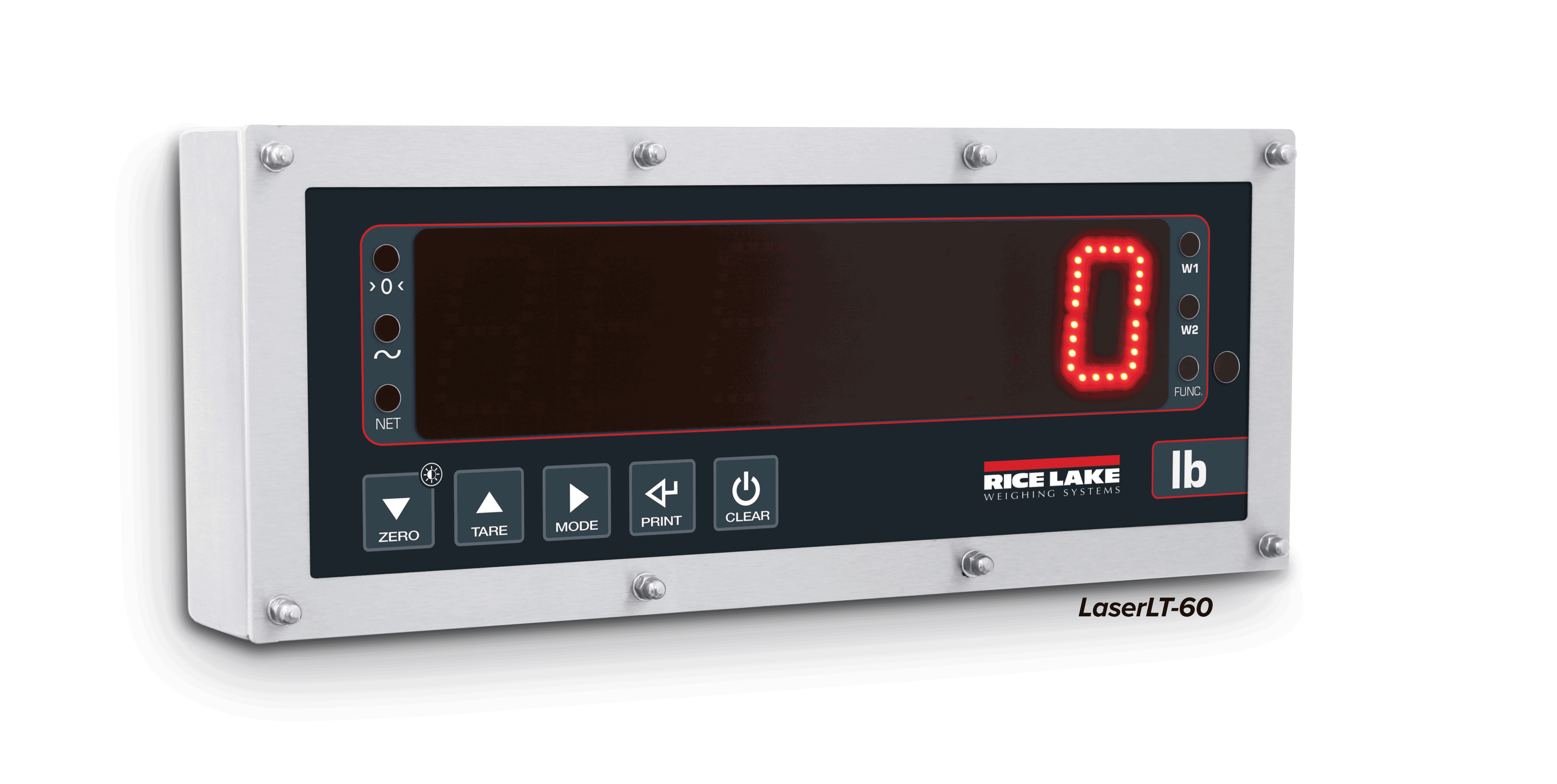

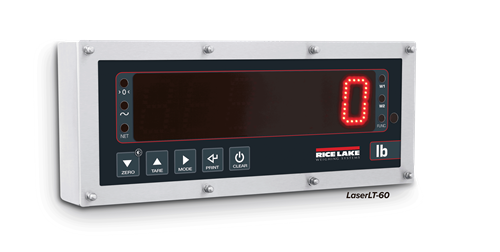

WEB US Laserlt 60

Large-display Digital Weight Indicator

Use the LaserLT-60 and LaserLT-100  to clearly display weight information at distances up to 150 feet. The displays are ideal for applications where weight needs to be viewed from a distance. Both models operate with a range of weight indicators to easily integrate with any system. The incoming format can be interfaced through a set function or with a manual setup.

Indicators are NTEP Certified when loaded with SCT-1100 firmware. LaserLT-60/100 are configurable weight indicators.

The LaserLT-60 and LaserLT-100 are designed for indoor, outdoor and washdown applications. With adjustable brightness, the six-digit, seven-segment character LED displays are easy to read even in direct sunlight. The stainless steel enclosure is weathertight with an IP68 rating. With a standard anti-condensation air valve regulating humidity and pressure, these displays are protected for outdoor use.

The LaserLT-60 and LaserLT-100 are easy to mount with standard back brackets or optional side-mounting brackets. The back brackets have a 15-degree angle for clear visibility from below and side-mounting brackets can be used to support, hang or wall mount the remote display.

Power:
AC voltages: 100 to 240 VAC
DC voltages: 12 to 24 VDC

Excitation Voltage:
5 VDC, 120 mA, 16 × 350 ohm

Analog Signal Input Range:
± 39 mV

Analog Signal Sensitivity:
0.03 μV/graduation minimum
0.3 μV/graduation recommended

A/D Sample Rate:
Four channel A/D up to 200 Conv./sec. auto select

Resolution:
Internal: 1,500,000 counts
Display: 800,000

Digital I/O:
Two inputs: 12/24 VDC
Two outputs: 150 mA 48 VAC/150 mA 60 VDC

Communication Ports:
(1) RS-232, (1) RS-485

Display:
6-digit, 7-segment discrete
red LED lamps, single width
2.4 in (60 mm) or 4 in (100 mm) digit
Decimal/comma indication in any position
Annunciators for NT, Stability, COZ
5 levels of intensity

Maximum Viewing Distance:
LaserLT-60: 2.4 in digit 75 ft (25 m)
LaserLT-100: 4 in digit 100 ft (30 m)

Keys/Buttons:
Five key, Zero (Down), Tare (Up),
Mode (Right), Print (Enter), C (On/Off)

Temperature:
-40° F to 120° F (-40° C to 49° C)

Rating/Material:
304 stainless steel, IP68

Weight:
10 lb (4.5 kg)

Warranty:
One-year limited

Approvals:
NTEP CC 20-046 III/IIIL 10,000d
Measurement Canada AM-6165C III/IIIL 10,000d
CE Marked



LaserLT-60
A 16.14 in (410 mm) D 7.28 in (185 mm)
B 6.50 in (165 mm) E 2.64 in (67 mm)
C 3.03 in (77 mm) F 4.84 in (123 mm)
LaserLT-100
A 16.93 in (430 mm) D 7.63 in (194 mm)
B 7.28 in (185 mm) E 2.52 in (64 mm)
C 2.52 in (64 mm) F 3.98 in (101 mm)

Resources / Downloads

Title Download Email
LaserLT-60/LaserLT-100 Remote Display or Weight Indicators Catalog Page Download Email

Title Version Revision Download Email Category Archived
LaserLT-60 and LaserLT-100 Large-Display Weight Indicators Technical Manual 8.05 D Download Email Weight Indicators|Remote Displays / Scoreboards No
Loading Firmware Addendum A Download Email Indicators / Controllers|Remote Displays / Scoreboards No
SCT-1100 Advanced Series Weight Transmitter Technical Manual 8.05 D Download Email Indicators / Controllers No

Title Download Email
LaserLT-60 and LaserLT-100 Replacement Parts Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
LaserLT-60 and LaserLT-100 Request Download Email Weight Indicators|Remote Displays / Scoreboards

Title Version Size Release Date Download Email
LaserLT-60/100 Remote Display 8.02 1.4 MB 01/15/2020 Download Email
SCT-1100 and LaserLT-60/100 Weight Indicators 8.05 1.5 MB 01/15/2020 Download Email

Parts

Part # Description List Price Cart / Quote
197453 Indicator,LaserLT-60 Large-Display 60mm (2.4in) LED,12-24VDC/110-240VAC, SST Enclosure

List Price: $1,380.00
197454 Indicator,LaserLT-100 Large-Display, Red 100mm(4in)LED, 12-24VDC/110-240VAC, SST Encl

List Price: $1,765.00

Options

Part # Description List Price Cart / Quote
185256 Opt Kit,Tilting Brackets Side Mounting Bracket, 2 SST Angled Bracket for LaserLT-100

List Price: $65.00
185258 Visor,LaserLT-100 Display SST Visor

List Price: $165.00

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
