MS200 Portable Monorail Scale

  • 8-in live-rail designed to weigh one trolley at a time
  • 750 lb ×  0.5 lb (3/8 in rail)
  • 1500 lb × 0.5 lb (1/2 in rail)
  • Available for rail sizes 3/8 × 2-1/2 in or 1/2 × 2-1/2 in
  • Requires less than 41 in of straight rail to install (22 inch between tail hangers)
  • Nickel-plated mild steel and stainless steel construction available
  • High accuracy, stainless steel load cell
  • 20 ft of cable
  • Slightly recessed live-rail for the trolley roller provides stable weighments
Request More Information

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO Measurementcanada Approved BW

WARNING: Cancer and Reproductive Harm California Proposition 65

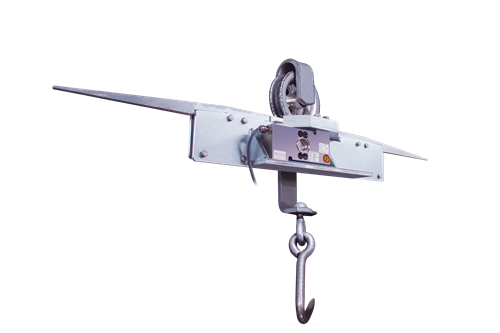

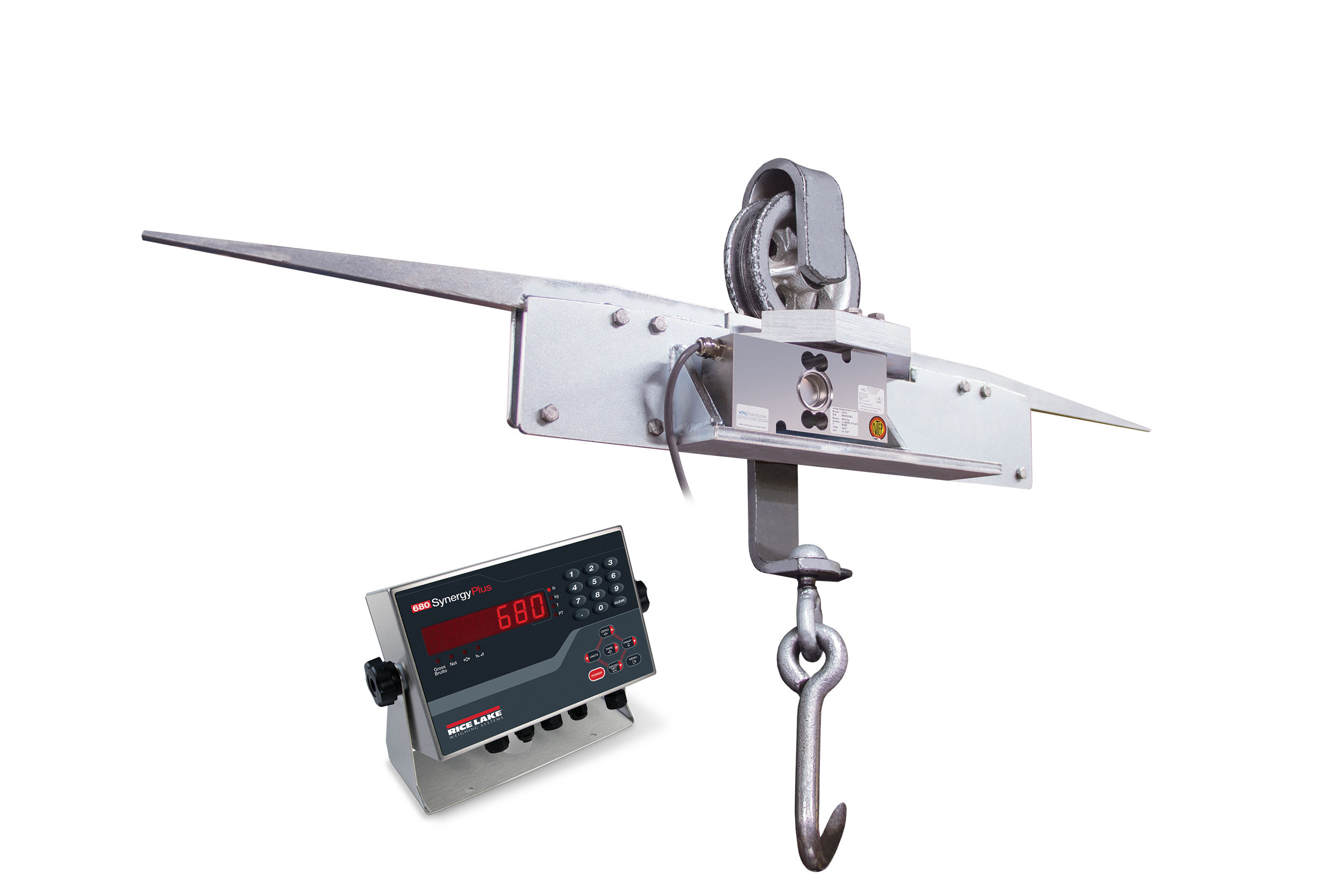

1 US Monorail Scale Portable

The MS200 portable monorail scale is designed to weigh one trolley and provides stable weighments. The MS200 portable monorail scale is designed to bolt right over your existing rail and is ideal for seasonal or temporary jobs. The scale body requires a 22-inch space between existing support hangers.

Construction:
Nickel-plated mild steel or stainless steel construction, stainless steel hardware

Load Cell Construction:
Stainless steel

Bridge Resistance:
750 lb: 350 ohm
1,500 lb: 1,000 ohm

Rated Output:
2 mV/V

Nonlinearity:
0.03% full scale

Warranty:
One-year limited

Approvals:
NTEP CC 90-003 Class III, 3,400d (Max)

Dimensions MS200 750 lb Capacity
A 21.00 in (533 mm)
B 8.00 in live rail (203 mm)
C 40.32 in (1,024 mm)
D 4.50 in (114 mm)
E 1.13 in (29 mm)

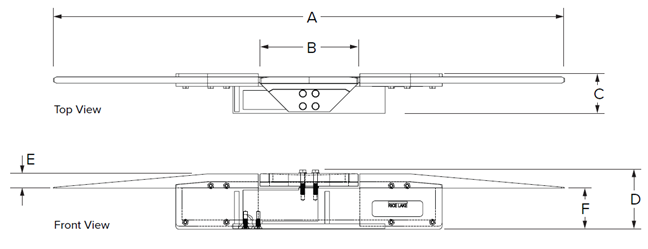

Dimensions MS200 1,500 lb Capacity
A 40.32 in (1,024 mm)
B 4.90 in (125 mm)
C 8.00 in live rail (203 mm)
D 5.19 in (132 mm)
E 3.46 in (88 mm)



Resources / Downloads

Title Download Email
MS200 Catalog Page Download Email

Title Version Revision Download Email Category Archived
MS200 and MS202 Monorail Scale Installation Manual C Download Email Monorail Scales No

Title Collateral Wizard Request Download Email Category
Monorail Scale Solutions Download Email Monorail Scales
Washdown Solutions Request Download Email Washdown Scales

Parts

MS200HB for 3/8-inch or 1/2-inch Rails

Part # Description List Price Cart / Quote
19743 Scale,Monorail MS200HB Portable 750x.5 lb NTEP III 1.5, Electroless Nickel Plated Mild Steel, Compatible with both 3/8" and 1/2" rails.

List Price: $2,400.00

MS200HB for 1/2-inch Rails

Options

Part # Description List Price Cart / Quote
16984 LIT,Installation Manual MS200 and MS202 Monorail Scale (English)

List Price: $5.00
167585 Load Cell,SPT 1510-500kg 20ft 2mv/v 350 Ohm TH SST WS NTEP III S Monorail

List Price: $842.00
227092 Load Cell, SPT RLPCBC-60, 1000kg, 2 mV/V, 1000 ohm, 20 ft, SS, HS, FM, IP69K, NTEP III 5 S

List Price: $1,025.00
216728 Monorail, Config and Cal Indicator Configuration and Monorail Calibration. Includes: Larger Crate Required for Indicator and Monorail Packaging.

List Price: $250.00
