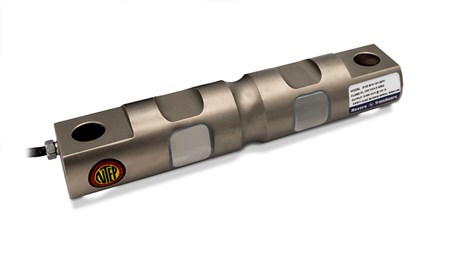

Rice Lake RL72020 MLC Coated Alloy Steel, Double-Ended Beam Load Cell

Full Scale Output:
3.0 mV/V

Output Resistance:
5 to 10 k: 703 (±4) ohm
20 to 150 k: 700 (±5) ohm
200 to 250 k: 700 (±5) ohm

Input Resistance:
5 to 10 k: 700 (±14) ohm
20 to 150 k: 770 (±10) ohm
200 to 250 k: 700(±14) ohm

Material/Finish:
Alloy steel, coated

Temperature:
Compensated:
14 °F to 104 °F (-10 °C to 40 °C)
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.02% full scale

Insulation Resistance:
5,000 megohm

Deflection at Capacity:
5,000 lb: 0.02 in
10,000 lb: 0.025 in
20,000 lb: 0.042 in
30,000 to 50,000 lb: 0.02 in
60,000 lb: 0.025 in
100,000 lb: 0.02 in

Cable Length:
30 ft

Cable Diameter:
5,000 to 20,000 lb: 0.200 in
30,000 to 250,000 lb: 0.305 in
Polyurethane jacket

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

Warranty:
Two-year limited

Approvals:
cFMus
NTEP 21-064
