RL1600 Series Stainless Steel Weigh Module with MLC Coated RL75016 Load Cell

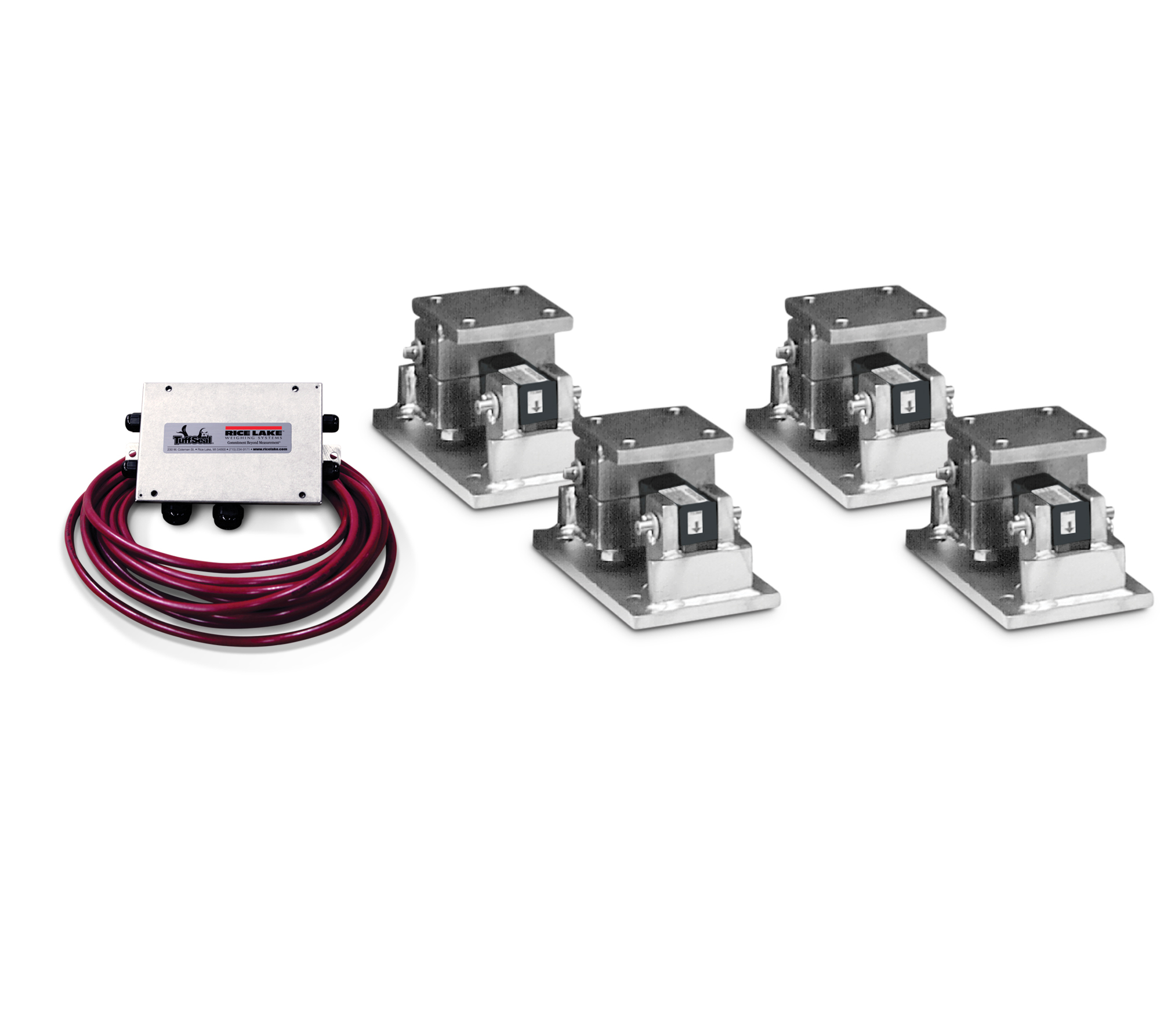

Complete Kit Includes

  • Three or four RL1600 stainless steel compression mounts with MLC coated RL75016 alloy steel, environmentally sealed, double ended shear beam load cells
  • One JB4SS NEMA Type 4X stainless steel signal trim junction box
  • 25 ft of hostile environment EL147HE SURVIVOR® load cell cable

Standard Features

  • Capacities (per module): 1,000 to 75,000 lb
  • Stainless steel construction (mounts)
  • Self-checking, easy-to-use design allows module to be bolted directly to tank leg without requiring additional mounting plates or load buttons
  • Double-ended shear beam design, center loaded

Applications

  • Medium-to heavy-capacity tanks, bins, and hoppers
  • Bulk material management

Approvals

Some approval documents are available to view by clicking the icons below.

LOGO FM CUS

WARNING: Cancer and Reproductive Harm California Proposition 65

RL1600 Series Stainless Steel with MLC Coated Load Cells

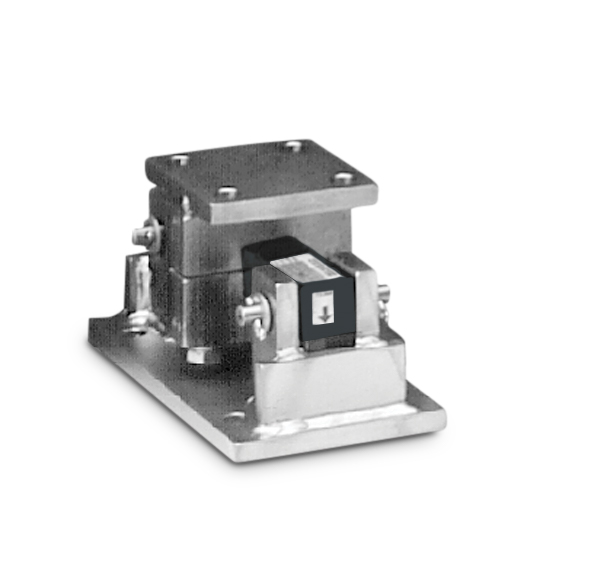

The RL1600 Series mounting module kit utilizes several Rice Lake Weighing Systems components to provide an unmatched level of performance in tank and hopper weighing applications. The RL1600 Series is ideally suited for applications where corrosive materials are weighed, such as fertilizer. Each module incorporates self-checking capabilities for thermal expansion and contraction.

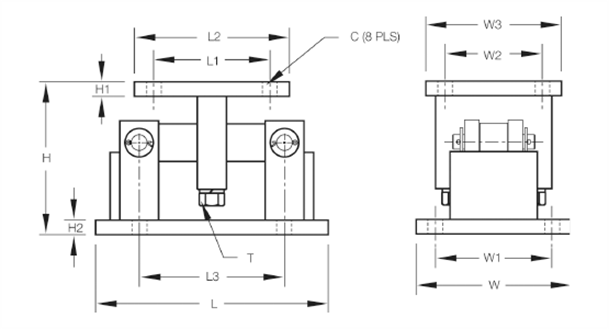

Rated Capacity C H H1 H2 L L1 L2 L3 T W W1 W2 W3
lb/in
1,000 to 5,000 0.56 5.00 0.50 0.50 9.25 2.75 4.00 6.25 1/2-13 UNC 5.00 3.75 2.75 4.00
10,000 to 25,000 0.78 7.87 0.75 0.75 12.00 6.00 8.00 7.50 3/4-10 UNC 8.00 6.00 6.00 8.00
50,000 to 75,000 0.78 9.25 1.00 1.00 16.25 6.50 9.00 11.50 1 1/4-7 UNC 12.00 9.50 6.50 9.00
