RL1600 SS Series Stainless Steel Weigh Module with RL77032SS Load Cell

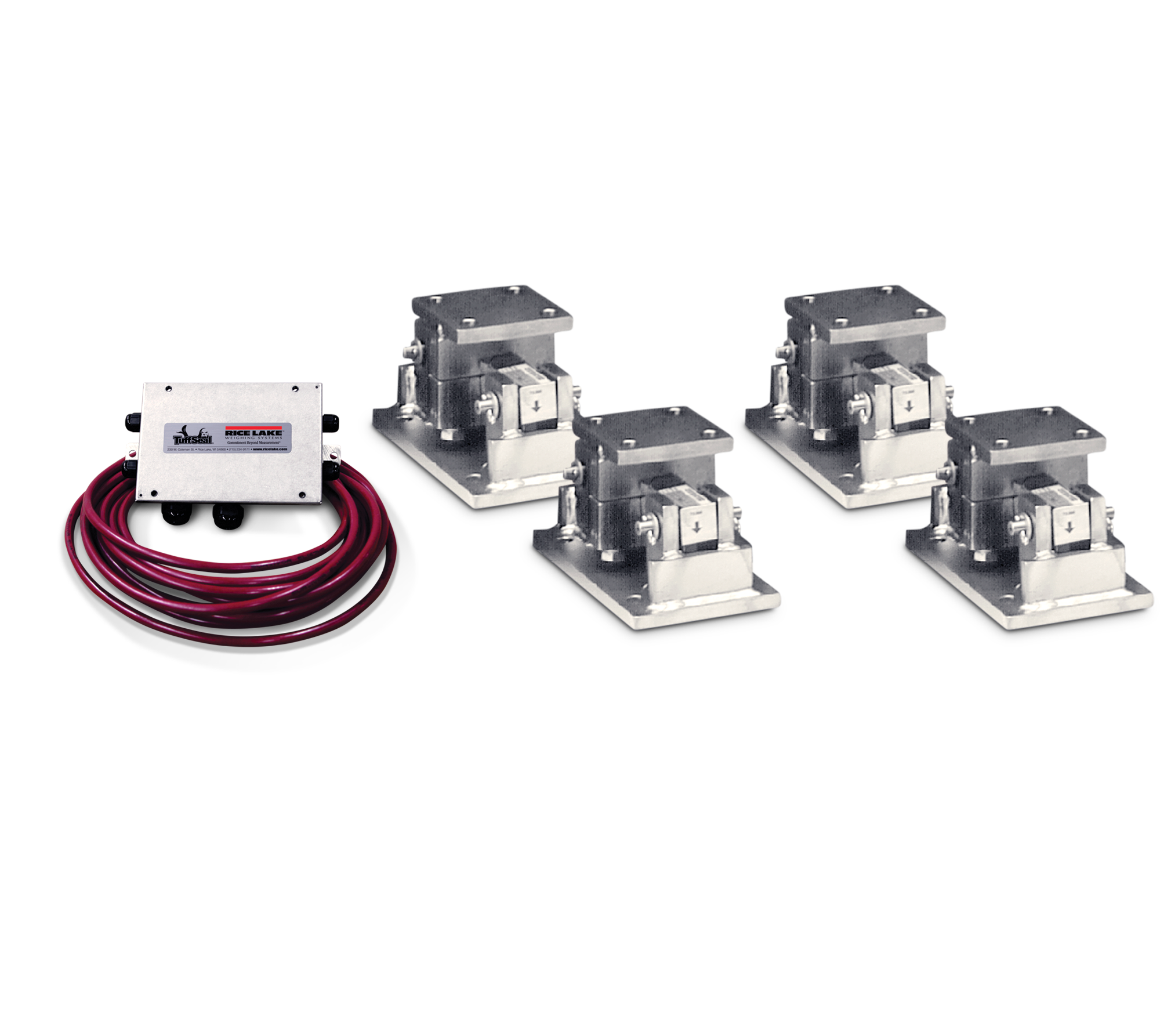

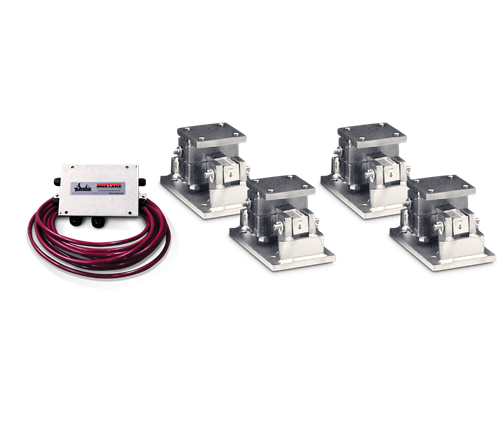

Complete Kit Includes

  • Three or four RL1600 stainless steel compression mounts with RL77032SS environmentally protected stainless steel double-ended shear beam load cells
  • One JB4SS NEMA Type 4X stainless steel signal trim junction box
  • 25 ft of hostile environment EL147HE SURVIVOR® load cell cable

Standard Features

  • Capacities (per module): 1,000 to 75,000 lb
  • Stainless steel construction
  • Self-checking, easy-to-use design allows module to be bolted directly to tank leg without requiring additional mounting plates or load buttons
  • Double-ended shear beam design, center loaded
  • Compatible with VPG® Sensortronics® 65016W SS load cells

Applications

  • Medium- to heavy-capacity tanks, bins and hoppers
  • Bulk material management

Approvals

Some approval documents are available to view by clicking the icons below.

LOGO FM CUS

WARNING: Cancer and Reproductive Harm California Proposition 65

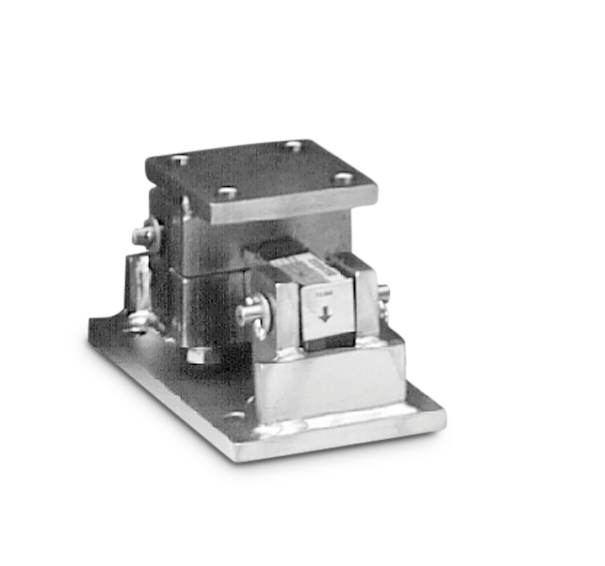

Stainless Steel Weigh Module Built to Last

The RL1600 Series mounting module kit utilizes several Rice Lake Weighing Systems components to provide an unmatched level of performance in tank and hopper weighing applications. The RL1600 Series kit is ideally suited for indoor and outdoor process control operations in the medium- to high-capacity ranges. Each module incorporates self-checking capabilities for thermal expansion and contraction.

Rated Capacity C H H1 H2 L L1 L2 L3 T W W1 W2 W3
lb/in
1,000 to 5,000 0.56 5.00 0.50 0.50 9.25 2.75 4.00 6.25 1/2-13 UNC 5.00 3.75 2.75 4.00
10,000 to 25,000 0.78 7.87 0.75 0.75 12.00 6.00 8.00 7.50 3/4-10 UNC 8.00 6.00 6.00 8.00
50,000 to 75,000 0.78 9.25 1.00 1.00 16.25 6.50 9.00 11.50 1 1/4-7 UNC 12.00 9.50 6.50 9.00

Resources / Downloads

Title Version Revision Download Email Category Archived
RL 1600 Weigh Module Kit Installation Guide B Download Email Weigh Modules No
Load Cell and Weigh Module Handbook D Download Email Load Cells|Weigh Modules No

Title Download Email
Weigh Module Application Download Email

Title Download Email
RL1600/65016 TWA Series Tank Weighing Assembly Stainless Steel Replacements Parts Page Download Email

Title Collateral Wizard Request Download Email Category
RL1600 Series Weigh Module Request Download Email Weigh Modules
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules
Load Cell Selection Guide Request Download Email Load Cells|Weigh Modules

Title View Download Email Category
Custom Weigh Modules and Load Cell Mounts View Download Email Weigh Modules|Load Cells|Load Cell Hardware|Hardware

Title Download Email Category
Properly Welding on Structures with Load Cells Download Email Load Cells

Parts

Single Module (Does NOT Include Load Cell)

Part # Description List Price Cart / Quote
17813 Mount,RL1605 SS 1,000- 5,000 lb SST Compression No Cell

List Price: $685.00

17815 Mount,RL1625 SS 10,000- 25,000 lb SST Compression No Cell

List Price: $1,345.00

17842 Mount,RL1650 SS 50,000 lb SST Compression No Cell

List Price: $3,185.00

25347 Tank Mount ASSY,RL1600- 75K SST

List Price: $3,185.00

3-Module Kit

4-Module Kit

VPG Sensortronics 65016W 3-Module Kit

VPG Sensortronics 65016W 4-Module Kit

Dummy Load Cells (Mild Steel)

Options

Stainless Steel Shims 1,000 to 5,000 lb

Part # Description List Price Cart / Quote
150852 Shim, RL1600 1K-5K 4.00 x 4.00 x 0.0625 304 stainless steel shim 2.75 in C to C .56 dia holes

List Price: $7.00

150853 Shim, RL1600 1K-5K 4.00 x 4.00 x 0.125 304 stainless steel shim 2.75 in C to C .56 dia holes

List Price: $12.00

150854 Shim, RL1600 1K-5K 4.00 x 4.00 x 0.250 304 stainless steel shim 2.75 in C to C .56 dia holes

List Price: $18.00

Stainless Steel Shims 10,000 to 25,000 lb

Stainless Steel Shims 50,000 to 75,000 lb

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
