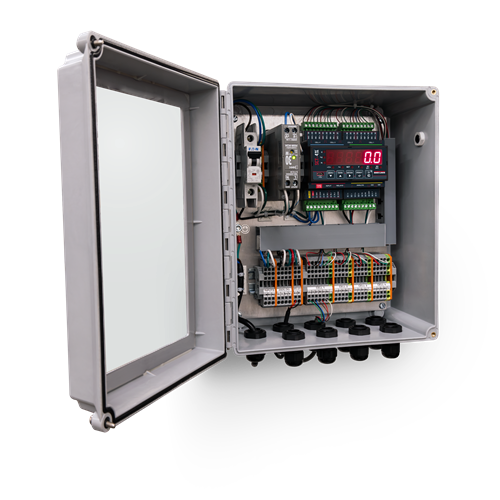

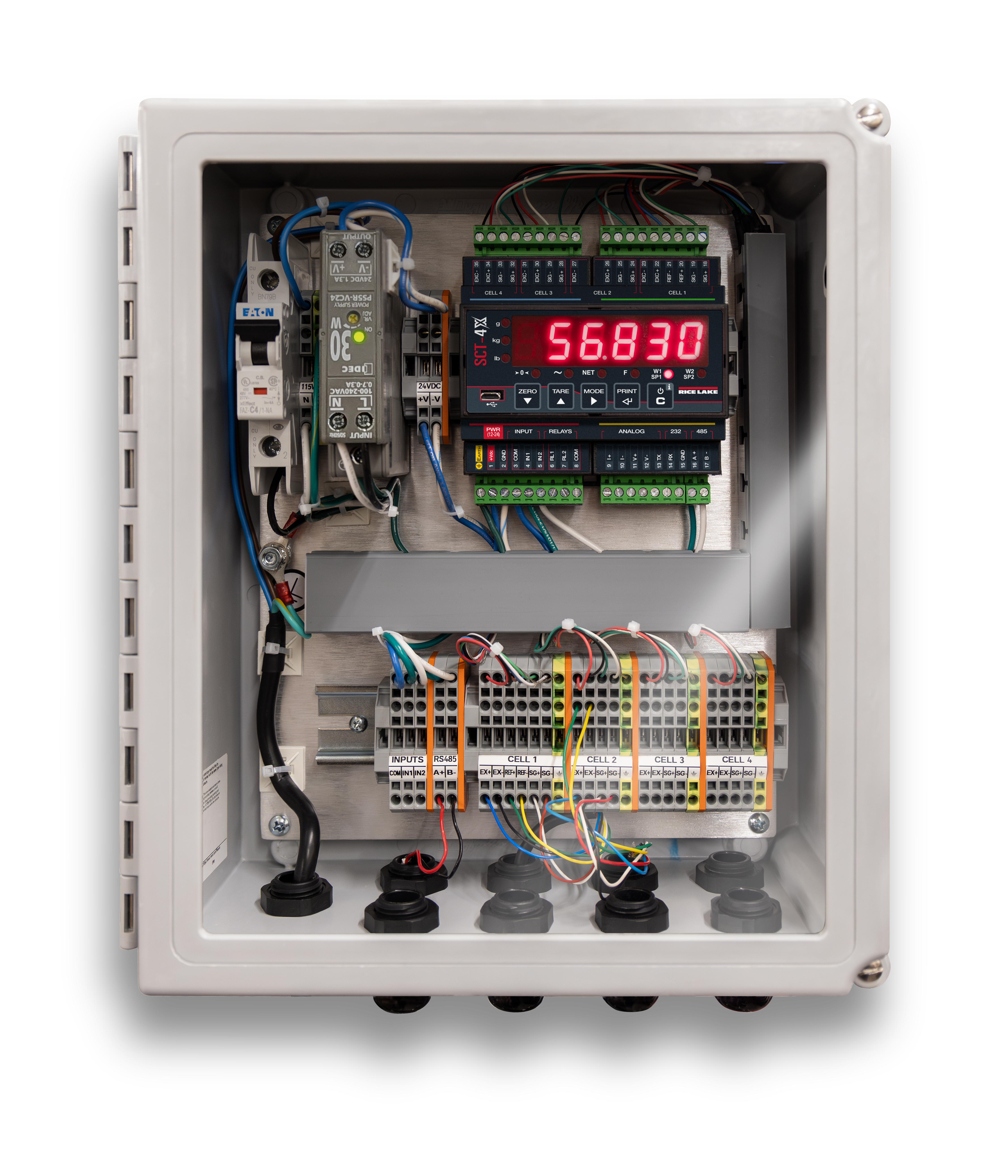

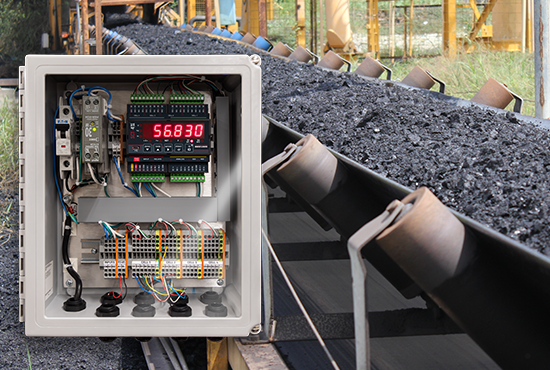

SCT-4XD Belt Scale Integrator

Power:
12 to 24 VDC

Power Consumption:
5 W

Excitation Voltage:
5 VDC, 120 mA (up to 16 × 350 ohm cells)

Analog Signal Input Range:
±39 mV

Analog Signal Sensitivity:
0.3 μV/graduation minimum

Sample Rate:
Single-channel up to 2,600 Hz, software selectable
4 channels up to 100 Hz, software selectable

Analog Output (if equipped):
Opt. isolated, 16-bit
0 to 20 mA, 4 to 20 mA (maximum 350 ohm)
0 to 5 VDC, 0 to 10 VDC (minimum 10,000 ohm)

Digital I/O:
Two inputs: 12/24 VDC
Two outputs: 150 mA 48 VAC/150 mA 60 VDC

Communication Ports:
(1) RS-485 half duplex, (1) RS-232 full duplex
1 USB Micro B connector (device) for PC configuration

Pulse Input:
Dual inputs for redundancy

Display:
Six-digit 0.31 in (8 mm), red LED

Keys/Buttons:
Flat membrane panel, tactile feel

Dimensions:
(L × W × H)
Overall: 10.5 × 6.26 × 12.5 in
(266 × 159 × 318 mm)

Mounting Tabs:
8.0 × 13.12 in
(203 × 333 mm)

Weight:
27 lb

Rating/Material:
NEMA 4X (if using supplied enclosure)

Warranty:
One-year limited

Approvals:
CE-M EN 45501
