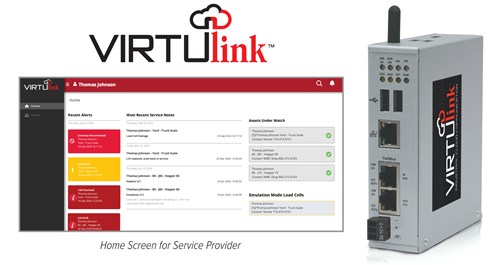

VIRTUlink Cloud Accessible Alerts and Scale Monitoring

Request Quote

Data

  • Sends raw and analyzed values from the scale to the cloud
  • Supports long-term efficiency by providing scale and throughput records
  • Expandable with support for multiple data points from junction boxes, auxiliary equipment, sensors and IP cameras

Diagnostics

  • Enhanced onboard diagnostics identify cell noise, tests for linearity and zero-reference, and monitors drift
  • Diagnostics are complemented by a unique load cell emulation feature which compensates for a failing load cell until a repair can be made
  • Unmatched reaction time (500 cycles per second) brings accuracy to new levels

Dashboard

  • Online portal to monitor scale status in real-time
  • Receive alert text and/or emails when scale is outside of programmable tolerances
  • Remotely identify service needs and review technician notes
  • Hosted on a cloud platform

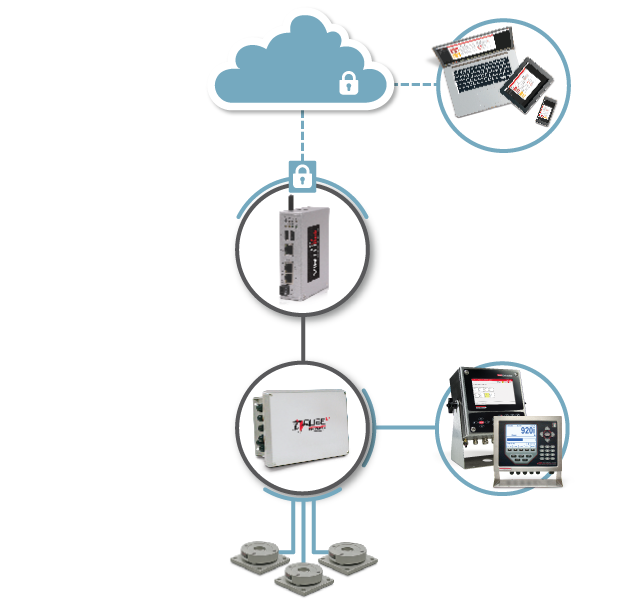

Rice Lake’s VIRTUlink IoT System connects analog platform scales (up to four iQUBE systems) to the cloud, enabling data from networked devices to be utilized for a wide variety of business and operational decisions. By combining the iQUBE digital junction box with the latest cloud technology, VIRTUlink provides access to diagnostics and can automate service alerts.

VIRTUlink-enabled systems can automatically report scale status and individual load cell information. iQUBE's unique load cell emulation feature allows it to compensate for a failing load cell until a repair can be made. With an unmatched reaction time, accuracy is brought to new levels.

Communication:
Ethernet TCP/IP

Power Connector:
3-pin terminal block (3.5 mm)

Power Supply:
24 V DC ±6 V DC

Conformity with UL:
Use Class 2 power source, Over-voltage Category II

Current (at 24 V DC):
170 mA (typical)

Operating System:
Security-hardened Linux

Display:
8 LEDs

Real-time Clock:
Capacitor buffered, maximum 7 days backup, maintenance free

Required Accessible Ports:
http (80)
https (443)
MQTT (1883)
MQTT over SSL (8883)
AMQP (5672)
AMQPS (5671)

Environment Protection:
IP20

Ambient Temperature:
Operation: -20 °C to 60 °C
Storage: -40 °C to 85 °C

Humidity:
10% to 95% (95% at 40 °C) RH (non-condensing)

Use:
Indoor

Dimensions:
5.5 × 1.38 × 4.13 in
(140 × 35 × 105 mm)

Weight:
0.89 lb (400 g)

Metal Housing:
DIN top hat rail mount

Approvals:
UL Nr. E221530 Vol D1
FCC ID 2ANEG0001
IC 24152-0001
KCC No. R-C-HKR-ETP51EN-RE
UL Japan No. 007-AH0211
RoHS
Conformance with EMC Directives: CE Emission EN 55011:2009
Immunity IEC 61000-6-2/3, EN 61131-2
Electrostatic discharge (ESD)
(air and contact discharge method) EN 61000-4-2
Fast transient interferences (Burst) EN 61000-4-4
Surge voltage EN 61000-4-5

Resources / Downloads

Title View Email Category Type
VIRTUlink Optimizes Uptime for TriRX Pharmaceutical Services View Email Software Application Story

Title Download Email
VIRTUlink Catalog Page Download Email

Title Version Revision Download Email Category Archived
VIRTUlink Customer Software Guide A Download Email Software No
VIRTUlink Quick Start Guide A Download Email Software No

Title Download Email
VIRTUlink Installation Questionnaire Download Email
VIRTUlink Application Questionnaire Download Email

Title Collateral Wizard Request Download Email Category
VIRTUlink Scale Monitoring and Diagnostic Systems Literature Request Download Email Software

Parts

Part # Description List Price Cart / Quote
211283 VIRTUlink Annual Service, Cloud-Service

List Price: $1,200.00

209604 VIRTUlink Gateway, Onboarded. DIN rail design (rail not provided)

List Price: $1,795.00

215212 Power Supply Kit, VIRTUlink Kit includes: DIN Power Supply, AC cord and DC hookup wires 24VDC Power Supply, Wiring, AC Power cord 12 inches 3 wire

List Price: $260.00

215213 Power Supply,Wall Adapter 90-264 VAC input, 24VDC Output 25W, Blunt End

List Price: $45.50
