Product PDF

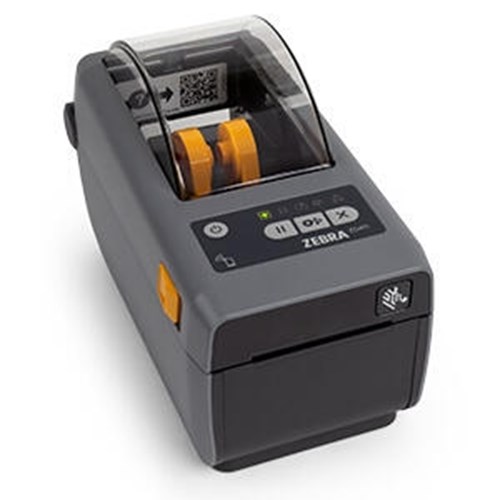

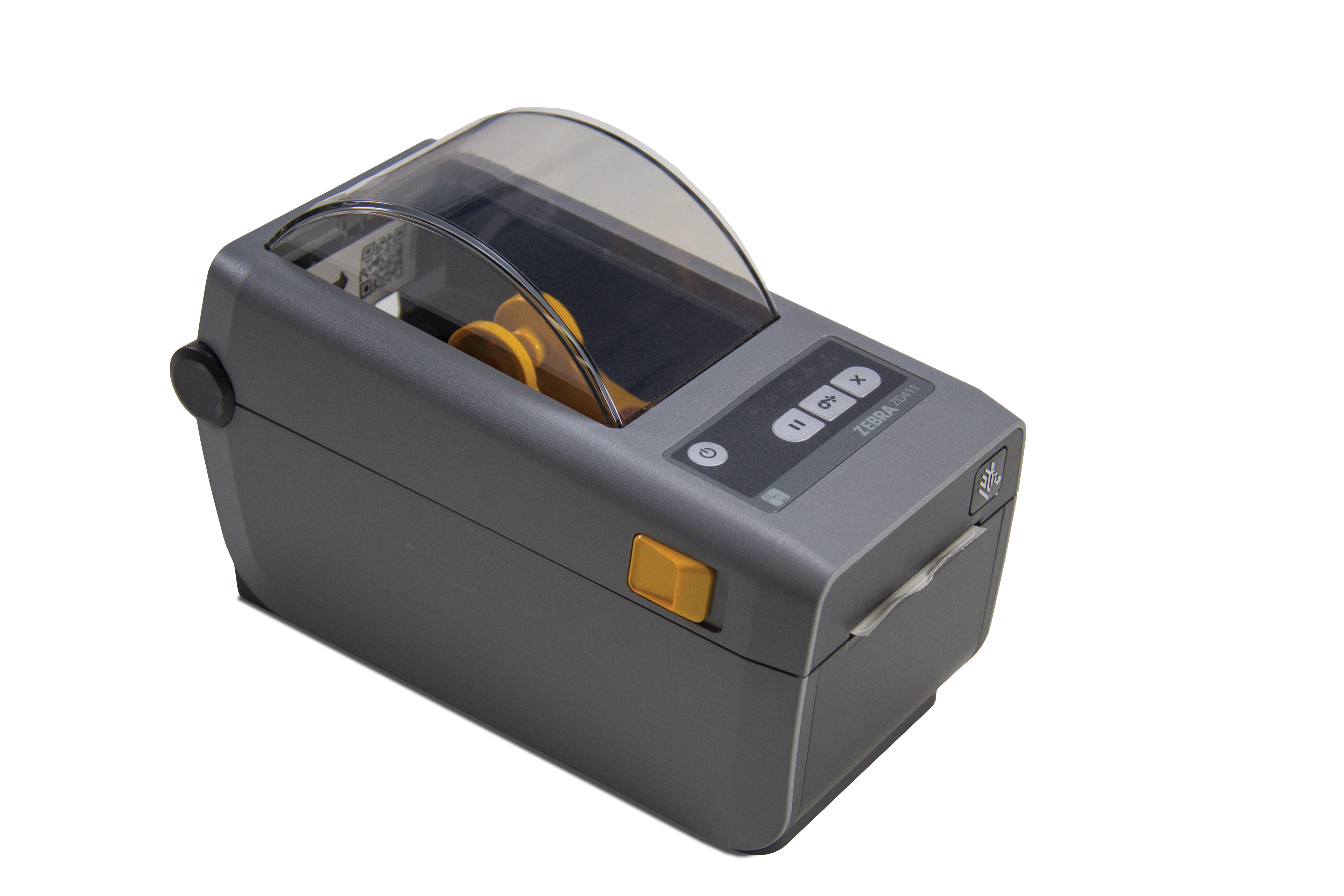

Zebra® ZD411 Label Printer

  • Open ACCESSTM design for easy media loading
  • Fully enclosed 5.0 in (127 mm) media compartment
  • Double-walled ABS case construction
  • EPL and ZPL® programming language, co-resident
  • 32-bit RISC processor
  • 8 MB SDRAM, 4 MB flash memory
  • Zebra E3 printhead energy control
  • Auto-calibration of media
  • Five resident expandable EPL2® fonts
  • Auto-switching 100 V and 240 V power supply
  • Linear and 2-D barcode symbologies
  • Transmissive and reflective media sensing
  • Head-up sensor
  • Tear-off mode
  • Certified Microsoft® Windows® drivers
Request More Information
ZD411

Resolution:
203 dpi (8 dpmm)

Print Length:
0.005 to 39.0 in (0.125 to 991 mm)

Print Speed:
2 to 4 in per second (ips)

Media:
Width: 1.00 to 2.36 in (25 to 60 mm)

Interface:
USB, Ethernet, and Bluetooth (Serial Optional)

Label Length:
Minimum: 0.38 in (9.7 mm)
1.0 in with optional cutter
Maximum 39 in (991 mm)
Inner Core: 1.0 in
Max roll diameter: 5 in
Sensing: gap, black line, notch
Type: roll-fed, fan fold, die cut or continuous with or without black mark, tag stock

Bar Codes:
Code 11, Code 39, Code 93, Code 128, UPC-A, UPC-E, EAN-8, EAN-13, EAN-14, UPC-A and UPC-E with EAN 2 or 5 digit extensions, PLessey, POSTNET, Standard 2 of 5, Industrial 2 of 5, Interleaved 2 of 5, LOGMARS, MSI, Codabar, and GS1 DataBar (formerly RSS), PDF417, MicroPDF417, Code 49, Maxicode, Codablock, Data Matrix, QR code, Aztec

Power:
100 to 240 VAC, 50/60 Hz, US power cord

Temperature:
Operating:
-40 °F to 105 °F (-40 °C to 40.5 °C)

Dimensions:
8.5 × 4.5 × 6.0 in
(220 × 115 × 151 mm)

Warranty:
One-year limited

Resources / Downloads

Title Download Email
Zebra ZD411 Catalog Page Download Email

Title View Download Email Category
ScaleTalk: Direct Thermal vs Thermal Transfer Paper View Download Email

Parts

Part # Description List Price Cart / Quote
216767 Printer, Label ZD411 203dpi, Direct Thermal, USB, US 120 VAC

List Price: $455.00
219364 Printer, Label ZD411 203dpi, Thermal Transfer, USB,US 120 VAC

List Price: $585.33

Options

Part # Description List Price Cart / Quote
212815 Printer OPT, RS-232 ZD411 and ZD421 Series. Field Installable.

List Price: $26.00
38941 Pen,Head Cleaning Box of 12 TLP2642,LP2242,LP2642,TLP3642,LP3642,TLP2046,TLP2242 TLP2044 Eltron

List Price: $60.00

Label Stock/Ribbon

Cables
