Rice Lake RL72020P Coated Alloy Steel, Double-Ended Beam Load Cell
A coated alloy steel, double-ended beam load cell ideal for fertilizer, tank and hopper applications. Capacities range from 5,000 lb to 250,000 lb and comes with 30 ft of load cell cable.
Approvals
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65
RL72020P Load Cell Specifications
Full Scale Output: Output Resistance: Input Resistance: Material/Finish: Temperature: Seal Type: |
Safe Overload: Safe Sideload: Rated Excitation: Combined Error: Insulation Resistance: Deflection at Capacity: |
Cable Length: Cable Diameter: Cable Color Code: Warranty: Approvals: |
RL72020P Load Cell Dimensions
Rated Capacity | A | B | C | D | E | F | G | H | J | K | L |
---|---|---|---|---|---|---|---|---|---|---|---|
lb/in | |||||||||||
5,000 to 10,000 | 8.12 | 4.06 | 1.44 | 1.12 | 0.62 | 6.88 | 0.62 | 0.66 | 1.70 | 1.48 | 0.50 |
20,000 | 8.12 | 4.06 | 1.44 | 1.12 | 0.62 | 6.88 | 0.84 | 0.66 | 1.95 | 1.48 | 0.50 |
30,000 to 60,000 | 10.25 | 5.12 | 1.88 | 2.37 | 0.88 | 8.50 | 1.00 | 1.06 | 3.20 | 2.73 | 1.00 |
100,000 | 11.25 | 5.62 | 1.88 | 2.50 | 0.88 | 9.50 | 1.00 | 1.06 | 3.50 | 3.24 | 1.50 |
150,000 | 11.25 | 5.62 | 1.88 | 2.80 | 0.88 | 9.50 | 1.25 | 1.06 | 3.90 | 3.64 | 1.50 |
200,000 to 250,000 | 16.10 | 8.05 | 3.05 | 4.60 | 1.55 | 13.00 | 1.30 | 1.56 | 5.38 | 5.17 | 2.00 |
Resources / Downloads
Sales Literature
Title | Collateral Wizard | Request | Download | Category | |
---|---|---|---|---|---|
MLC Load Cell Kits | Download | Load Cells|Single-Ended Beam Load Cells|Double-Ended Beam Load Cells | |||
Load Cell Wiring Guide | Request | Download | Load Cells | ||
Load Cell Selection Guide | Request | Download | Load Cells|Weigh Modules | ||
Load Cell and Weigh Module Selection Guide | Request | Download | Load Cells|Weigh Modules | ||
Load Cell and Weigh Module Handbook | Request | Download | Load Cells|Weigh Modules |
Parts
NTEP Certified
Part # | Description | List Price | Cart |
---|---|---|---|
201769 | Load Cell,DEB RL72020-5k 5000lb 30ft 3mv/v 700 Ohm WW NTEP III 5M IIIL 10M FM IP67 MLC costing coating |
List Price: $720.00 |
|
201770 | Load Cell,DEB RL72020-10K 10000lb 30ft 3mv/v 700 Ohm WW NTEP III 5M IIIL 10M FM IP67 MLC coating |
List Price: $720.00 |
|
201771 | Load Cell,DEB RL72020-20K 20000lb 30ft 3mv/v 700 Ohm WW NTEP III 5M IIIL 10M FM IP67 MLC coating |
List Price: $720.00 |
|
201772 | Load Cell,DEB RL72020-30K 30000lb 30ft 3mv/v 700 Ohm WW NTEP III 5M IIIL 10M FM IP67 MLC coating |
List Price: $826.00 |
|
201773 | Load Cell,DEB RL72020-40K 40000lb 30ft 3mv/v 700 Ohm WW NTEP III 5M IIIL 10M FM IP67 MLC coating |
List Price: $826.00 |
|
201774 | Load Cell,DEB RL72020-50K 50000lb 30ft 3mv/v 700 Ohm WW NTEP III 5M IIIL 10M FM IP67 MLC coating |
List Price: $826.00 |
|
201775 | Load Cell,DEB RL72020-60K 60000lb 30ft 3mv/v 700 Ohm WW NTEP III 5M IIIL 10M FM IP67 MLC coating |
List Price: $826.00 |
|
201776 | Load Cell,DEB RL72020- 100000lb 30ft 3mv/v 700 Ohm WW NTEP III 5M IIIL 10M FM IP67 MLC coating |
List Price: $1,615.00 |
|
201777 | Load Cell,DEB RL72020- 150000lb 30ft 3mv/v 700 Ohm WW NTEP III 5M IIIL 10M FM IP67 MLC coating |
List Price: $1,615.00 |
|
201778 | Load Cell,DEB RL72020- 200000lb 30ft 3mv/v 700 Ohm WW NTEP III 5M IIIL 10M FM IP67 MLC coating |
List Price: $2,990.00 |
Non-NTEP Certified
Related Products
Rice Lake RL70000 Alloy Steel, Double-Ended Beam Load Cell
The Rice Lake RL70000 Alloy Steel, Double-Ended Beam Load Cell with center loading is designed for truck, tank and hopper applications.
Rice Lake RL70000 Coated Alloy Steel, Double-Ended Beam Load Cell
The Rice Lake RL70000 coated alloy steel, double-ended beam load cell has an IP67 rating and is designed for tank and hopper applications. Ideal for fertilizer applications.

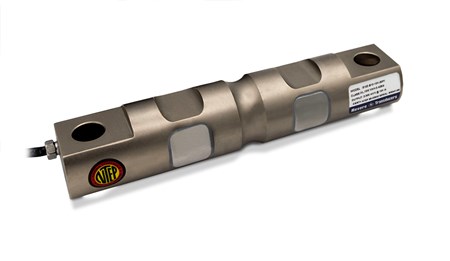

VPG Revere 5103 Alloy Steel, Double-Ended Beam Load Cell
