Highly efficient red LED display with 6 20-mm digits and 6 LEDs for showing active functions.
New AISI304 stainless steel multifunction protective case, which allows:- Wall or bench installation via standard swivel bracket - Panel installation with IP68 degree of protection both front and rear, ideal for the chemical, pharmaceutical and food industry and harsh environments. - Easy cabling, inspection and maintenance with front panel removal system.

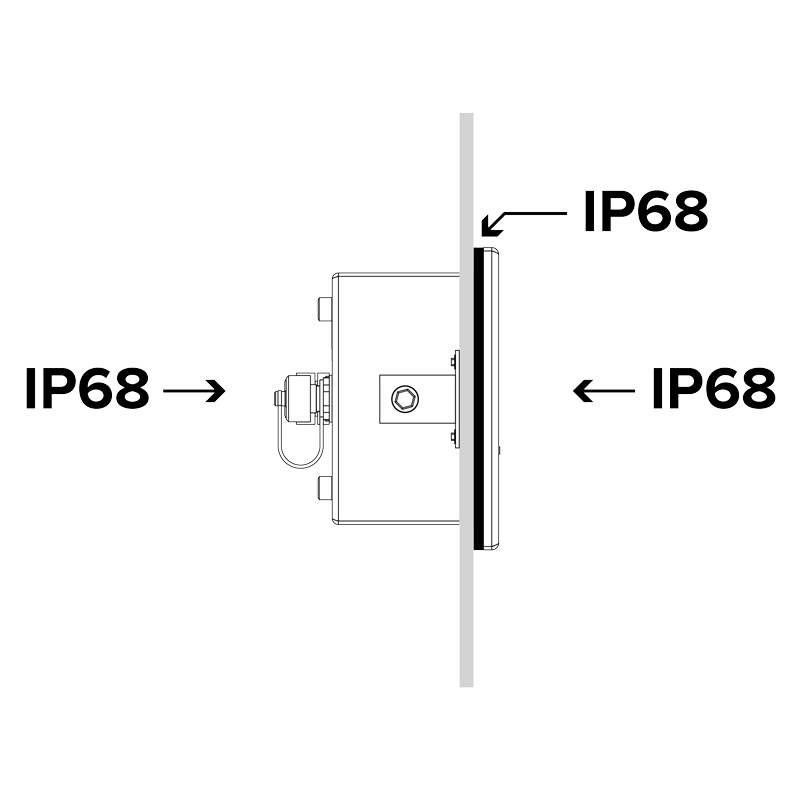

IP68 degree of protection, with both bench and panel installation.

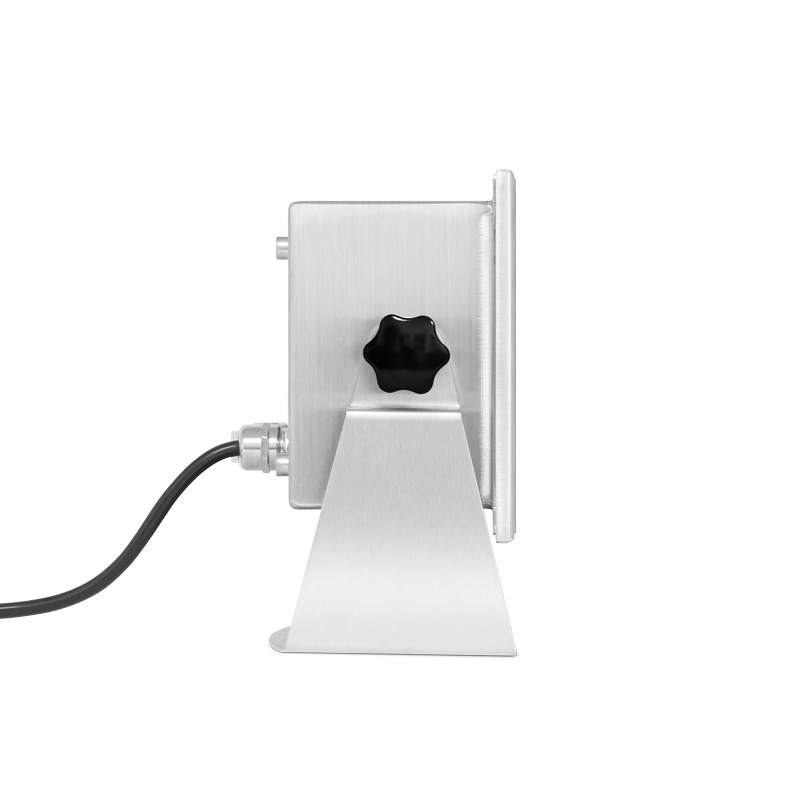

Dimensions 212x169,5x91mm, fitted with support bracket for table or wall mounting.
Theoretical calibration.
Up to 8 signal linearization points with DINITOOLS (3 from keypad).
Calibration, Set-Up parameters, configurable from keyboard or from PC with DINI TOOLS.
Up to 10.000e OIML or 2 x 3000e @ 0,3 µV/e CE-M legal for trade.
Up to 800.000 displayable divisions with internal resolution up to 3.000.000 points.
A/D 24-bit sigma-delta conversion, up to 400 conv./sec. autoselect.
Connectable with up to 8 analogue load cells with 350 Ohm input resistance.
Management of a digitally equalised 4-cell weighing system or management of 4 independent weighing systems.

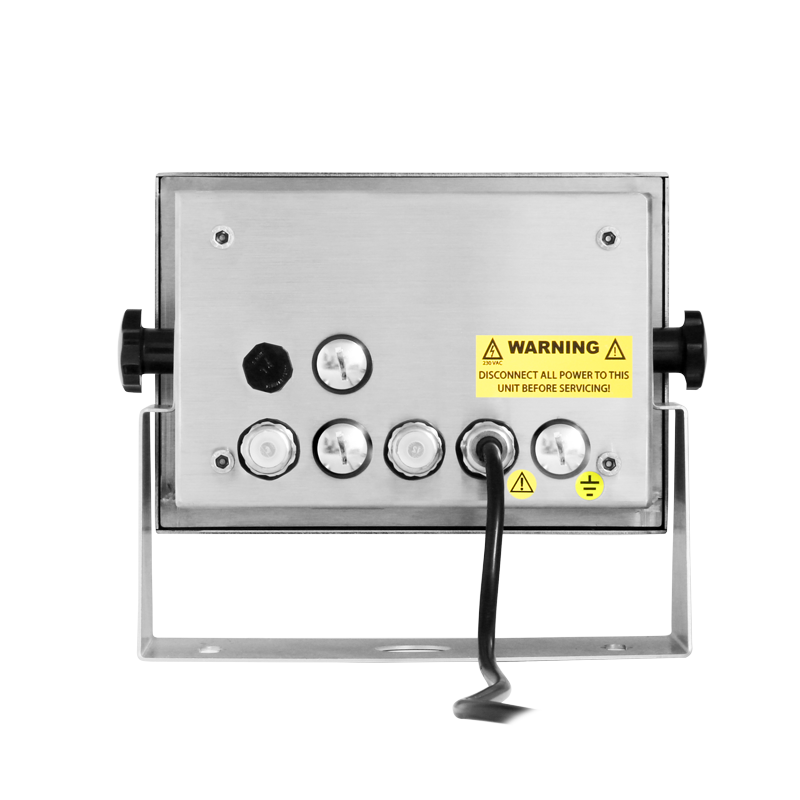

DGT20I / DGT20IAN:Power supply from 12Vdc to 24Vdc. With external power unit 110/230Vac - 12Vdc and IP68 connector. EU, UK, US plugs included as standard.

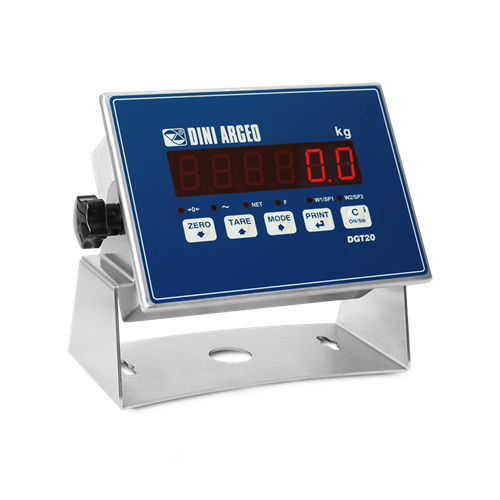

Weight indicator/transmitter with AISI 304 stainless steel multifunction case that guarantees an IP68 degree of protection both on bench and panel installations. Suitable for heavy industrial applications, for dosage, filling and level control systems.
FUNCTIONS: Keyboards Zeroing; Semi automatic and presettable tare, print and/or data transmission; ON/Stand-by. Selectable High Resolution Weighing x 10; Lb/kg conversion; Approved transmission of the weight to PC/PLC (with ALMEM Alibi memory option) e Peak. External Input Simulation of key pressure; Keyboard lock. Mosfet Output Set Point Control on the weight, either positive (in loading) or negative (in unloading), or on the pieces (counting mode), with programmable enabling/disabling thresholds, as direct check or upon weight stability. Serial Ports:
On all models: Reading of the net, gross, and tare weights; Clearing; Semi automatic and presettable tare; Scale switch; Setting of outputs activation thresholds.
DGT20I and DGT20IAN models: Reading of microvolts or ADC converter for all the channels; Message display; Printing; Setting of APW in counting mode; Simulation of key pressure;MODBUS serial protocol.
16 but Analogue Output (DGT20IAN) Analogue output proportional to the net or gross weight, either positive (in loading) or negative (in unloading).
I/O SECTION:
RS232/C bidirectional port (RJ11 connector) configurable for connection to external units.
RS485 bidirectional port configurable for network connection.
2 photomosphet outputs 150 mA 48 Vac/150 mA 60 Vdc (NO) with configurable functions.
2 inputs (optoisolator photocouplers) 12 ÷ 24 Vdc, 5 mA min - 20 mA max, with configurable functions.
16-bit analogue output (DGT20IAN model) 4-20mA, 0-5Vdc choice or 0-10 Vdc. Maximum load applicable to the current output: 300 Ohm. Minimum load applicable to live output: 1K Ohm.
MASTER/REPEATER OPTION (MSTSLV code): Specific programme for use of the indicator as a universal weight repeater or as a multi-scale repeater (MASTER) in combination with DFW/DGT/MCW.
Functioning Modes: Multi-scale repeater (MASTER) function which allows to repeat up to 32 independent scales, with the possibility of managing their functions, or displaying and printing the sum of the weighs of all the scales.
UNIVERSAL weight repeater function which allows to repeat the weight of any scales, through the configuration of the input string.
CERTIFICATIONS: CE-M EN 45501 OIML R76 OIML R61 - MID OIML R51 - MID Australian legal for trade certificate of approval (NMI S788)
Indicator for table/panel mounting with 2 IN and 2 OUT. Stainless steel case, 5-key keypad, LED display, and standard weighing programme. With external power unit 110/230Vac - 12Vdc and IP68 connector.
Indicator for table/panel mounting with 2 IN and 2 OUT. Stainless steel case, 5-key keypad, LED display, and standard weighing programme. With internal power unit 110/220Vac.
Indicator for table/panel mounting with 2 IN, 2 OUT, analogue output. Stainless steel case, 5-key keypad, LED display, and standard weighing programme. With external power unit 110/230Vac - 12Vdc and IP68 connector.
"WeiMonitor" PC program to monitor and record in real time weighs performed on the connected scale (the price is intended for the license to manage one scale).
Table thermal printer. For weight indicator, with IP40 ABS case, 1,5 m connection cable and internal power supply. Thermal paper roll included as standard.
Alibi memory (fiscal memory, max 120.000 weighs) for approved weight transmission to PC/PLC or data recording on MMC/USB. Built-in real time clock to print the date/time with PCB, screw terminal, plastic box and UL-marked labels (if applicable).
RS232 / RS485 / Ethernet converter. Modbus RTU / Modbus TCP/IP (if applicable). Connectable to all Dini Argeo weight indicators via the serial port. ABS housing for DIN rail. With PCB, screw terminals, plastic box and UL marked labels (if applicable).
Intrinsic protection three channel Zener barrier. Specific for connection to load cells, for mounting on DIN rail in a safe area, or in a flame-proof case. Marking: ATEX/IECEx II (1) GD [Ex ia Ga] IIC [Ex ia Da] IIIC. Manual and ATEX UE CONFORMITY DECLARATIONS (available in EN, DE, FR, ES and IT).
ATEX ABS housing kit with Zener Barrier ZBA1S for load cells. For intrinsically safe weighing systems in a dangerous zone. Dimensions 179x359x166,5mm. It can connect up to 8 350 Ohm load cells. Marking of housing + Zener Barrier ZBA1S: ATEX II 3(1)G Ex nA [ia Ga] IIC T4 Gc X for gas, ATEX II 3(1)D Ex tc [ia Da] IIIC T135øC Dc IP66 X for dust. Provided with safety instructions and the ATEX EU declaration of conformity (EN and IT).
Kit of 3 ATEX Zener barriers for load cells, in an ABS box. For up to 4 load cells of 350 ohm, for intrinsic protection weighing systems in a dangerous area. Marking of the whole box with three Zener barriers: ATEX II 3(1)G Ex nA [ia Ga] IIC T4 Gc (-20øC = Ta = +40øC) for gas, ATEX II 3(1)D Ex tb [ia Da] IIIC T130øC Dc IP65 (-20øC = Ta = +40øC) for dusts. Provided with safety instructions and the ATEX EU declaration of conformity (EN and IT).
ATEX declaration for the whole system with Dini Argeo Zener barriers. Ex II 2G IIC T6 Gb X e Ex II 2D IIIC T125øC Db X system, with label of the whole system, for weight indicator connected to Dini Argeo zener barriers, connected to a mechanical structure with ATEX load cells (each cell must be certified with CCATEX option). Provided with descriptive document of the assembly and ATEX EU declaration of conformity of the assembly (EN and IT).
ATEX equalisation box made of ABS IP67, for up to 4 cells. 4 + 1 fairleads. Marking: ATEX II 2G Ex ib IIC T6 Gb for gases, ATEX II 2D Ex tb IIIC T115øC Db IP65 for dust. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).
ATEX equalisation box made of stainless steel IP66 for up to 4 cells. 4 + 1 fairleads. Marking: ATEX II 2G Ex ib IIC T6 Gb for gases, ATEX II 2D Ex tb IIIC T115øC Db IP65 for dusts. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).
Blue shielded cable 6x0.22 mmý, only for EX i (2GD) assemblies. PVC inner sheath. Tinned copper braid shielding. Polyurethane outer sheath, diameter 5.8 mm. Temperature range: -40 / +80 øC. Minimum bending radius >/= 7 x O.D. _/m
Printed EU declaration of conformity, EU certificate of verification, test certificate and metrological book (free download from our website, only for approved CE-M products). NET _.
