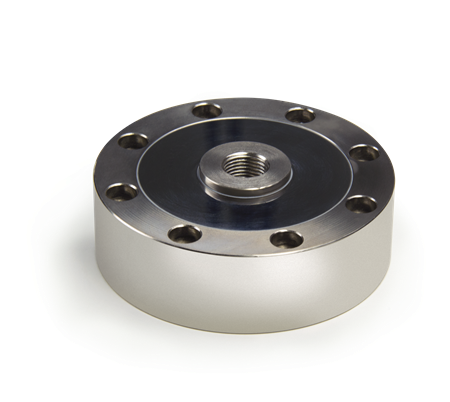

Rice Lake RL90000 Alloy Steel, Compression Disk Load Cell

Full Scale Output:
4.0 mV/V

Output Resistance:
5,000 to 50,000 lb: 350 (±3) ohm
100,000 lb: 700 (±5) ohm

Input Resistance:
5,000 to 50,000 lb: 385 (±5) ohm
100,000 lb: 770 (±70) ohm

Material/Finish:
High-alloy steel, nickel plated

Temperature:
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
15 VDC (15 V maximum)

Nonlinearity:
0.05% full scale

Hysteresis:
0.02% full scale

Insulation Resistance:
2,000 megohm

Cable Length:
50 ft

Cable Diameter:
5,000 to 25,000 lb: 0.200 in
50,000 to 100,000 lb: 0.305 in
Polyurethane jacket

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

Warranty:
Two-year limited

Approvals:
cFMus

* 5,000lb and 10,000lb models can be used in compression and tension load applications, load cup, pn 33616 is required for compression applications.
