882D Belt Scale Integrator
- LCD display
- Hardware slot for two option cards
- Operator access to audit trail, preset tare, accumulator, time and date and setpoints through menu keys
- Password protected audit trail tracking for configuration and calibration changes
- Setpoints for control and alarms
- Four onboard digital I/O channels
- Four programmable ticket formats up to 1,000 characters
- Filter settings for noise
- Speed inputs
Approvals
Some approval documents are available to view by clicking the icons below.
![CE Mark](/media/giofp5z1/ce_mark.png?height=50)
![UL_Listed_C-US](/media/4mjdsa2r/ulcus.png?height=50)
WARNING: Cancer and Reproductive Harm California Proposition 65

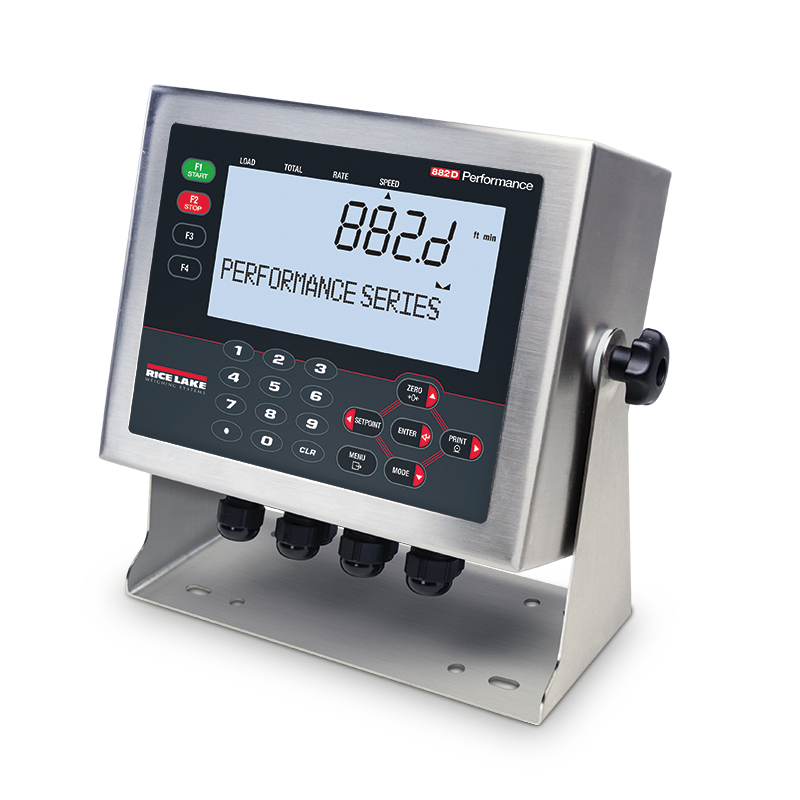

882D Belt Scale Integrator
Belt scales used in demanding industries like mining, bulk material blending, and sand or gravel quarries require instrumentation that can keep up. The tough yet compact 882D belt scale integrator is engineered to provide straightforward, accurate data in a wide range of environments — even hazardous locations. Designed with advanced programming capabilities and an I/O option, the 882D can be customized to manage product dosing and metering.
A backlit display makes for easy viewing of rate, speed and time, even in lighting conditions where a screen would typically be difficult to read. The 882D’s IP66 stainless steel enclosure protects the instrument from severe weather and is well-suited for exposure to harsh environments. Whether you are belt weighing for process control or a truck, barge or rail loadout application, you can rely on the 882D for durable performance in every setting.
882D Specifications
Power Power Consumption: Excitation Voltage: Analog Signal Input Range: Analog Signal Sensitivity: Sample Rate: Resolution: |
System Linearity: Digital I/O: Communication Ports: Pulse Input: Display: Annunciators: |
Keys/Buttons: Operating Temperature: Dimensions: Weight: Rating/Material: Warranty: EMC Immunity: Approvals: |

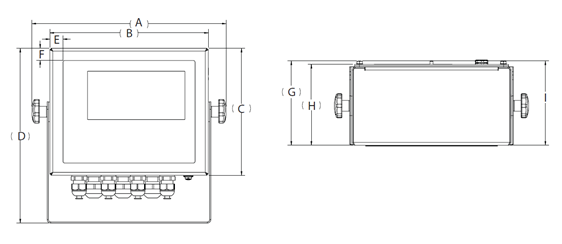

882D Dimensions
Dimensions | |||
---|---|---|---|
A | 9.93 in (252 mm) | G | 4.31 in (110 mm) |
B | 8.10 in (206 mm) | H | 4.14 in (105 mm) |
C | 6.50 in (165 mm) | I | 4.32 in (110 mm) |
D | 8.94 in (227 mm) | ||
E | 0.68 in (17 mm) | ||
F | 0.63 in (16 mm) |
Resources / Downloads
Articles
Title | View | Category | Type | |
---|---|---|---|---|
Protect Your Belt Scales from Father Winter | Belt Scale Weigh Frames | Articles |
Fieldbus Configuration Files
Title | Size | Download | Category | |
---|---|---|---|---|
882D DeviceNet Configuration Files | 599 B | Download | Bulk Indicators/Controllers | |
882D Profibus Configuration Files | 1.2 KB | Download | Bulk Indicators/Controllers | |
882D Profinet Configuration Files | 2.8 KB | Download | Bulk Indicators/Controllers | |
EtherNet/IP file (EDS) for 882D | 3.7 KB | Download | Bulk Indicators/Controllers | |
IPConfig-Utility | 3.1 MB | Download | Indicators / Controllers |
Manuals
Title | Version | Revision | Download | Category | Archived | |
---|---|---|---|---|---|---|
882D Belt Scale Integrator Technical Manual | 2 | I | Download | Indicators / Controllers|Belt Scale Components|Belt Scale Systems|Weight Indicators | No | |
882D Digital I/O Option Card Addendum | A | Download | Belt Scale Weigh Frames|Indicators / Controllers|Weight Indicators|Indicator Hardware | No | ||
882D Relay Option Card Addendum | A | Download | Belt Scale Weigh Frames|Indicators / Controllers|Weight Indicators|Indicator Hardware | No | ||
Interface Option Cards for 882D and 882IS Installation and Programming Manual | D | Download | Indicator Hardware|Indicators / Controllers|Weight Indicators | No | ||
Single Analog Output Option Card for 882D and 882IS Addendum | B | Download | Indicators / Controllers|Weight Indicators | No | ||
iRite® Programming Language Programmer Manual | O | Download | Indicator Software|Indicators / Controllers|Weight Indicators | No | ||
880 and 882D Panel Mount Option Addendum | A | Download | Weight Indicators|Indicators / Controllers|Indicator Hardware/Options|Belt Scale Weigh Frames | No | ||
MASTER BulkSlide/882D Configuration and Calibration Manual | C | Download | Bulk Construction|Bulk Material Weighing | No | ||
Indicadores digitales de pesaje 880 y 882D Opción de alojamiento para panel (Latin Spanish) | A | Download | Weight Indicators|Indicators / Controllers|Indicator Hardware/Options|Belt Scale Weigh Frames | No |
Parts
Part # | Description | List Price | Cart | |
---|---|---|---|---|
177708
|
Indicator,882D Belt Scale Belt Scale Integrator with LCD Display Universal Enclosure
|
List Price: $2,115.00 |
||
![]() |
180847
|
Indicator,882D 100-240VAC Belt Scale Integrator with LCD Display Universal Enclosure
|
List Price: $2,115.00 |
|
![]() |
184683 | Indicator,882D Belt Scale Integrator DC Power with LCD Display Universal Enclosure |
List Price: $2,275.00 |
Options
Part # | Description | List Price | Cart |
---|---|---|---|
190527 | 882D Opt,Digital I/O Option Card |
List Price: $365.00 |
|
190528 | 882 Opt,Single Analog Output (0-10VDC, 0-20mA, 4-20mA) |
List Price: $425.00 |
|
190529 | 882D Opt,Relay Interface Option Card (Not for Totalizer Pulse Count Output) |
List Price: $470.00 |
|
177850 | Panel,Mount Option 880, 882D, 882IS Universal Indicator, Gasketed Non-NEMA Seal. |
List Price: $255.00 |
|
197724 | Overlay,Clear Protective Window with Adhesive Edge,Package of Five Each,882 |
List Price: $75.00 |
