Customizable backlit LCD graphical user interface
22 softkeys with 10 user-defined keys
Tactile keypad for scale operations, numeric entry and navigation
On-screen keyboard available during entry mode (or external keyboard)
Supports 28 scales within five different scale types:
Analog load cell, multi-range/interval weighing
Total scale summing
Serial input scales
iQUBE² scales
Program scales
Two to 14 option slots for additional scale channels, serial ports, digital inputs and outputs, analog outputs and protocol interfaces
iRite™ Programming Software
Customizable user applications with event-based functions
150 built-in functions for application processes and data tables
Four serial ports supporting RS-232, RS-485, 20 mA
USB Type A and B replace Serial on Port 2 (USB model)
Alibi memory captures serial port transmissions
Configurable data stream format
100 setpoints, 27 configurable setpoint types
Six digital I/O for control
Four different enclosure types: universal, deep universal, wall mount, panel mount
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65
The 920i® weight indicator and process controller blends revolutionary user interfaces, total flexibility and processing performance with the simplicity of a basic weight indicator. A crisp, highly customizable LCD graphical display, programmable softkeys and industry recognized electronics are surrounded by a virtually indestructible enclosure to create one of the industry’s most trusted weight indicators and process controllers.
Adding an entirely new dimension in flexibility for solution providers and users alike, the 920i indicator/controller brings simplified customization at a fraction of the cost of traditional process instrumentation. From tailored basic weighing to complex process automation, the 920i gives you features, programmability and power for your process.
| Part # | Description | List Price | Cart/Quote | |
|---|---|---|---|---|
| 67527 | Indicator,920i Universal ASSY 115VAC Single Channel | List Price: $3,395.00 | ||
| 115003 | Indicator,920i USB,Univ Universal, 115VAC, Single Channel, with USB connector | List Price: $3,545.00 | ||
| 67615 | Indicator,920i Universal 230VAC With North American Plug (Nema 5-15P) | List Price: $3,395.00 | ||
| 120062 | Indicator,920i USB,Univ Universal, 230VAC, Single Channel, with USB connector | List Price: $3,545.00 | ||
 | 69522 | Indicator,920i Universal Single Channel, 230VAC w/Continental Europe Plug (CEE 7/7) | List Price: $3,395.00 | |
| 120074 | Indicator,920i USB,Univ Universal, 230VAC, Single Channel, with Continental Europe Plug (CEE 7/7) with USB connector | List Price: $3,545.00 | ||
| 107713 | Indicator,920i Universal ASSY, Single Channel, DC-DC Convertor, 12 - 36VDC Nominal, 25 Watts. | List Price: $3,545.00 | ||
| 120080 | Indicator,920i Plus,Univ Universal ASSY, Single Channel, with USB connector,DC-DC Converter, 12 - 36VDC Nominal, 25 Watts | List Price: $3,695.00 | ||
| 69767 | Indicator,920i Universal ASSY 115VAC Dual Channel | List Price: $3,545.00 | ||
| 120086 | Indicator,920i Plus,Univ Universal ASSY,115VAC, Dual Channel, with USB Connector | List Price: $3,695.00 | ||
| 69772 | Indicator,920i Universal 230VAC w/North American Plug (Nema 5-15P) Dual Channel | List Price: $3,545.00 | ||
| 120090 | Indicator,920i USB,Univ Universal, 230VAC, with North American Plug (NEMA 5-15P) Dual Channel, with USB Connector | List Price: $3,695.00 | ||
| 69774 | Indicator,920i Universal 230VAC w/Continental Europe Plug (CEE 7/7) Dual Channel | List Price: $3,545.00 | ||
| 120096 | Indicator,920i USB,Univ Universal, 230VAC, with Continental Europe (CEE 7/7) Plug, Dual Channel, with USB Connector | List Price: $3,695.00 | ||
| 77790 | Indicator,920i Universal ASSY 115 VAC, No A/D Board | List Price: $3,195.00 | ||
| 120100 | Indicator,920i USB,Univ Universal ASSY, 115VAC, No A/D Board, with USB connector | List Price: $3,345.00 | ||
| 77791 | Indicator,920i Universal ASSY, 230 VAC, No A/D Board | List Price: $3,195.00 | ||
| 120104 | Indicator,920i USB,Univ Universal ASSY, 230VAC, No A/D Board, with USB connector | List Price: $3,345.00 |
| Part # | Description | List Price | Cart/Quote | |
|---|---|---|---|---|
| 68532 | Ind Option, A/D Single Channel 920i, Kit. | List Price: $395.00 | ||
 | 68533 | Ind Opt,A/D Dual Channel 920i | List Price: $525.00 | |
| 67601 | Ind OPT,I/O 24 Channel 720i, 820i, 920i | List Price: $325.00 | ||
| 67602 | Ind OPT,Analog Output 0-10V, 0-20mA, 4-20mA for 720i, 820i, 920i | List Price: $395.00 | ||
| 103138 | Ind Opt,Analog Output Dual Channel, 0-10V, 0-20mA, and 4-20mA for 720i, 820i, 920i. | List Price: $625.00 | ||
| 67604 | Ind OPT,Serial Port Dual Channel Full Duplex RS232 and 4 Wire RS485 720i, 820i, 920i | List Price: $425.00 | ||
| 87697 | Ind OPT,Dual Analog input 0-10V 0-20mA With Dual Thermocouple Inputs 920i Requires 2.05 Software or Higher | List Price: $725.00 |
Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.
To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.

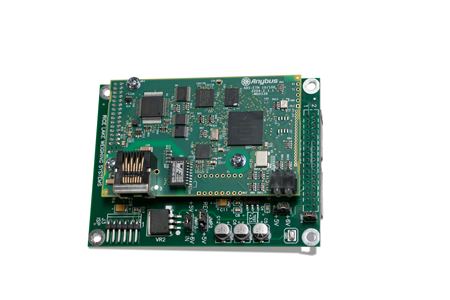

DeviceNet Interface for internal installation in 720i, 820i and 920i digital weight indicators.
