Product PDF

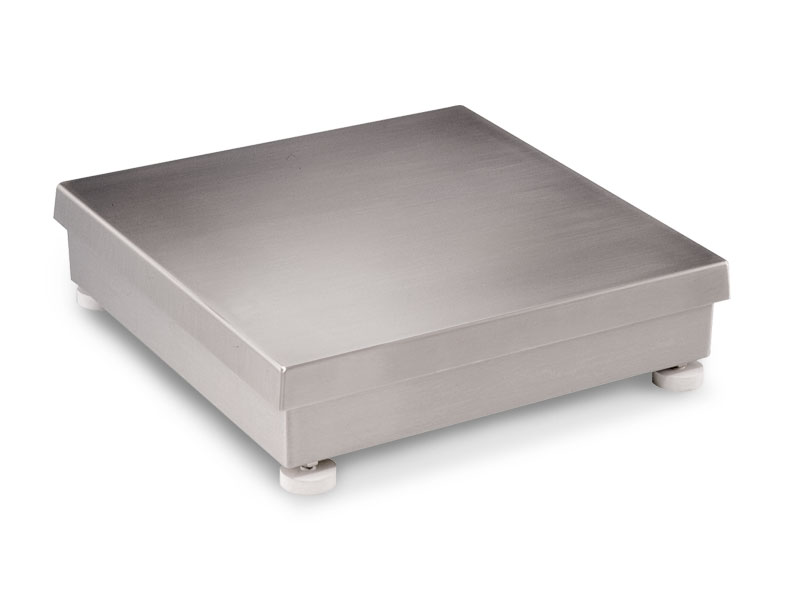

BenchMark® CW-80B Bench Scale

  • NTEP Certified, IP67 stainless steel load cell
  • 304 stainless steel construction

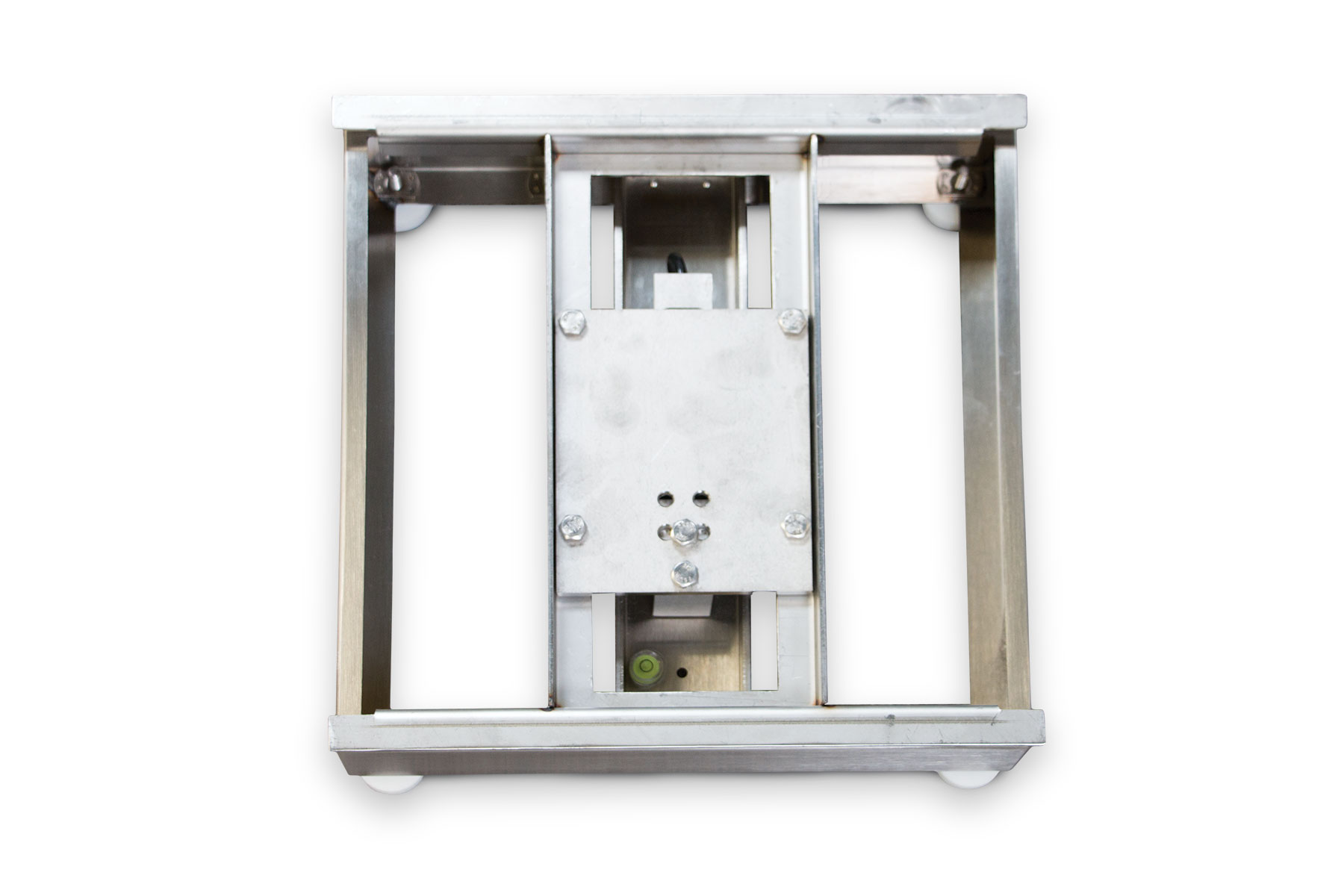

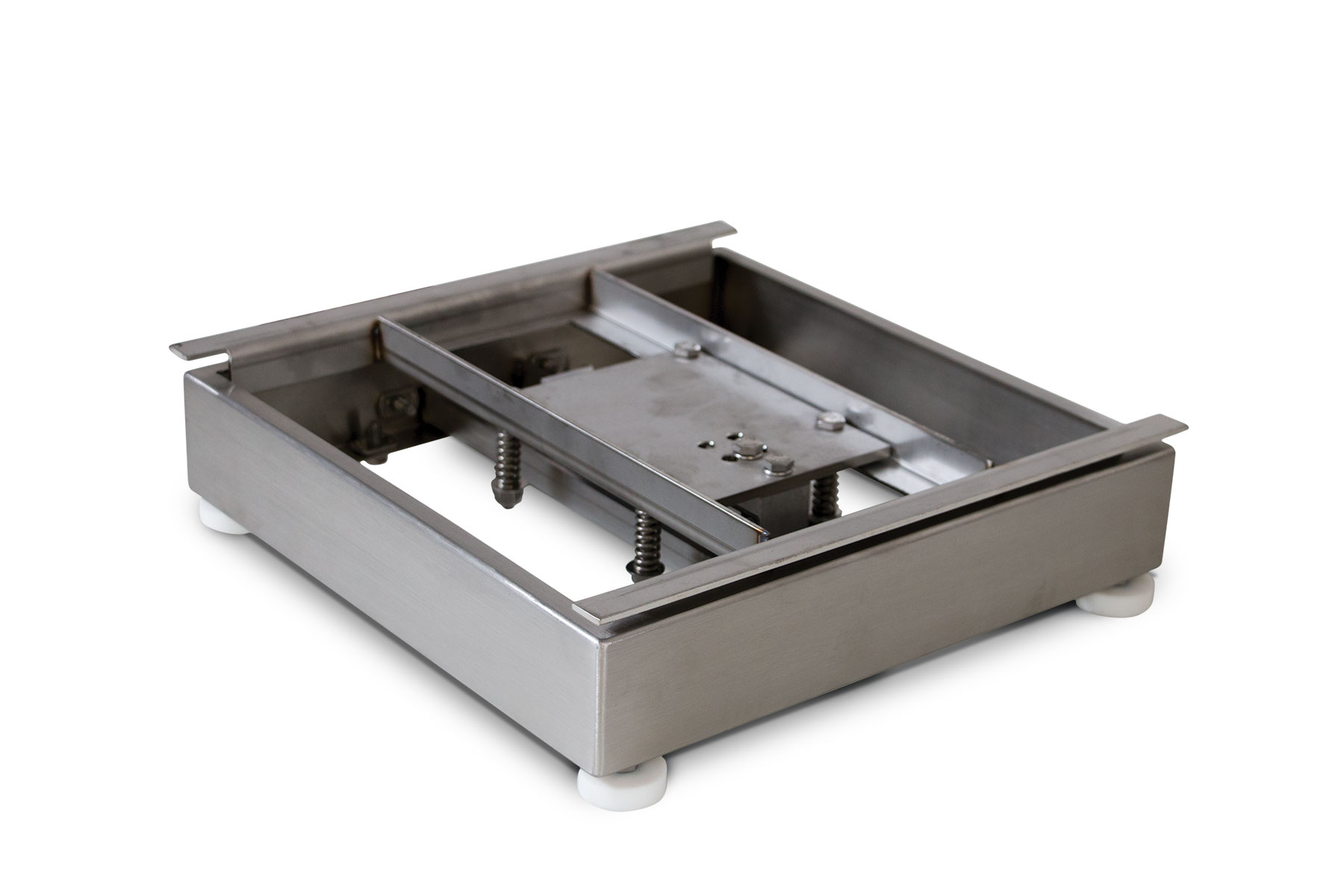

  • LifeGuard™ base design isolates load cell from overloads and shock loads for added durability
  • Specially designed adjustable support feet provide exceptional traction and won’t scratch surfaces
Request More Information

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO Measurementcanada Approved BW LOGO FM Approved

WARNING: Cancer and Reproductive Harm California Proposition 65
CW-80B

Load Cell, NTEP Certified:
IP67 stainless steel and environmentally sealed

Output Impedance:
350 ohm

Maximum Overload:
200%

Overload Protection:
Shock-absorbing spider

Scale Frame:
AISI304L, straight line finish, Ra=45 ± 10

Scale Cover:
AISI304L, straight line finish, Ra=45 ± 10

Cable Length:
10 ft (3 m)

Temperature:
Compensated:
14 °F to 104 °F (-10 °C to 40 °C)

Warranty:
Two-year limited

Approvals:
NTEP 96-107, Class III, 3000 d
Measurement Canada AM-5156
Load cell is FM approved

10 × 10 in
H 3.15 in  W 10.00 in
L 10.00 in W1 10.25 in
L1 10.25 in
12 × 12 in
H 3.25 in W 12.00 in
L 12.00 in W1 12.25 in
L1 12.25 in
Note: 1 in = 25.4 mm

Resources / Downloads

Title Download Email
BenchMark CW-80B Catalog Page Download Email

Title Version Revision Download Email Category Archived
BenchMark SL, SL/HE, CW-80B Technical Manual A Download Email Bench Scales|Platform Scales No

Title Download Email
Bench Scale Questionnaire Download Email

Title Collateral Wizard Request Download Email Category
BenchMark Series Bench Scales Request Download Email Platform Scales|Bench Scales

Title View Download Email Category
Overload Protection with BenchMark Bench Scales View Download Email Bench Scales

Parts

Part # Description List Price Cart / Quote
35075 Bench Scale,CW80B-1 10x10 6lb/3kg 10ft SST

List Price: $865.00
35076 Bench Scale,CW80B-2 10x10 10lb/5kg 10ft SST

List Price: $865.00
35077 Bench Scale,CW80B-3 10x10 15lb/7.5kg 10ft SST

List Price: $865.00
35078 Bench Scale,CW80B-4 10x10 30lb/15kg 10ft SST

List Price: $865.00
35079 Bench Scale,CW80B-5 12x12 30lb/15kg 10ft SST

List Price: $955.00
35080 Bench Scale,CW80B-6 12x12 60lb/30kg 10ft SST

List Price: $955.00

Options

Part # Description List Price Cart / Quote
112044 Column,12 Inch SST Kit OPT Benchmark, Benchmark (SL/HE/HE-X), CW-80B, CW-90B, CW-90XB to IQ+210, CW-90I, CW-90XI, 480/482 Legend Series,680 Synergy Series 380 Synergy Series

List Price: $145.00
112045 Column,18 Inch SST Kit OPT Benchmark, Benchmark (SL/HE/HE-X), CW-80B, CW-90B, CW-90XB to IQ+210, CW-90I, CW-90XI,480/482 Legend Series, 680 Synergy Series 380 Synergy Series

List Price: $195.00
64576 Bracket,Attachment Kit OPT, Benchmark for IQ+210, 480/482 Legend Series, 680 Synergy Series, 380 Synergy Series

List Price: $100.00
22125 LIT,Manual Benchmark Scale

Consult
196363 Column,12 Inch SST Kit OPT Benchmark, Benchmark (SL/HE), CW-80B, CW-90B, CW-90XB to 882IS/882IS PLUS with battery

List Price: $225.00
196364 Column,18 Inch SST Kit OPT Benchmark, Benchmark (SL/HE), CW-80B, CW-90B, CW-90XB to 882IS/882IS PLUS with battery

List Price: $275.00
197482 Column,12 Inch SST Kit OPT Benchmark, Benchmark (SL/HE), CW-80B, CW-90B, CW-90XB to 882IS/882IS PLUS with power supply option (power supply will not be mounted to the column), 880/880 Plus Universal

List Price: $165.00
