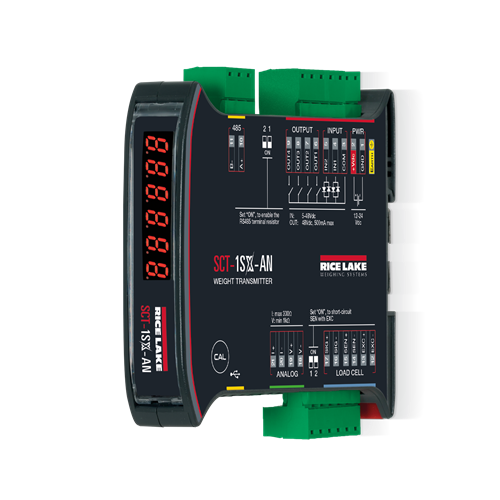

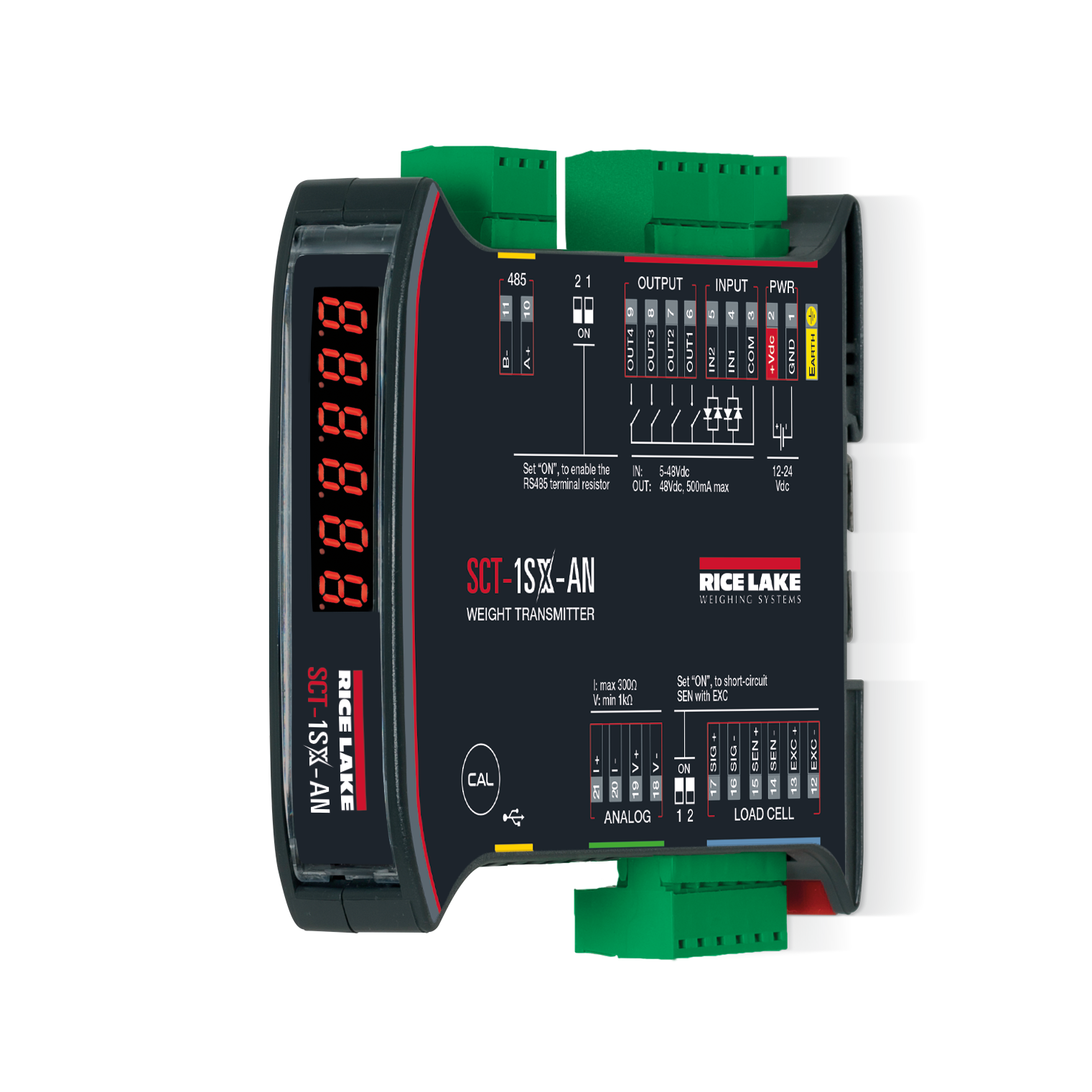

SCT-1SX High-Speed Signal Conditioning Transmitter

  • Load cell status diagnostics
  • USB port for quick programming
  • Integrated fieldbus and web server for configuration, diagnostics and data backup
  • Process up to 4800 weight readings per second. The high speed allows an extremely accurate weight filtering even with weighing being performed in milliseconds.
  • Up to 120 updates per second on Fieldbus
  • New power supply circuit of the load cells (up to 16) for a better weighing stability
  • Power supply circuit with protections against overloads, polarity reversal and short circuits, specific for industrial environments
  • Micro-USB communication port for configuration, diagnostics and data backup is available on all versions
  • Modbus RTU protocol integrated on all versions, up to 110 updates per second
  • Real-time warning of any faults or disconnections of the load cell
  • The integrated web server allows full diagnostics, calibration and remote configuration of the weight transmitter from an Ethernet network
  • Calibration via theoretical (mV/V), with sample weights, Web server or xSpeed software tool
  • Easy configuration with Rice Lake Tools software

Optional xSpeed Software

  • Customization of the weighing filter, to maximize the speed and accuracy in static and dynamic applications
  • Graphical weighing analysis for the identification of mechanical disturbances and vibrations. Oscilloscope function for system diagnostics and filter optimization.

High-performance multifunctional weight transmitter manages up to 4800 readings per second, for weighing with precision in milliseconds. Integrated fieldbus and web server, allow direct reading and diagnostics of the connected weighing system. The wide range of interfaces makes the integration of weighing into any automation system easier and safer.

Power:
12 to 24 VDC, 5 W

Power Consumption:
70 mA min to 100 mA max

Excitation Voltage:
5V, 120 mA, 16 × 350 ohm load cells

Analog Signal Input Range:
±39 mV

Analog Signal Sensitivity:
High resolution 0.01 µV/d
Legal for trade 0.3 µV/e

A/D Sample Rate:
Up to 4800 Hz

Resolution:
Internal: 1,500,000 counts
Display: 800,000
Legal for Trade divisions
Up to 10,000 e or multi-field 2 × 3,000e

Digital I/O:
Two inputs, configurable: 12 to 24 VDC
Four outputs, configurable: 150 mA 48 VAC/150 mA 60 VDC

Communication Ports:
(1) RS-485, (1) RS-232
1 micro-USB port (device)
Serial port update rate: up to 1600 Hz
Fieldbus update rate: up to 120 Hz

Analog Output (if equipped):
Opto. isolated, 16-bit
0 to 20 mA, 4 to 20 mA (maximum 350 ohm)
0 to 5 VDC, 0 to 10 VDC (minimum 10,000 ohm)

Annunciators:
Net, center of zero, stability

Display:
Six-digit (8 mm), red LED

Keys/Buttons:
Five key, membrane panel
zero (down), tare (up), mode (right), print (enter), C (on/off)

Dimensions:
(L × W × H)
4.72 x 0.9 x 4.0 in
(120 x 23 x 112 mm)

Temperature:
Certified: 14 °F to 104 °F (-10 °C to 40 °C)
Operating: -4 °F to 140 °F (-20 °C to 60 °C)

Humidity:
85% non-condensing

Rating/Material:
Enclosure: ABS plastic

Warranty:
One-year limited

Approvals:
CE-M EN 45501
2014/30/EU EMC
2014/35/EU LVD
2011/65/EU RoHS
OIML R61 - MID
OIML R76



Resources / Downloads

Title Download Email
SCT-1SX High Speed Transmitter Catalog Page Download Email

Title Size Download Email Category
Profinet GSDML File for SCT-2200, SCT-1SX, and SCT-4X 2.9 KB Download Email Indicators / Controllers
EtherNet/IP file (EDS) for SCT-2200, SCT-1SX, and SCT-4X 5.5 KB Download Email Indicators / Controllers

Title Version Revision Download Email Category Archived
SCT-1SX Fieldbus Protocol Manual A Download Email Indicators / Controllers|Weight Indicators|Indicator Hardware No
SCT-1SX-AN Modbus Protocol Manual A Download Email Indicator Hardware|Indicators / Controllers|Weight Indicators No
SCT-1SX Operation Manual A Download Email Indicator Hardware|Indicators / Controllers|Weight Indicators No
SCT-1SX Webserver Manual B Download Email Indicator Hardware|Indicators / Controllers|Weight Indicators No
SCT-1SX-PROFINET Quick Start Guide A Download Email Indicator Hardware|Indicator Software|Weight Indicators No
SCT-1SX-AN Quick Start Guide A Download Email Indicator Hardware|Indicators / Controllers|Weight Indicators No
SCT-1SX-Ethernet/IP Quick Start Guide A Download Email Indicator Hardware|Indicators / Controllers|Weight Indicators No
SCT-1SX-MODBUS TCP/IP Quick Start Guide A Download Email Indicator Hardware|Weight Indicators|Indicators / Controllers No
Rice Lake Tools Quick Setup Guide A Download Email Indicators / Controllers|Weight Indicators|Indicator Software No

Title Collateral Wizard Request Download Email Category
SCT-4X and SCT-1SX Request Download Email Indicators / Controllers

Title Version Size Release Date Download Email
XSpeed Oscilloscope Filtering Program 1.16.00 5.7 MB 12/01/2023 Download Email
Rice Lake Tools 4.23.20 66.2 MB 04/24/2024 Download Email

Parts

Part # Description List Price Cart / Quote
216820 Indicator,SCT-1SX-AN Weight transmitter on DIN rail, with 2 INPUT, 4 OUTPUT and analog output. Fitted with 5-key keypad and LED display.

List Price: $895.00

216822 Fieldbus,SCT-1SX-E/IP Weight transmitter on DIN rail, with 2 IN, 4 OUT and EtherNet/IP port.EtherNet/IP. Fitted with 5-key keypad and LED display. Integrated web server

List Price: $1,295.00

216821 Fieldbus,SCT-1SX-PRONET Weight transmitter on DIN rail, with 2 IN, 4 OUT and PROFINET port. Fitted with 5-key keypad and LED display. Integrated web server

List Price: $1,095.00

216823 Fieldbus,SCT-1SX-MODTCP Weight transmitter on DIN rail, with 2 IN, 4 OUT and Modbus/TCP port. Fitted with 5-key keypad and LED display. Integrated web server.

List Price: $1,295.00

Options

Part # Description List Price Cart / Quote
88792 Power Supply,IDEC 12VDC DIN Rail Mount, 1.3 Amp, Input: 85 to 264 VAC, 100 to 370 VDC 15W

List Price: $140.00

119244 Power Supply,24VDC 1.3A Din Mount Input 90 to 264VAC,120 to 370VDC, UL E135494

List Price: $160.00

Consult Alibi Memory for type-approved communication to PC/PLC (fiscal memory, max 120,000 weighs) built-in real time clock to print the date/time with PCB, screw terminal, plastic box

Consult

Consult Real time clock for printing/displaying of date and time
