SCT-2200 Signal Conditioning Transmitter

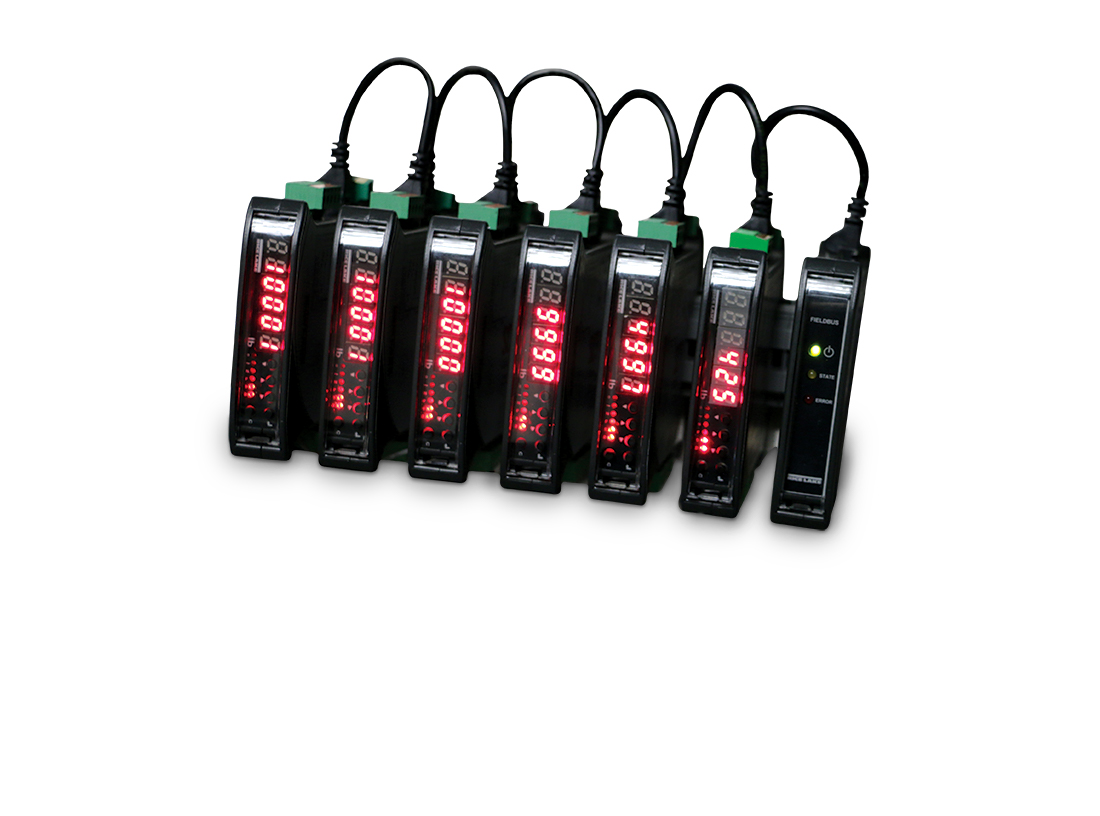

  • HUB mode connects up to 16 transmitters to one fieldbus

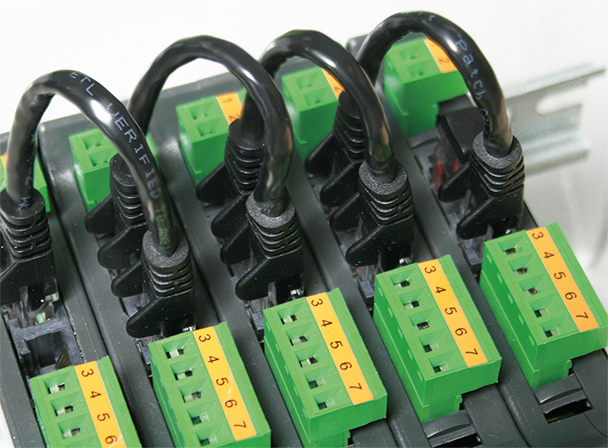

  • Two RS-485 port for "daisy-chain" network connection
  • Quick menu for real and theoretical calibration
  • Remote access through web browser for weight monitoring and calibration over EtherNet/IP, Profinet and Modbus TCP network
  • Red LED display
  • DIN rail mountable
  • Calibration using linearization points
  • Reading of the net, gross and tare weights, clearing, semi-automatic and presettable tare setting of outputs application thresholds
  • Diagnostic information via serial port, message display, printing, simulation of key pressure, Modbus RTU or ASCII protocol
  • Printer management on second serial port available
  • Multi-range function allows for subdividing the scale capacity in two, each up to 3,000 divisions
  • Easy configuration with Rice Lake Tools software
Request More Information

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO Measurementcanada Approved BW OIML Logo CE Mark UKCA Black Fill UL_Listed_C-US

WARNING: Cancer and Reproductive Harm California Proposition 65
RL-SCT-2200-signal-transmitter

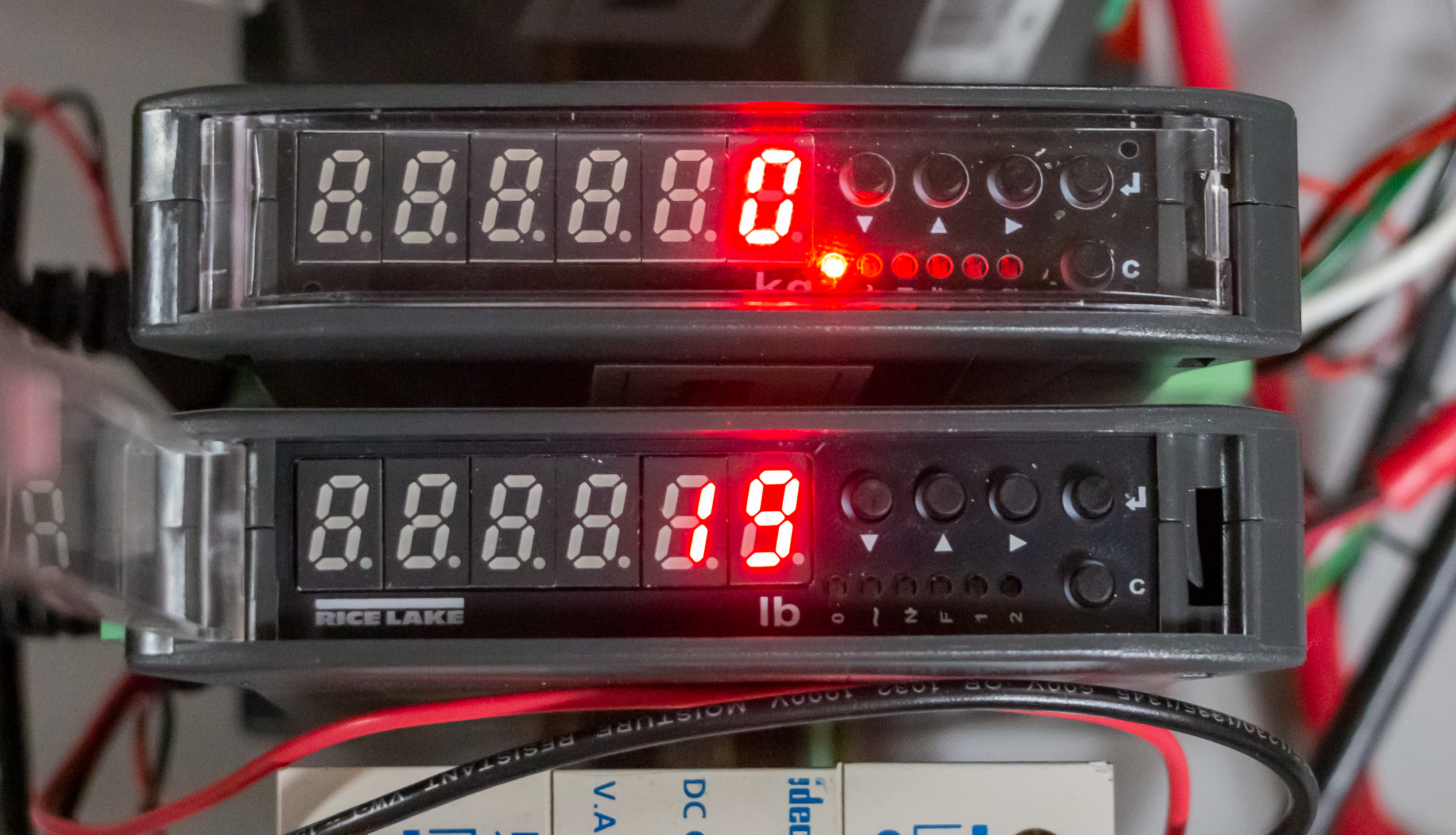

CONTROL IN MINIATURE

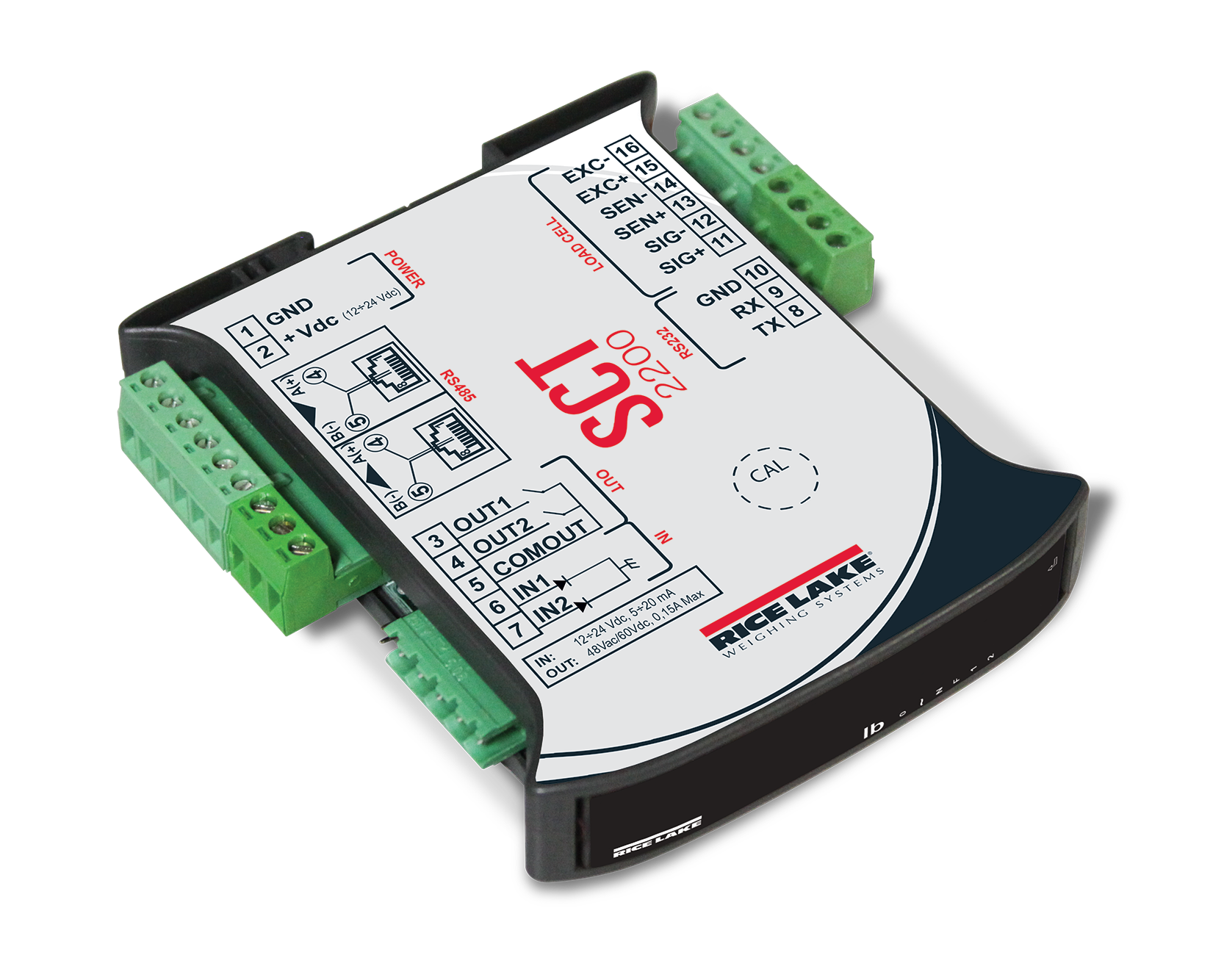

For PLC systems that require weight data from a scale, Rice Lake’s compact SCT transmitters deliver equivalent signal-conditioning function without the cost or bulk of a full size weight indicator/controller. Rice Lake's SCT-2200 is DIN Rail mountable within a cabinet or control panel, where it converts a scale’s load cell signals to analog output, serial output, or a specific network protocol. Unlike many other signal transmitters, the SCT-2200 has its own 0.3 inch weight display, with annunciators for unit and weighing status, and push buttons for zero, tare and setpoint entry, simplifying scale setup, calibration and operation.

BUILT-IN WEB SERVER

For remote access and touch-free control, simply use a web browser on a PC or mobile device connected to the same network as the SCT-2200. Monitor weight data and perform calibrations without being in the same physical location or pressing any buttons on the SCT-2200 itself for added convenience and safety.

Power:
12/24 VDC

Power Consumption:
70 mA min to 100 mA max

Excitation Voltage:
5 VDC, 120 mA, 8 × 350 ohm load cells

Analog Signal Input Range:
± 39 mV

Analog Signal Sensitivity:
0.3 μV/graduation minimum

A/D Sample Rate:
One channel A/D 24-bit sigma-delta conversion, up to 200 conv/sec. auto select

Resolution:
Internal: 1,500,000 counts
Display: 800,000

Digital I/O:
Two inputs: 12/24 VDC
Two outputs: 150 mA 48 VAC/150 mA 60 VDC

Communication Ports:
(1) RS-485, (1) RS-232
Analog output (if equipped):
Opt isolated, 16-bit
0-20mA, 4-20mA (Maximum 350 ohm)
0-5VDC, 0-10VDC (Minimum 10,000 ohm)

Annunciators:
Net, center of zero, stability

Display:
Six-digit 0.31 in (8 mm), red LED

Keys/Buttons:
Five key, tactile feel
Zero (Down), Tare (Up), Mode (Right), Print (Enter), C (On/Off)

Dimensions:
(L × H × D)
4.72 × 4.52 × 0.98 in
(120 × 115 × 25 mm)

Temperature:
Certified: 14 °F to 104 °F (-10 °C to 40 °C)
Operating: 14 °F to 122 °F (-10 °C to 50 °C)

Humidity:
85% non-condensing

Rating/Material:
NEMA Type 1 plastic pluggable connectors

Weight:
1 lb (0.5 kg)

Warranty:
One-year limited

Approvals:
NTEP 20-046
Measurement Canada AM-6165C
OIML R76/2006-A-GB1-19.17
UKCA Marked
cULus Listed

Resources/Downloads

Parts

Transmitters

Part # Description List Price Cart/Quote
202103
Indicator,SCT2200 12-24VDC,and RS485/232 Serial Port, DIN Mount, Regulatory Modes.

List Price: $355.00
202104
Indicator,SCT2200-AN Analog Output, 12-24VDC, and RS485/232 Serial Port DIN Mount Regulatory Modes.

List Price: $485.00

Fieldbus

Options

Part # Description List Price Cart/Quote
88792 Power Supply,IDEC 12VDC DIN Rail Mount, 1.3 Amp, Input: 85 to 264 VAC, 100 to 370 VDC 15W

List Price: $140.00
119244 Power Supply,24VDC 1.3A Din Mount Input 90 to 264VAC,120 to 370VDC, UL E135494

List Price: $160.00

Related Products

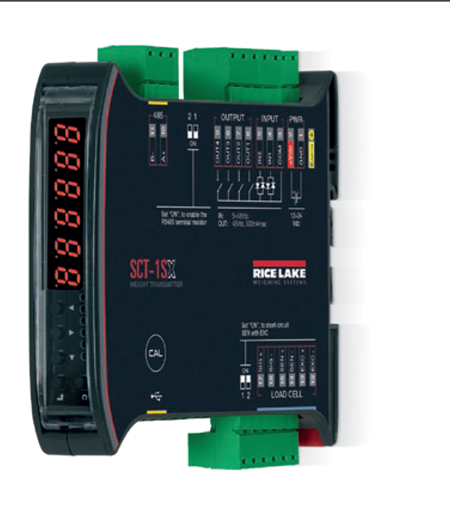

Tn SCT 1SX High Speed Weight Transmitted Integrated Fieldbus+Webserver

SCT-1SX High-Speed Signal Conditioning Transmitter

High-performance multifunctional weight transmitter manages up to 4800 readings per second, for weighing with precision in milliseconds. Integrated fieldbus and web server, allow direct reading and diagnostics of the connected weighing system. The wide range of interfaces makes the integration of weighing into any automation system easier and safer.

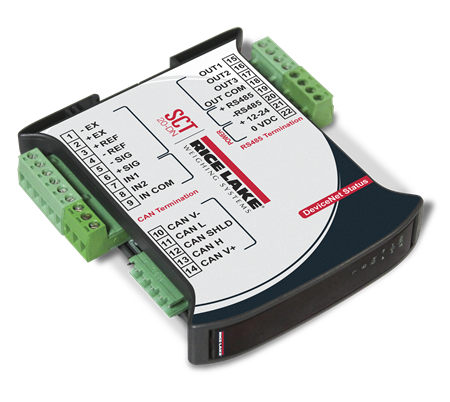

rl-sct-20-transmitter
