SURVIVOR® Advantage Series IM-Axle, In-motion Axle Scale

  • Weigh vehicles in motion up to 4 mph
  • Complete system composed of a weighbridge, 1280 Enterprise weight indicator with in-motion software, speed sensor and LaserLight2™ remote display
  • Software records axle weights and gross weight per truck ID
  • Concrete deck
  • 11.2 in profile, pit mounted
Request More Information

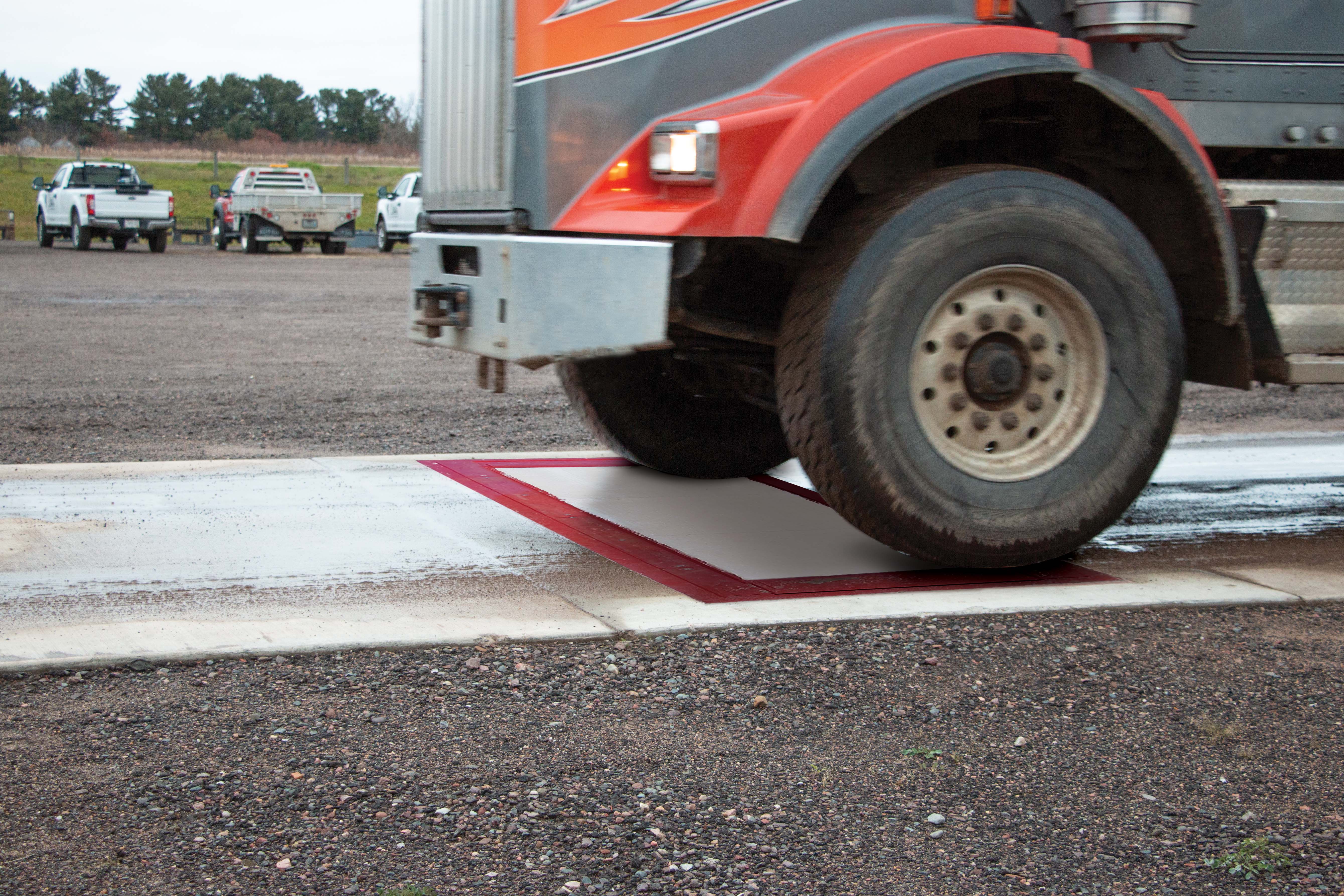

1 US Axlescale Application Close Up

Simplify Inventory Tracking

Keep trucks moving with an in-motion axle scale to ensure load compliance and streamline inventory tracking. The IM-Axle in-motion axle scale is a non-Legal for Trade solution for inventory tracking in a variety of industries from agriculture to forestry and everything in between.

Trucks drive over the in-motion axle scale at up to 4 mph, and axle weights are captured and totalized with 1% total error.

The IM-Axle System

The IM-Axle scale's weighbridge is 120 inches wide and 30 inches long, constructed with SURVIVOR durability for reliable performance in the most demanding conditions. The weighbridge is installed in a shallow pit with a 50-foot approach on each side and a speed sensor to help ensure weight is captured to the greatest accuracy.

The weighbridge is paired with the 1280 Enterprise™ Series indicator with software designed specifically for in-motion axle weighing. This program will record individual axle weights and automatically total the weights for individual truck IDs. Weights are then displayed on a LaserLight2 remote display for clear communication to drivers. An optional printer can be installed to print tickets.



Size:
 120 × 30 × 11.25 in

Estimated Weight:
2,850 lb (without concrete deck)

Load Cells:
 Flintec RC3 Stainless Steel, Rocker Column, 22.5 t load rating

Accuracy:
< 1% error at 4 mph

Full Scale Capacity:
 70,000 lb

Warranty:
2 years

Material Requirements
Rebar Schedule
Letter Quantity Length (ft-in) Description Weight (lb)

A

 26 50 ft 4 in #5 @ 12 O.C. 1,365
B 200 12 ft 0 in #5 @ 12 O.C. 2,503
C 12 12 ft 0 in #5 @ 4 O.C. 150
D 12 5 ft 8 in #5 @ 4 O.C. 71
E 26 50 ft 4 in #5 as shown. 1,365
Total Weight of Rebar (lb) 5,454
Total Length of Rebar (ft) 5,229



Concrete Schedule
Volume (cubic yards)
Approaches 46.3
Scale Cavity (approx.) 4.8
Total 51.0



Misc. Steel
Approach Coping 3 in × 3 in × 1/4 in  26 ln ft  127 lb
*Based on 50 ft approach on each side.
Approaches are adjusted based on the longest truck that will cross the scale.
