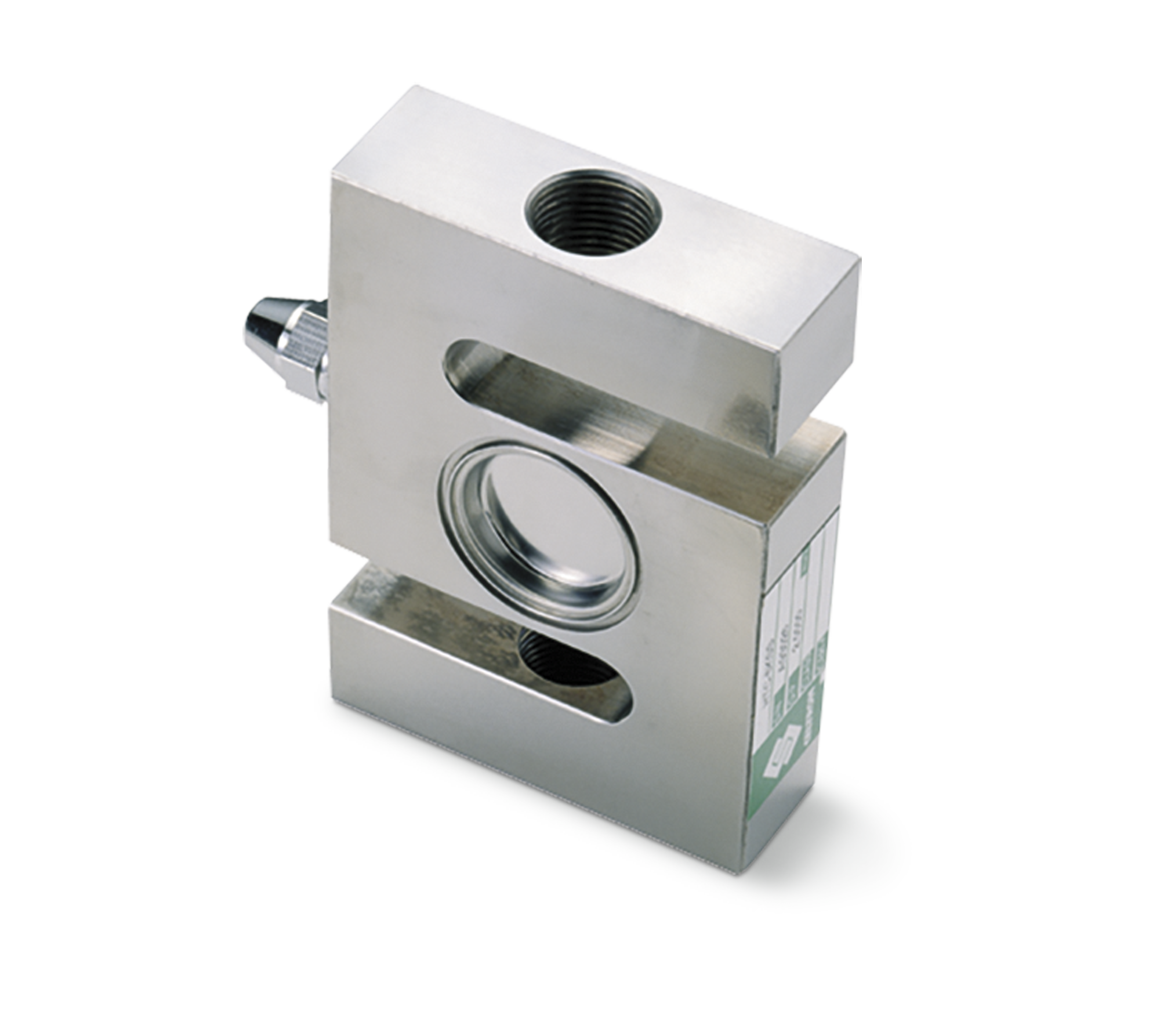

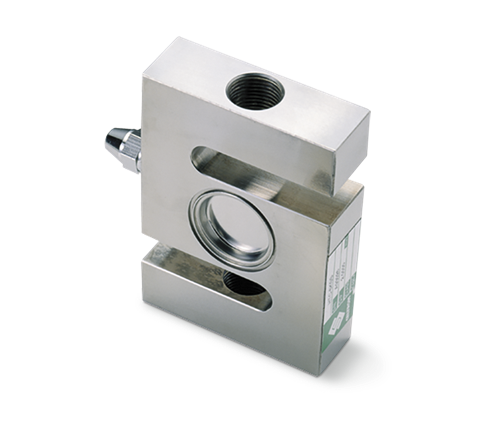

VPG® Celtron® STC-HSS Stainless Steel, S-Beam Load Cell

Features upgraded protection to the standard environmentally sealed S-beam. Ideal for dry, dirty suspended tank, hopper and mechanical replacement applications. Provides a mid-range solution. Available in capacities ranging from 500 lb to 10,000 lb. Each unit includes 20 ft of standard load cell cable.

Request More Information
rl-VPG-Celtron-STC-HSS-S-Beam-load-cell

Full Scale Output:
2.0 mV/V

Output Resistance:
350 (± 3) ohm

Input Resistance:
385 (± 5) ohm

Material/Finish:
Stainless steel

Temperature:
Operating range
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Welded-seal, IP67

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.05%

Insulation Resistance:
5,000 megohm

Cable Length:
20 ft

Cable Diameter:
0.200 in
Polyurethane jacket

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

Warranty:
One-year limited

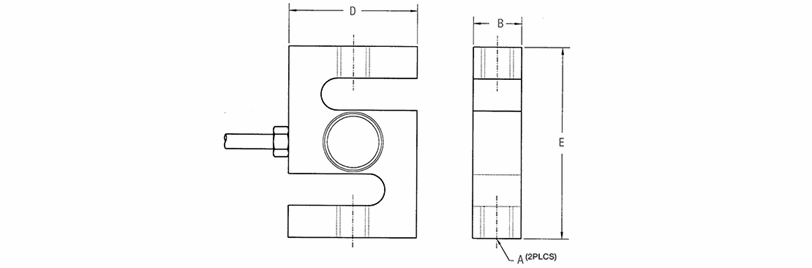

Rated Capacity A B D E
lb/in
500 to 3,000 1/2-20 UNF 1.00 2.00 2.97
5,000 to 10,000 3/4-16 UNF 1.00 3.00 4.25





Resources / Downloads

Title Download Email
Celtron STC HSS Load Cell Catalog Page Download Email

Title Version Revision Download Email Category Archived
Load Cell and Weigh Module Handbook D Download Email Load Cells|Weigh Modules No

Title Collateral Wizard Request Download Email Category
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules

Title Download Email Category
Choosing Load Cells for Tough Applications Download Email Load Cells

Parts

Part # Description List Price Cart
69326 Load Cell,SBM STC-500HSS 500lb Celtron 20ft 2mV/V 350 OHM WW SST WS IP67

List Price: $493.00
69327 Load Cell,SBM STC-750HSS 750lb Celtron 20ft 2mV/V 350 OHM WW SST WS IP67

List Price: $493.00
69328 Load Cell,SBM STC-1KHSS 1,000lb Celtron 20ft 2mV/V 350 OHM WW SST HD IP67

List Price: $493.00
69329 Load Cell,SBM STC-1.5KHSS 1,500lb Celtron 20ft 2mV/V 350 OHM WW SST WS IP67

List Price: $493.00
69330 Load Cell,SBM STC-2KHSS 2,000lb Celtron 20ft 2mV/V 350 OHM WW SST WS IP67

List Price: $493.00
69331 Load Cell,SBM STC-2.5KHSS 2,500lb Celtron 20ft 2mV/V 350 OHM WW SST WS IP67

List Price: $493.00
69332 Load Cell,SBM STC-3KHSS 3,000lb Celtron 20ft 2mV/V 350 OHM WW SST WS IP67

List Price: $525.00
69333 Load Cell,SBM STC-5KHSS 5,000lb Celtron 20ft 2mV/V 350 OHM WW SST WS IP67

List Price: $736.00
69334 Load Cell,SBM STC-10KHSS 10,000lb Celtron 20ft 2mV/V 350 OHM WW SST WS IP67

List Price: $736.00
